Ahoysandy

hey mate, just wondering if the shocks are still available for purchase? if so, would they be suitable for the 30mm lowering king springs? let me know if it's best to give you a call. cheers, Sandy.

Thanks for your interest guys! I guess i got a little too caught up on where the mounting points of the harness should be (as i originally had them on top of the strut tower.no good at all.) that i overlooked the structual integrity of what i was mounting it too. none the less, the bar makes for good rear chassis stiffening and there's no way i was going to use it for any track events. lets be real, I made it myself... being a creative arts student (lol). It's also too impractical to be using a harness daily in the car haha so really just for a show thing. On a lighter note, i used a cutting compound and then a polish on the paint and damn! the clear coat came up amazing!!

The red on this Z is an amazing colour!! got some awesome parts you've put in to the car as well! nicely done

If anyone is interested, I did end up taking an engine over to james at MIA and he's currently conducting a full rebuild on it for me. the full thread of my build is over here; http://www.viczcar.com/forum/topic/15357-76-260z-ratsun/?p=183874 will be posting up on here more instead

cool to see the second harness in with the mounting bar here's a wide shot of the bar we made up between the strut towers Did the car in primer here first. Mind you, there is minimal body/panel work and prep done on this job so i wasnt expecting anything spectacular as an outcome, particularly using rattle cans! Came out looking good in the photos though when i edit the shots from my camera, i will post these too. The paint has these small cracks all over it with isnt perfect and are quite noticeable up close, but i think it kind of suits the age of the car. I do still have the opportunity to sand things back and go for the 'patina paint job' i had in mind.

So a few things happened over the past weeks! I looked a little deeper in to the whole 'patina paint job' idea and decided that would be something i'd like to have a go at, besides there's not much I can do to make the current paint worse! So I did some sanding of the body and got out most of the old paint imperfections and flaking, layed down 2-3 coats of grey primer and I'm currently in the process of the base 'safari gold 920' coats I decided to go with instead of the metallic gold. Couple of reasons behind this. You can't beat factory colours, and with the engine bay and new engine cleaned up, the exterior I felt needed some continuity. I have a friend that works at a parts store so he was able to source the factory colour match 920 for a quarter of the retail price (y) ! Still waiting for the carburettors to arrive but the engine build is moving along nicely and I got word back saying the engine I sent off was in pretty good nick this time around I also felt the need to buy race car parts due to the lack of movement on the project for a few weeks, so I picked up a second (passenger) Takata harnes whilst also, with my mate, fabricated the strut/harness bar I've mentioned earlier. This mounts underneath the exiting seat belt retractors. I will upload some photos of progress when I get home this evening but it won't let me do it off my phone for now. Admins maybe mobile friendly image uploading would be awesome?? )

fingers crossed my datsun will be running this time! sunday morning mid-late Oct' sounds a go to me

Are you still looking to RB swap this beast?

Thanks Peter! Having a little common sense and a few mates that know something about what I'm doing has helped me a lot! Someone did mention this when i was doing the patch work with primer to begin with and how i should get a sealing primer too? Anyhow, i think we're going to go with what's mention below! This is just the inspiration i needed for the look im after!! I will have to PM Ledges soon to see how things went down. seem relatively simple, but i would like my base coat to be the 920 safari gold they came with rather than the metallic one it currently has. thanks for the pic Scotty! there is clearly a lot of fabrication work that has gone it to that. it looks fantastic! i was thinking of taking a path that was a lot more simple and very basic in terms of being able to put it together. I did however go to bunning to buy a very expensive holesaw drill bit to take out the center of the strut tower hole in the plate. ended up returning the bit as it didn't do the job and bunnings didn't ask a single question either about it being used! i found that to be odd from a companies perspective. cheers Jeff, they're a real show stopper, everyone who sees the car comments on the tyres lol

hey guys! My name's Sandy, I've been on the forums for quite some time and have been in contact with a number of members who have been able to help me out as well as guide me in the right direction. To these guys I am very thankful! But I have not yet talked of the Zed i own and am currently working on. In mid 2015 i began searching for a car that was a little more fun to drive as well as more appealing than my (still current) toyota echo. By the time november came around, I had in my possession a 1976 Datsun 260z that was in dire need of a little TLC. I will include a few snaps i took when inspected. This is my first interaction with these cars, dad is an MG guy and the extent of mechanical knowledge I had was no where beyond swapping out struts for bolt in coilovers. Despite my mates saying that this is a huge project (both of these guys had restored pre-1975 cars), and dad knowing as much as i know about engines, I was hooked on the idea of a classic car and building it up from scratch. So a week later, me and my best friend (he owned a ke55 coupe) drove to pick up this datsun for $4,200 and trailer it back. (looking back it was a bloody good deal on one of these cars even though i was told thats crazy for the condition). The first thing I got to work on was getting the engine in running condition again. The guy i bought it off said it was running when parked (last registered over 10 years ago but looked like it had been used as a paddock basher from the amount of dirt on the underside) so we chucked a battery in and got stuck in to checking for fuel, spark and any leaks. We found the only issue to the initial engine was the timing was 180 degrees out! She ran well up until the first week i had it registered but we'll get to this part later! After i was able to get her to move under her own power, the next and in my opinion, one of the most important aspects of safety was the brakes. I wasn't going to skimp here and nor did i know anything about how the hydraulic systems worked. So i took it on up to my local brake and clutch who i have since become pretty known to and had him inspect the rusty rotors and seized cylinders (yes this was the issue). We didn't end up actually doing any work and i took it home the same day, reason being, was as soon he got up on the hoist, these was a significant amount of rust that i had failed to spot. all through the chassis rails and floor pans. so instead, George (the brake and clutch guy) gave me the contact of another local fabricator who would be able to fix this up for me. It wasn't until mid March 2016 that the car would actually go in for these repairs... In the time between late 2015 and April 2016, The car sat in the garage where I was able tinker with wiring that was not correctly hooked up or not working, replace required parts and even got a hand on some small panel work, pulling out the small dent in the rear lower where the bumper had been nudged in. This period of time also included some preventative maintenance like replacing fuel hoses, filters and a bigger radiator. I was also able to save up a little extra and get my hands on some nice classic SSR XR4 longchamps from japan and had them wrapped in Toyo R888's! Speaking with the guy who was doing the rust repairs (his brother is apparently a huge datsun guy as well as himself preferring classics) was a huge help in getting the car toward passing registration. He basically swapped out the whole fiberglass front end i had purchased as well as working on all the structural rust repairs required. When he was finished work on it, he essentially said that he'd gotten to understand how the car was in condition and said he could take it for rego, so off it went. I was so excited as it was my birthday 2 days after this and i'd be getting my license back within 5 days also. But i was devastated when it came back that afternoon and had failed... cracked tyres and a parker bulb was out. to be fair i hadn't changed my new ones on yet and i think the bulb might've gone when he was swapping the front end. So this was an easy fix! i essentially brought my jack, wheels and tyres and a new bulb from bunnings down to his shop and changed them in front of him. He was Happy! It had passed!! I was over the moon, my plates i had ordered for it already had arrived, the RMS were happy with all the documentation i had brought along and she was road worthy 3 days before my birthday! I was driving it every second day after this. Had put a solid night or two in to upgrading the audio system as well as routing all the wiring for this. Not taking in to consideration the fact that it is an old car and i wasn't quite taking note of how i should be inspecting it frequently in every other mechanical area. I must've been too busy enjoying it? Turns out those gauges that i was fixing the wiring on actually work and low and behold, the engine ran dry of oil and she seized up completely on the highway back from university in wollongong one afternoon... on later inspection by James Flett at MIA. She's a goner, and for the price of L series engines, not worth the $$ considering it wasn't numbers matching either. So this leads me to the next period of time that is was on the road! I had been contacted by Geoff, a local to me, who kindly helped me out selling his old L24 and has since been of great assistance across many of the problems i've stumbled upon. it was this swap that i though would be a simple weekend, old one out. New one in, but it didn't quite work like that. It took about a month and a half for it to be back running and in full action. The problems being, there was a fuel pressure leak, causing the engine to fire but not run. I hacksawed the exhaust off the headers so that i could remove them from the engine bay, there was a MASSIVE oil leak from the rocker cover. I'm talking 4 liters a week of semi-daily driving and two gaskets later aannnddd little did i know, but the trans is a 5speed out of something else too, and i had ordered the wrong sized pressure plate and couldn't figure out the geometry of the clutch slave/fork/pressure plate so off the george at the clutch shop again it was where it had a new Exedy HD clutch put in! after that it was a quick pit stop at Kirrawee Mufflers to have a new 2.5" headers back exhaust (with flange) made up. now, The guy who did my rust repairs is the brother of one of the guys at kirrawee mufflers!. I can't remember which, but that was a funny connection! After this i drove her for another month to two, slowing fixing things like alternator tensioning, squeaky water pump belts and that oil leak! during this time, as one would expect with an exhaust this loud, i had number of run ins with the police. including one where i was driving without lights on as my alternator was loose and she wouldn't run right with them on, it was completely puking oil and coolant all through the engine bay and it was about 2 am on my way home. I should not have been driving it but heck it was fun! At one point, it was quite a nice day out, and i had just shifted jobs to one that allowed me to have the day on weekends off occasionally. A couple of mates with subarus were heading down through the national park toward mac pass so i decided to take the Ratsun along too. Again. The gauges work and the temp gauge was sitting way too high. It soon begins to show the symptoms of a blown head gasket and/or cracked block so it was back to the drawing board after parking it in the garage that afternoon. Unsure as to what path i should take now with my engine I contemplated and considered what options i had regarding swapping, fixing and building. Do i try and swap the head gasket in hope it was only that? I could pick up a straight swap RB30 package from a smashed datsun for sale for $3k and get myself some spares too. Or i could source another L26 to rebuild completely and plonk back in it. This is the pretty much point that we're at currently up to in the build! I ruled out any possibility of RB swapping the car for so many reasons inc. engineering, P plate legality and not to mention the incredible sound of triple carbs from these cars. Trying to replace a head gasket May or may not fix the issue and even still there is potential for more issues to arise with an engine this old. I chose the find another running L26 (actually from the other 'RAT50N' in sydney!) and send this off to James and MIA to be rebuilt from the ground up. This gives me the certainty of an engine without failure due to its age and i get to hot it up a bit too initially i was going to stick with a completely stock engine build. I feel as though the car was designed and build for an L26 so it should somewhat stay with this power plant. But after talking to a few members, other people who know a thing or two about engines and james himself, i was advised that by bolting triple webers on the side of a factory engine, there wouldn't be much positive outcome without some engine head work and/or cam. So the engine that's being built at the moment with have a few little pieces of fruit in it that i'm not 100% certain on what that is yet. i do already have a 280zx electronic dizzy and alternator. Yes i did order a New set of Triple 45mm webers, linkage kit and manifold but have been waiting 3 or so weeks for the redline manifold which has been on back order I think the 45's will pair nicely with the 2.5" exhaust and HD clutch, as well as a few of the compression internals from the rebuilt engine! (I resprayed an old rocker cover wrinkle coat red today because red things go faster) In the 2 month period it has been off the road, i took some time to tidy it up a little, painting the engine bay in hammertone charcoal, fitting new electronic gauges in the 3 center pieces as well as their sending unit + relocating my fuel gauge so i still have one!, and installing an OEM electronic fuel pump in the rear next to the tank. I'm still slowly working on little issues and projects within it, for example, im trying to fabricate a rear strut bar that i can connect my harness to but its still in early fabrication and needs some design altering. I really am now just waiting on parts to be ready to install! i thought about sanding all of my paint back and doing more body work at the same time as spraying the whole thing in primer. something like this ; thoughts? I'll be posting on this forum more as i progress and things move along as they have been so keep posted!! Cheers, Sandy P.S. I have an instagram account that i post regular pictures on about what i'm doing and the mods http://www.instagram.com/thegoldenturd Shoutout to Geoff and Cozza for making me feel welcome to owning a datsun and helping out when need be!

excited to see the build on these!! good luck dude, you'll find ample amounts of info on here. i know i have thats for sure! plus everyone i've been in contact with from on here is super awesome and loves helping out )

I did a section on my 260 loom, just used Bunnings electrical tape! Works well but not sure how long this will last

good luck on this one mate! I purchased mine in a similar state, and went straight toward working on a roadworthy. My advice is expect to turn every bolt, even if you don't plan a FULL restoration, it will ultimately happen. I've had my car registered for about 6 months and this is now the 3rd motor it will have had in that time (finally decided to rebuild one properly). Initially, i dropped around 8k to fix the essential to pass a RWC, that was including things like rust repairs, brake work, tyres, exhaust, rego costs and general fixing up and a bit of love EVERY DAY. It will consume you and your bank account, but it's a heck of a load of fun

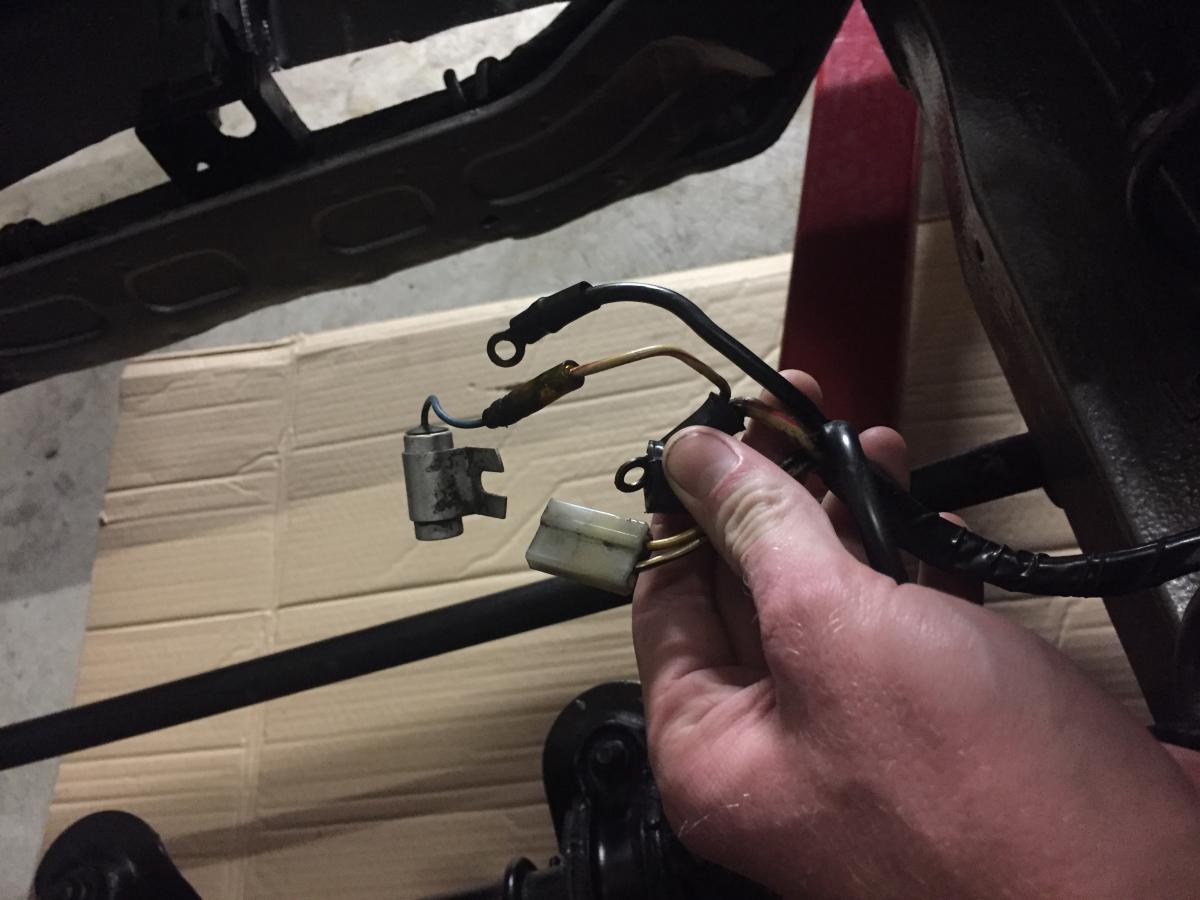

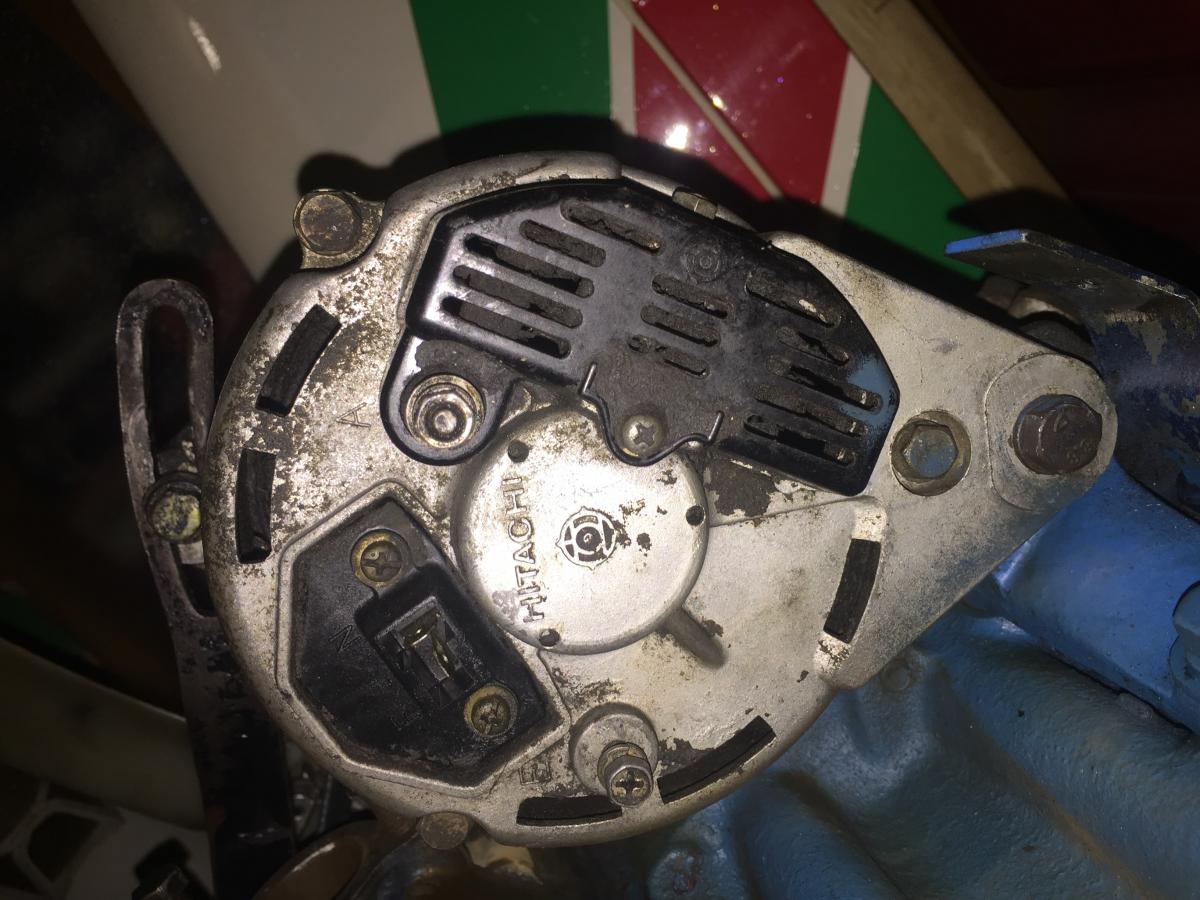

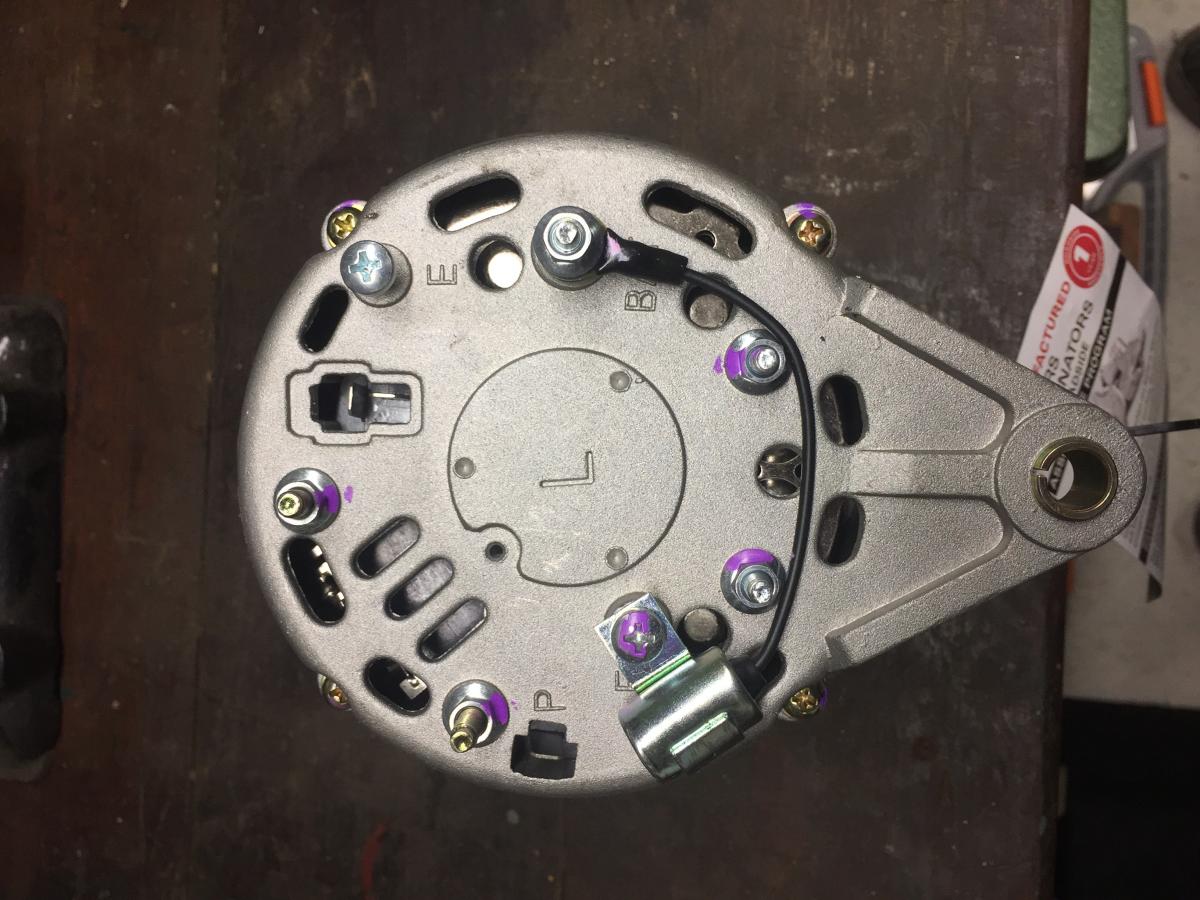

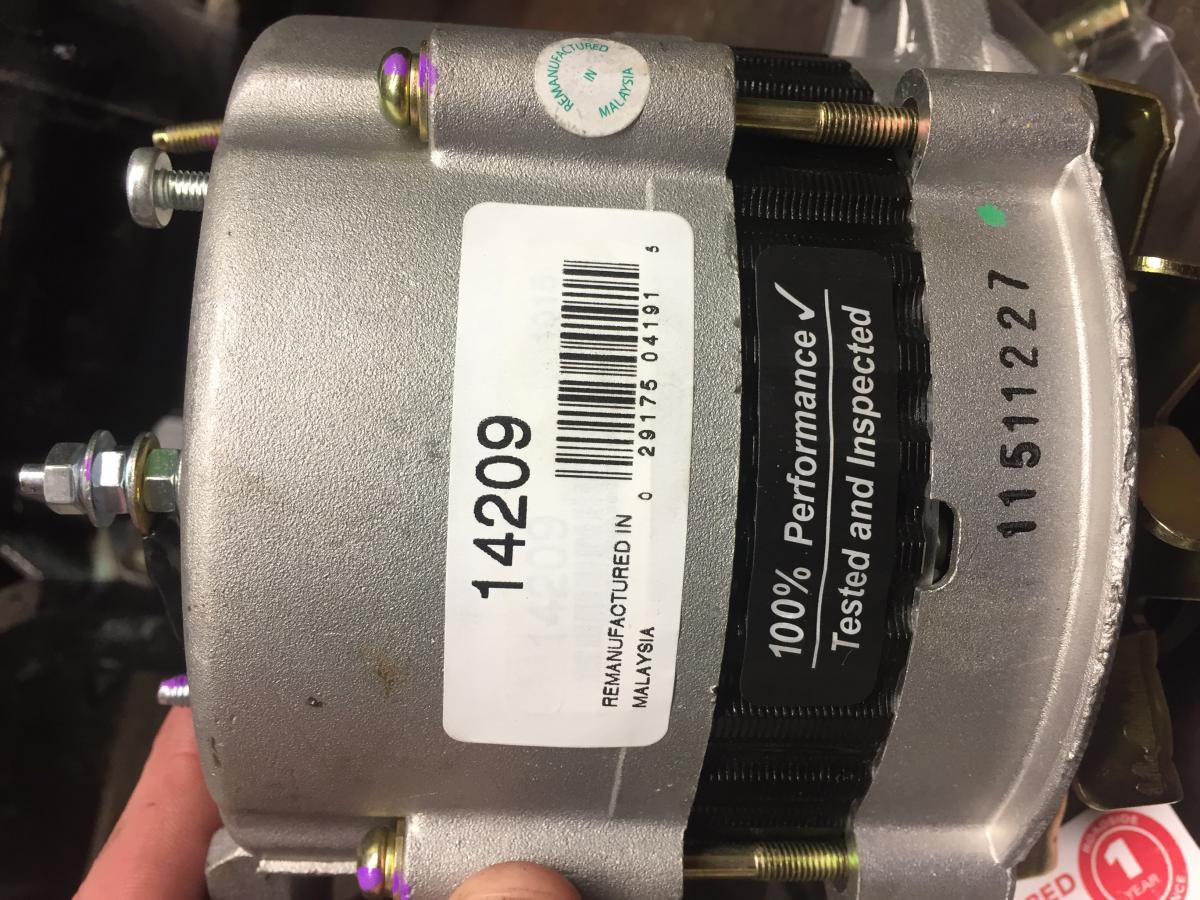

So I ordered this alternator off the interwebs at the same time I got all my electronic upgrade parts (I.e. Fuel pump, dizzy etc) but I only just got around to having a look at the alternator. The one I ordered was a remanufactured 240, 260, 280z one ; https://zcardepot.com/electrical/battery/alternator-reman-240z-260z-280z-70-77.html?search=Alternator+ But it doesn't seem to match up with the wiring of my previous alternator? Is this right? Maybe they sent me the wrong one, I don't know what that P spade connector is for and where is the black casing from my previous one (this was shown in the product image online) If anyone has any reference images of there's set up similar to this one that would be much appreciated. Cheers, Sandy.

just spotted this one uploaded !

PM pending response

some cool datto's in my album from the weekend here enjoy! https://www.facebook.com/WideOpenShutter/photos/?tab=album&album_id=1213771881979901

hey mate, welcome to the site i went with a 280zx distributor and if you're a bit handy, it's not hard to get it in.

I have a pretty basic tool kit as of the moment, I had enough to a previous engine transplant in the garage if that depicts the type of tools i have accessible? It sounds as though i would be able to strip the head then send it off the have the adjustments made and later piece it back together myself. maybe this is something i could do after the initial build and im after a little more out of it? or is it best to do this in one hit in your opinion? The guys local to me who are Zed owners ABSOLUTELY know copious amounts more than me hahah, I mean, i've only just been doing this for almost a year and these guys have no doubt had many more on top of that! I'll be giving James another call during the week to see where he's at and talk more about the build. Where can i find Peter Mac at? Thanks for your advice @Gareth

Unfortunately I don't know of anyone who has done a rebuild in their own garage, I have however been in contact with a few who have sent theirs off the be done at a shop. Having a workshop manual has definitely come in handy before as i have 2 Haynes that i keep around the house and garage. Not sure if these specify a complete rebuild though. I also am slowly understanding what each component of internals varies and to what specifications means what. I do still have a lot to read and catch up on in terms of knowledge in engine components. Hence, at the moment, i think having an engine built by someone who knows what it need is best and then me having my spare L series up on the bench for me to figure out whilst i'm tearing down. When you say money spent on the head is best bang for buck (I've read this on pretty much every engine rebuild thread on the site) what kind of work does this involve? *excuse my novice questioning lol*

Thanks guys for your responses. I have decided to go with James at MIA and will be in further contact with him in the near future. In regards to the build itself, I was thinking of having factory internals with a set of triple Webber carbs. Is there any downfalls to this or any suggestions you guys would have to support the triples? keep in mind i do already have a set of extractors and 2.5" headers back exhaust, an Exedy HD clutch with a set of chunky Toyo R888's and am hoping to stay within the 5-6k budget. Not looking to build something quick by any means, just something with a little roar when i feel like it street driven. Cheers, Alex.

Did these get sold already or still available?

Hey guys, I thought i'd post in here before i commit to any major work on my block. To those who have had their L series engines rebuilt, either to factory specifications or upgraded, what final costs did you come to with the engine pieced back together complete? I have a seized L26, complete, that i wish to have rebuilt. No goodies, no fruit, no upgrades. Just factory parts. Stewart Wilkins motorsport gave me a real quick rough quote of $5-6k and i just wanted to confirm the pricing of what a complete rebuild should cost. I am expecting it to be a little higher due to the engine being seized. any other suggestions for this process? places i could take it, thoughts on doing it in my own garage? i haven't done a rebuild before at all but did swap the engine once before? Cheers, Alex.

again, back to being interested. still planning on pulling it?

Will no longer be able to make this drive now due to work commitments and the Datsun isn't quite road ready yet, sorry dudes I'll catch you at the next one hopefully!!
