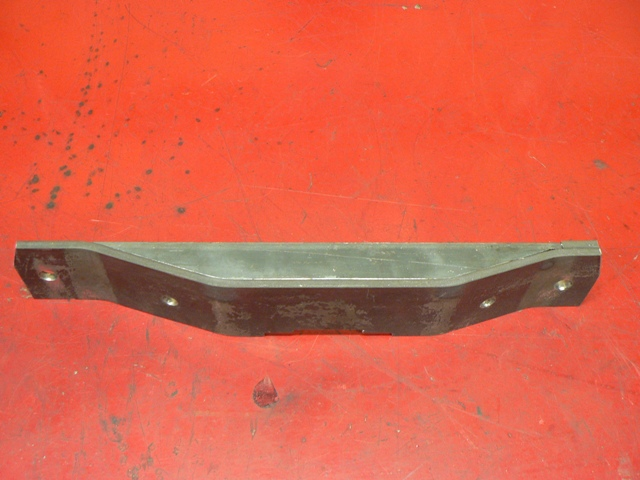

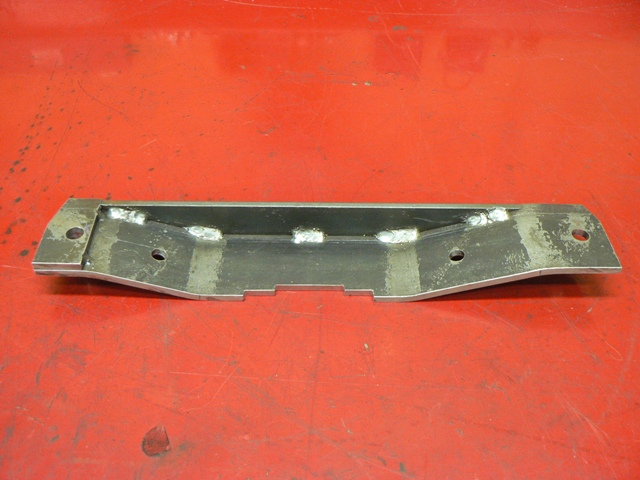

KatoKid Posted February 14, 2011 Author Share Posted February 14, 2011 Thanks for the kind words John. Got the trans crossmember finished on the weekend. Quote Link to comment Share on other sites More sharing options...
Scoota G Posted February 14, 2011 Share Posted February 14, 2011 That's very neat and looks a lot better than some attempts i've seen. I like the strengthing. Quote Link to comment Share on other sites More sharing options...

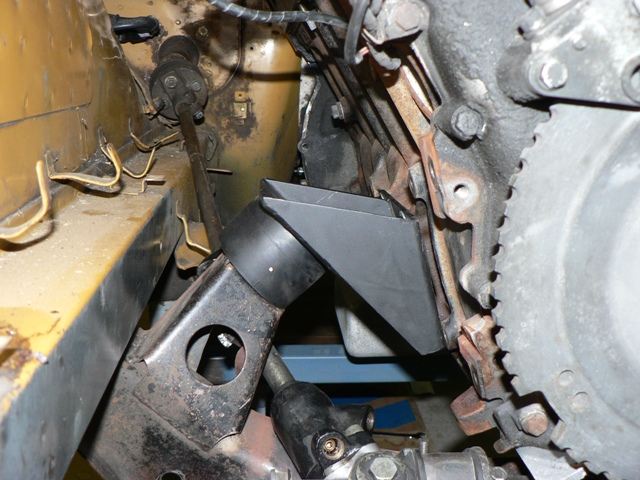

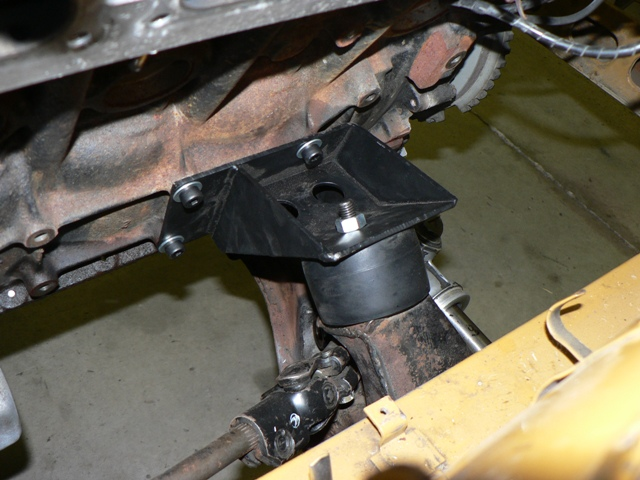

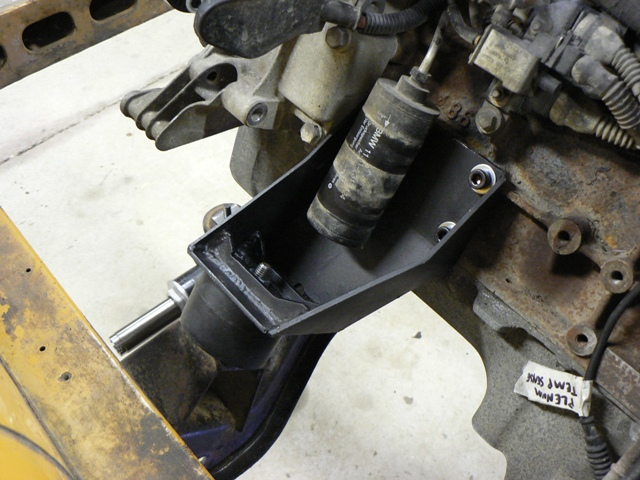

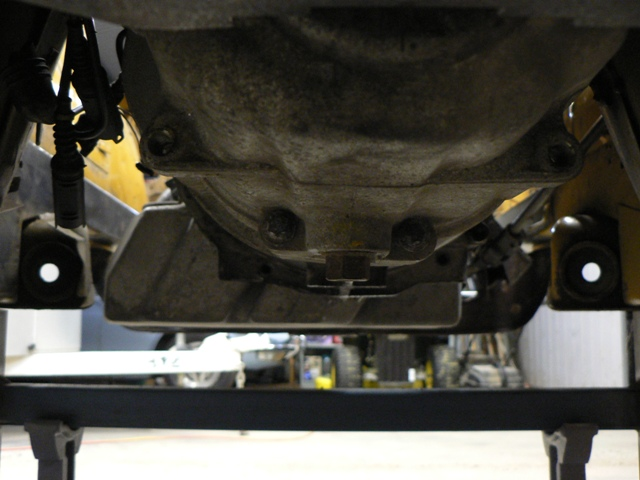

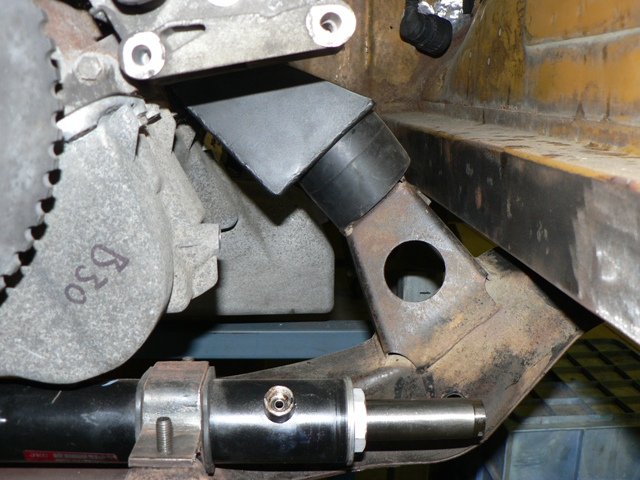

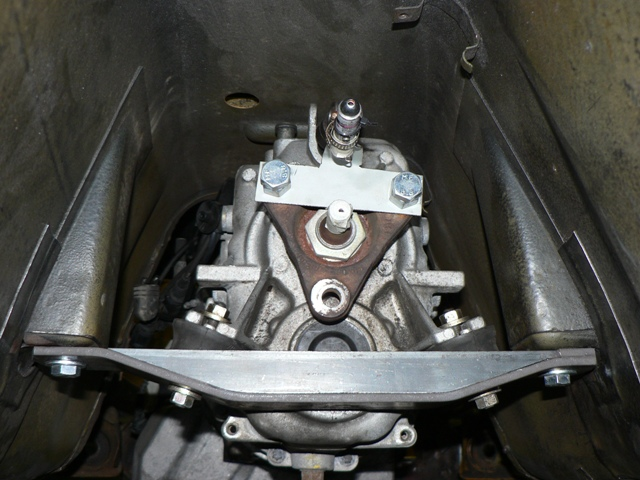

KatoKid Posted February 14, 2011 Author Share Posted February 14, 2011 With the trans mount and RT mount finished the drivetrain is now sitting in its final resting place. This is a big milestone for me as it is the culmination of many months of research, worry and second guessing. I'm very happy with the critical driveline alignment, its an interesting exercise in understanding what manufacturers go through when designing cars. As it turns out it's a piece of luck that the original L series and diff is offset to the RH side as this provides the clearance between the M3 sump and the tension rod bracket on the LH side chassis rail, without this offset the sump would need some cutting and shutting. Here's some better photos of the engine mounts in its final position...... the bottom of the sump is at exactly the same height as the bottom of the engine/steering rack crossmember. The transmission is very tight in the tunnel with it being located well over to the RH side and as high as possible, there is only 8mm or so between the top of the trans and the tunnel at its tightest point. Should be enough room to allow for the engine torquing over on acceleration, the heavy duty rubber mounts will help here. I still need to install the shifter which is remote body mounted but think it will be OK. The cylinder sitting over the LH engine mount racket is the oil accumulator for the Vanos system. Quote Link to comment Share on other sites More sharing options...
KatoKid Posted February 14, 2011 Author Share Posted February 14, 2011 More... Quote Link to comment Share on other sites More sharing options...
luvemfast Posted February 14, 2011 Share Posted February 14, 2011 Looking good Quote Link to comment Share on other sites More sharing options...

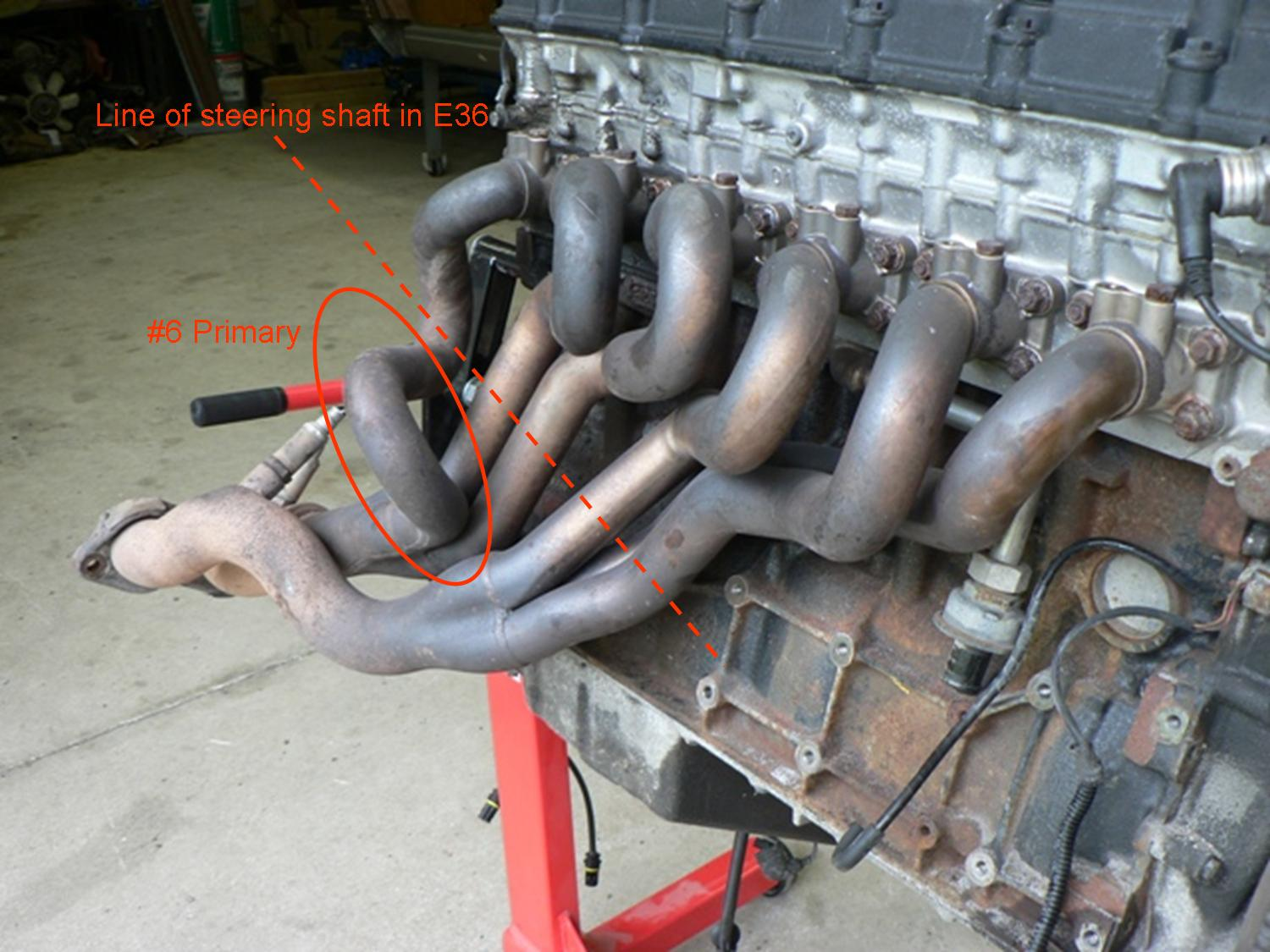

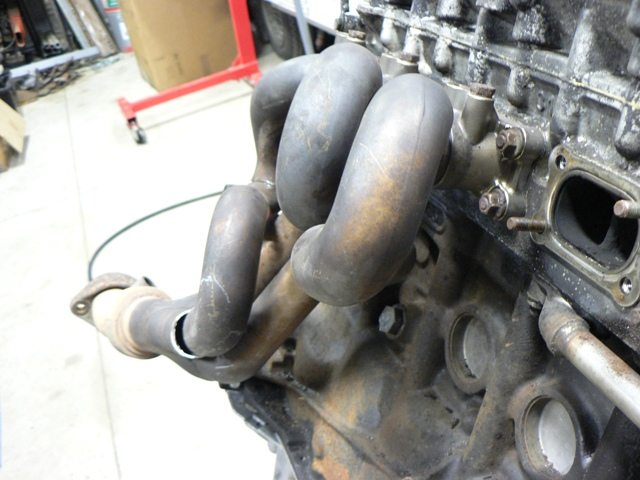

KatoKid Posted February 14, 2011 Author Share Posted February 14, 2011 Next up was the exhaust. I really hoped that I could use the factory stainless steel headers and the first thing I checked once I had the engine roughly located in the car for the first time was to see how they may or may not fit. The headers are a separate pair of 3 into 1's and reassuringly it looked like the front would fit no problems and the rears would only require some massaging of the #6 primary which sticks out at a ridiculous angle compared to the rest, this is to clear the steering shaft as it was fitted in the E36. I figured that all I needed to do was cut the #6 primary near the collector and further up near the cylinder head and rotate it towards the engine, easier said than done as I had to figure out the axis on which it would rotate at the collector and then where and what angle to make the cut further up. I was pretty nervous and had a couple of beers before I took the saw to the pipes and fortunately I arsed it in on the first try. I still need to fill in the wedge I created at the collector but a quick tack (thanks to everyones advice on tacking stainless) and trial fit in the car revealed that I had adequate clearance. I might try and squeak a bit more clearance tonight as its I suspect the engineers will want more room between the pipe and the steering shaft. Here's the thread for my Subaru power steering install http://www.viczcar.com/forum/index.php/topic,7174.0.html Quote Link to comment Share on other sites More sharing options...

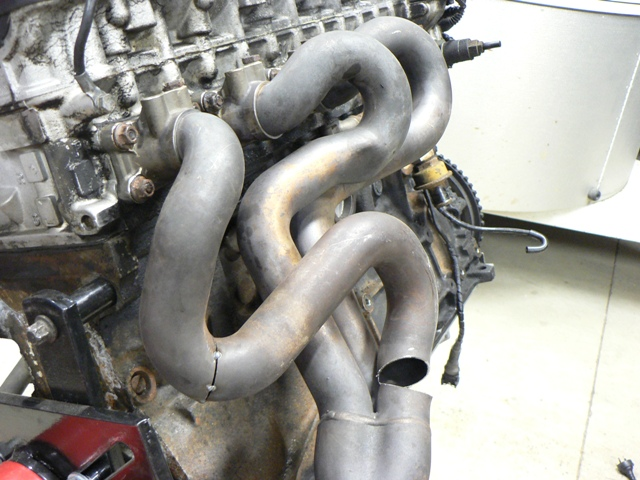

KatoKid Posted February 14, 2011 Author Share Posted February 14, 2011 Clearance.... Quote Link to comment Share on other sites More sharing options...
Sirpent Posted February 14, 2011 Share Posted February 14, 2011 David you know what im going to say ! But again, beautiful............. Quote Link to comment Share on other sites More sharing options...
Moderators Zedman240® Posted February 14, 2011 Moderators Share Posted February 14, 2011 Looks so much like a set of headers from a S20... Would you need a small heat shield between the exhaust and steering donut? Looks like it'll cook when it gets a bit hot! Very nice though.. Quote Link to comment Share on other sites More sharing options...
luvemfast Posted February 14, 2011 Share Posted February 14, 2011 Would you need a small heat shield between the exhaust and steering donut? Looks like it'll cook when it gets a bit hot! mmmmmmmm.......... donuts Yeah, def worth considering Quote Link to comment Share on other sites More sharing options...
NZeder Posted February 14, 2011 Share Posted February 14, 2011 8) very David. So how does the clutch M/C look which one will work for you ? Quote Link to comment Share on other sites More sharing options...
KatoKid Posted February 14, 2011 Author Share Posted February 14, 2011 Yep, will probably have to provide some shielding. I haven't shown it in the photos but they do come from the factory with comprehensive shielding, butt ugly though! Mike, I only have 70mm to the back of the head so allowing some room for movement means 60mm is practically the longest I can go. I may be able to mount the MC with the flange inside the cabin but may then run out of pedal stroke. Quote Link to comment Share on other sites More sharing options...
RTz Posted February 14, 2011 Share Posted February 14, 2011 Yep, will probably have to provide some shielding. I haven't shown it in the photos but they do come from the factory with comprehensive shielding, butt ugly though! The Subaru PS rack has a LOT of dampening built in, so the isolator no longer serves it's original function. You could replace it with a machined aluminum part and never miss it. Looking terrific, Dave!. I'll get to your email later today. Quote Link to comment Share on other sites More sharing options...
PeterAllen Posted February 14, 2011 Share Posted February 14, 2011 Re: the clutch m/c - with a bell-crank arrangement you could possibly position the m/c on the passenger side. Quote Link to comment Share on other sites More sharing options...
NZeder Posted February 14, 2011 Share Posted February 14, 2011 Re: the clutch m/c - with a bell-crank arrangement you could possibly position the m/c on the passenger side. or under the dash on the side of the pedal box then just have remote reservoir under the bonnet. Quote Link to comment Share on other sites More sharing options...
KatoKid Posted February 14, 2011 Author Share Posted February 14, 2011 The Subaru PS rack has a LOT of dampening built in, so the isolator no longer serves it's original function. You could replace it with a machined aluminum part and never miss it. Good point Ron, hadn't even considered that. I will likely leave the isolator in place initially and then once I'm through the engineers and registered I can replace it then. David Quote Link to comment Share on other sites More sharing options...
KatoKid Posted February 14, 2011 Author Share Posted February 14, 2011 Peter A. I always envisaged I would have to do something like a bellcrank arrangement under the dash but Mike is very resourceful and has come up with some great very short MC options that may work. For simplicity sake and time I would prefer to go with a conventional set up if I can make it work without too much drama. Time will tell. Quote Link to comment Share on other sites More sharing options...
PeterAllen Posted February 15, 2011 Share Posted February 15, 2011 ...For simplicity sake and time I would prefer to go with a conventional set up if I can make it work without too much drama... That's the route I'm taking. Just a slight relocation of the m/c with minor modifications to the pedal. Quote Link to comment Share on other sites More sharing options...
