24TZ Posted October 7, 2015 Share Posted October 7, 2015 Loving the work Peter, keep the updates coming Quote Link to comment Share on other sites More sharing options...
Riceburner Posted October 7, 2015 Share Posted October 7, 2015 No messing around here, your flying through it. What HP potential does 305cfm give you? Quote Link to comment Share on other sites More sharing options...

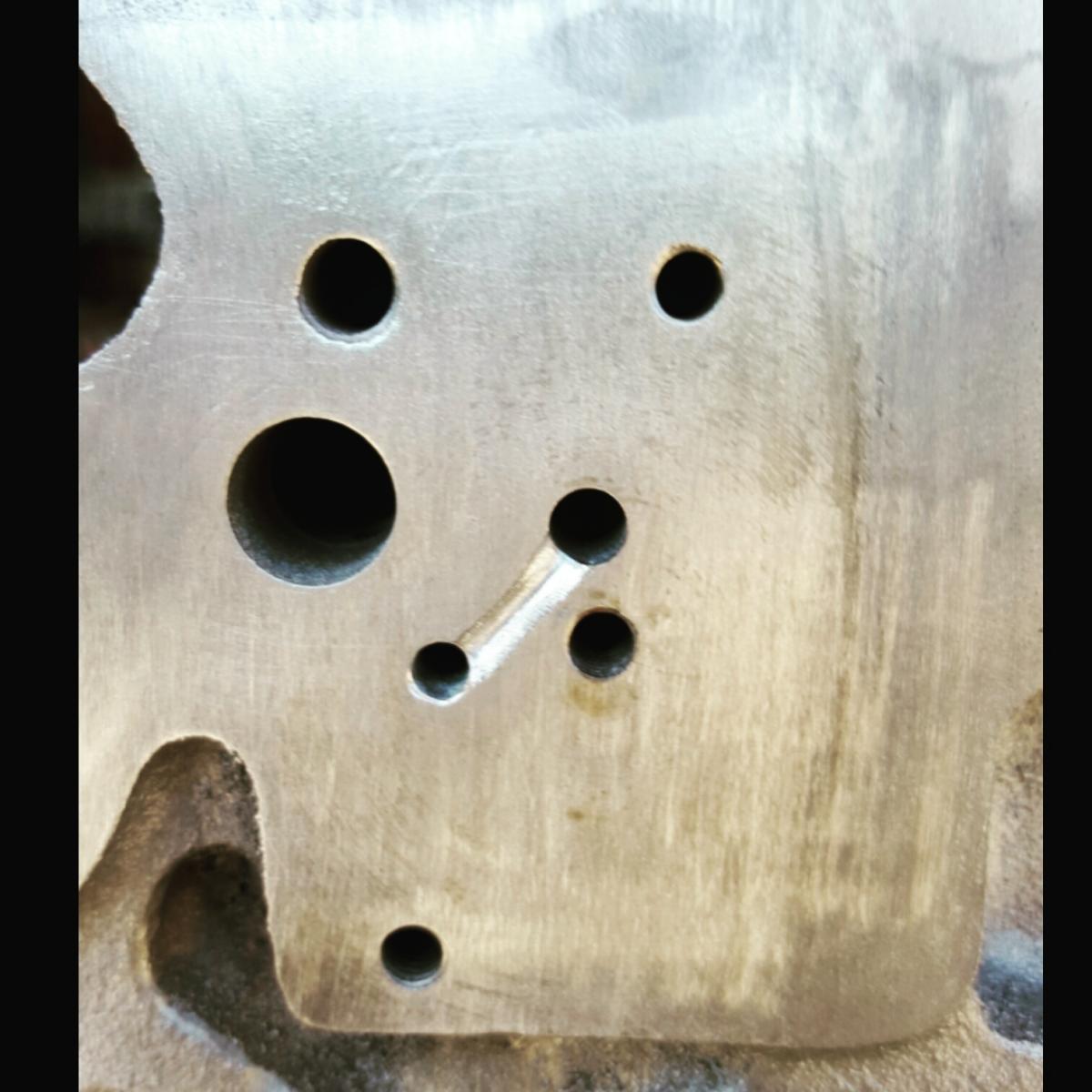

peter mc Posted October 8, 2015 Author Share Posted October 8, 2015 305 cfm and the right x section for 8500 on the 3.35 makes 460hp ..thats crazy hp if i get to 450 its just going to blow my mind ..im loving the build ..lots of mods to the block oil feeds for exhaust cam .and water ways .its a bit of a challenge. Quote Link to comment Share on other sites More sharing options...

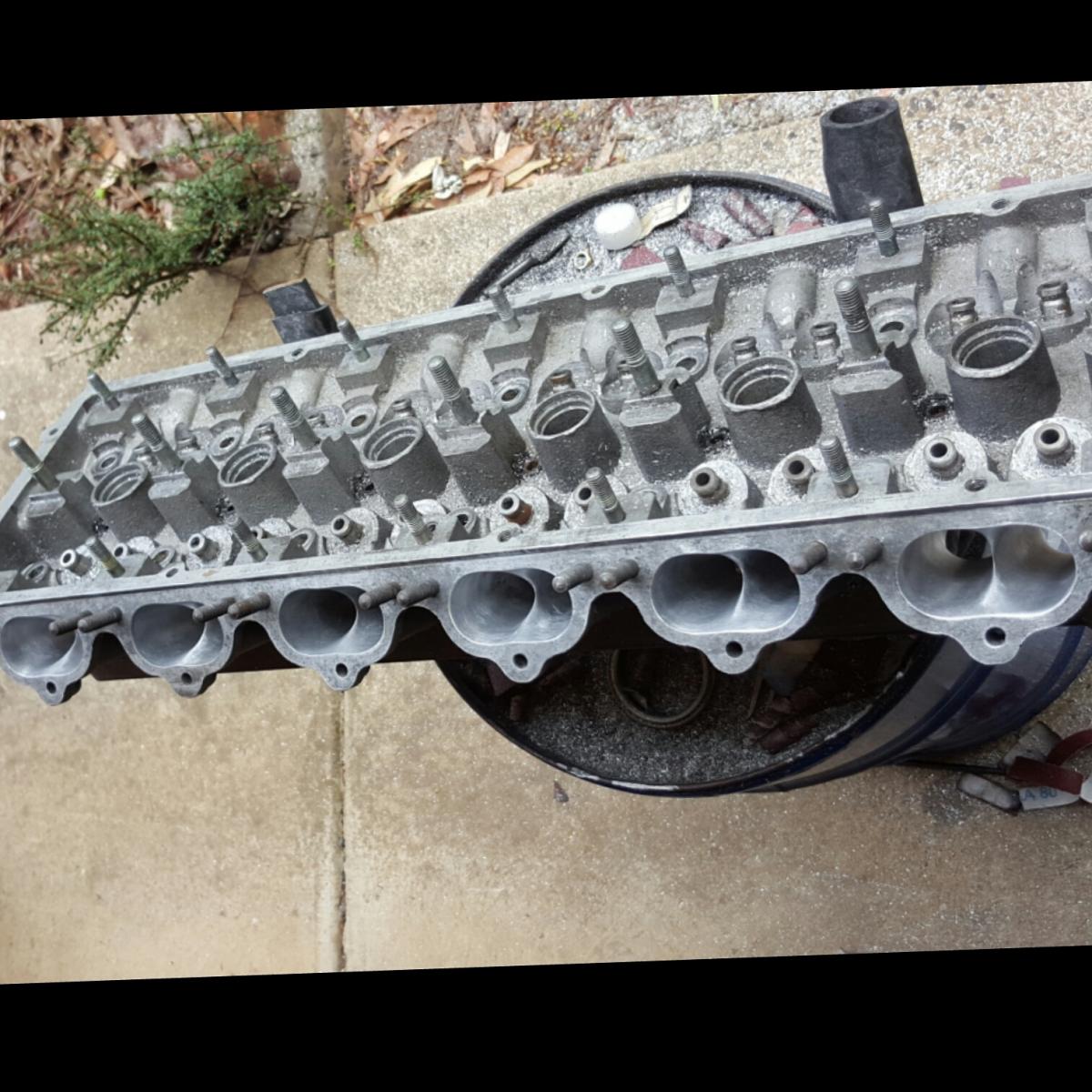

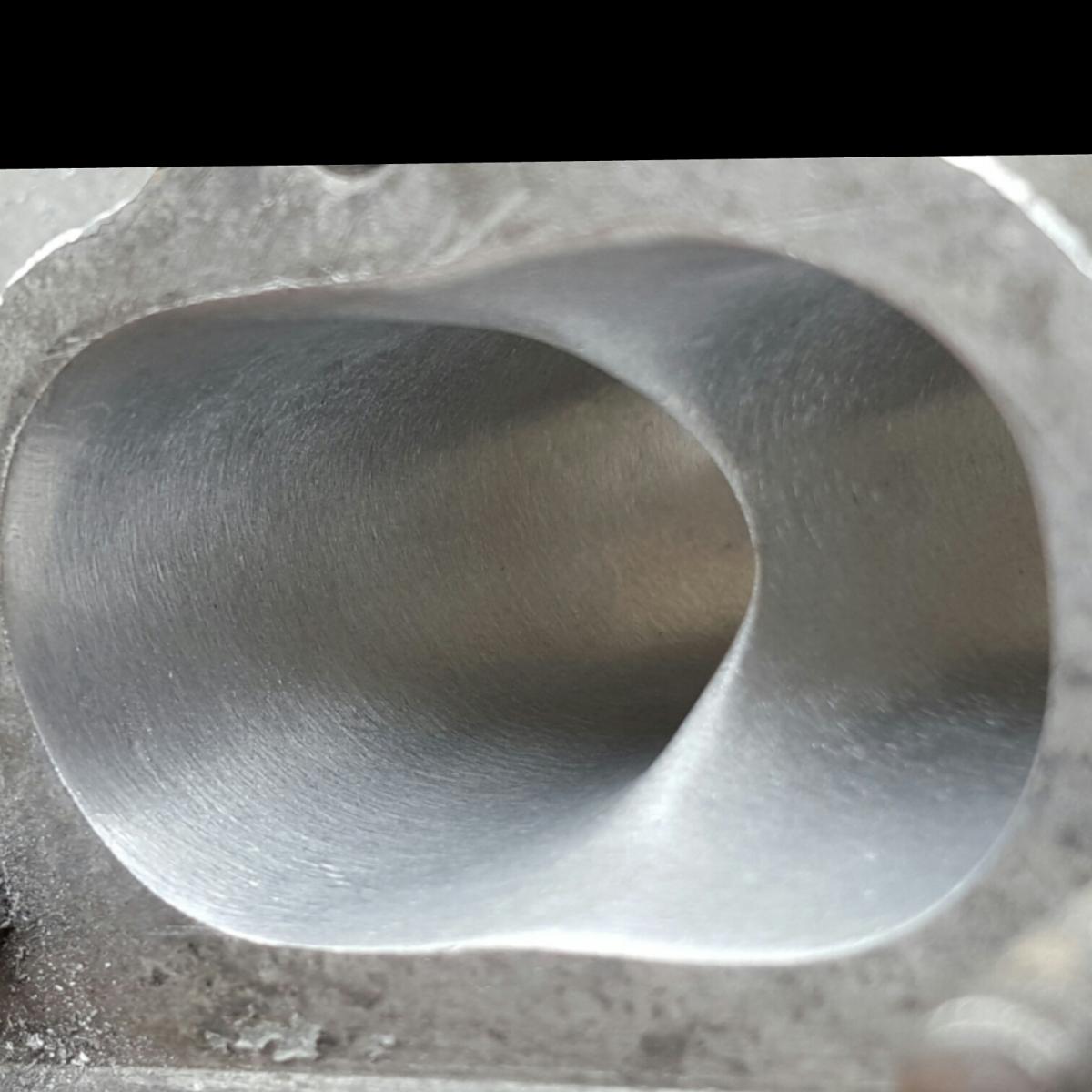

peter mc Posted October 12, 2015 Author Share Posted October 12, 2015 Getting there all ports done and flow tested average hp is 455 .very happy with the results its looking great .just need a bit of chamber work and then it can be waterjet blasted .. gav240z 1 Quote Link to comment Share on other sites More sharing options...

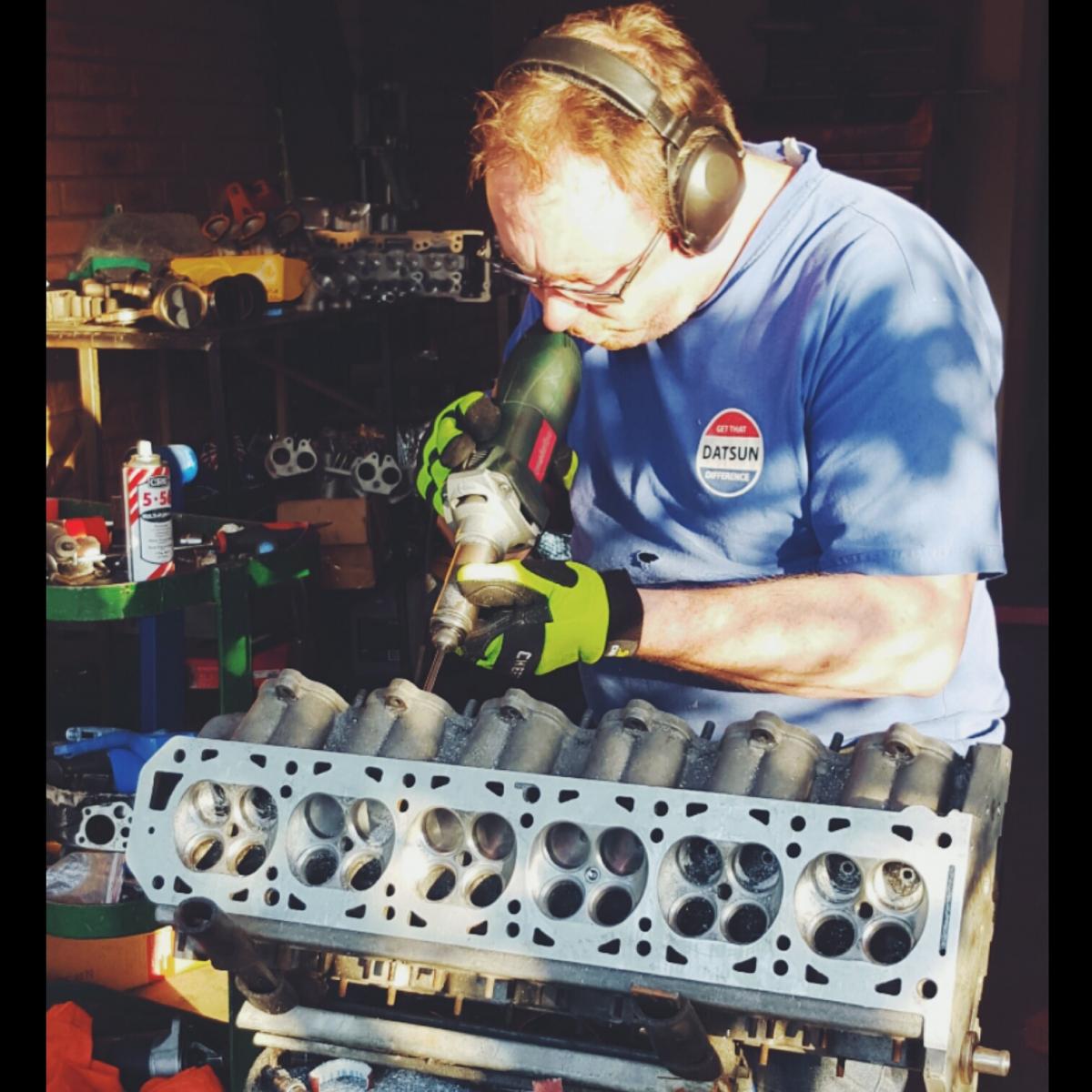

Gordo Posted October 12, 2015 Share Posted October 12, 2015 Awsome work Peter. Over 40hrs of porting, how's the arms going. Need a rest.lol. Quote Link to comment Share on other sites More sharing options...
peter mc Posted October 12, 2015 Author Share Posted October 12, 2015 Its killing me gordo porting is not my favorite thing . I know how its done but its so painful to do for me . Cnc is the go or les Collins . Only way to go Quote Link to comment Share on other sites More sharing options...

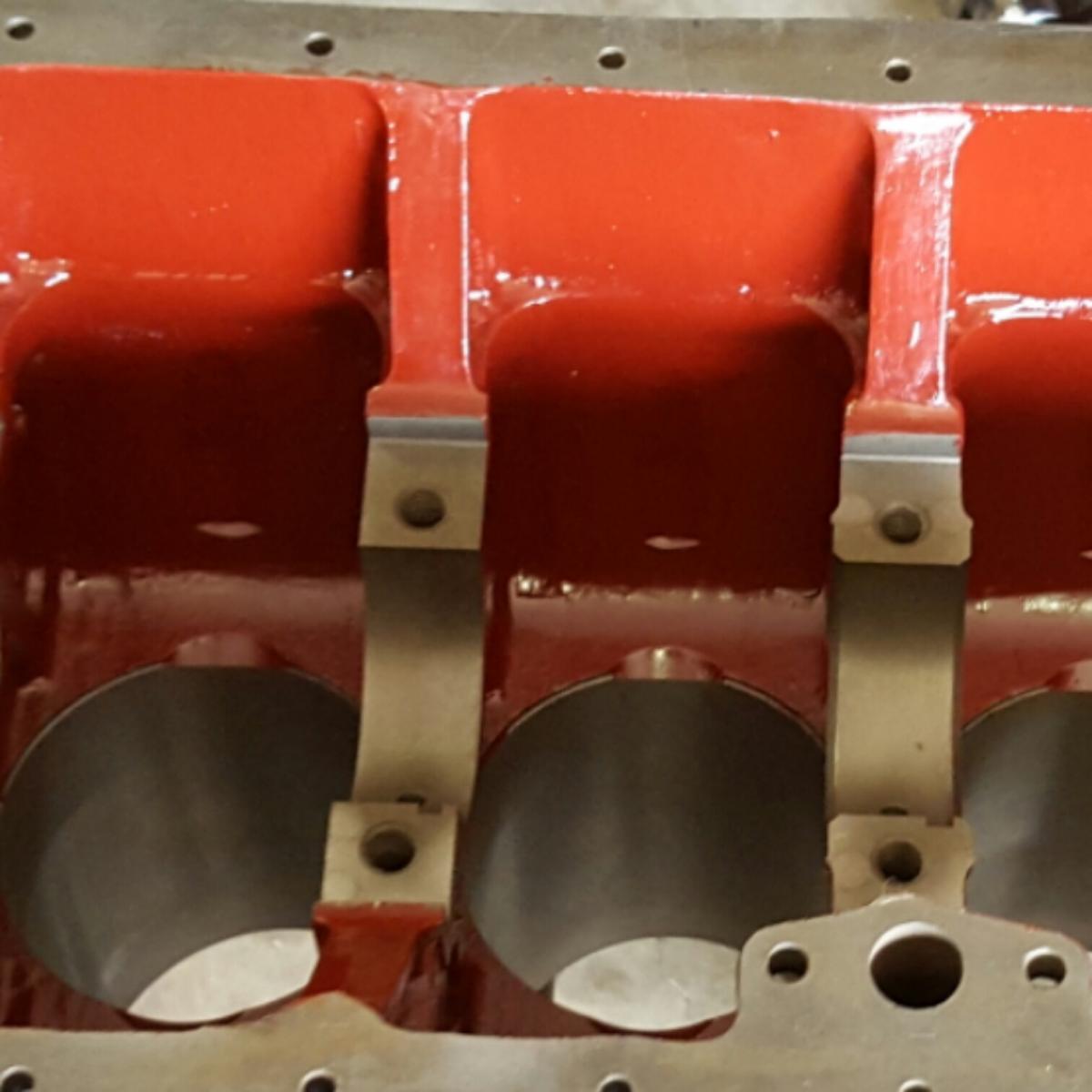

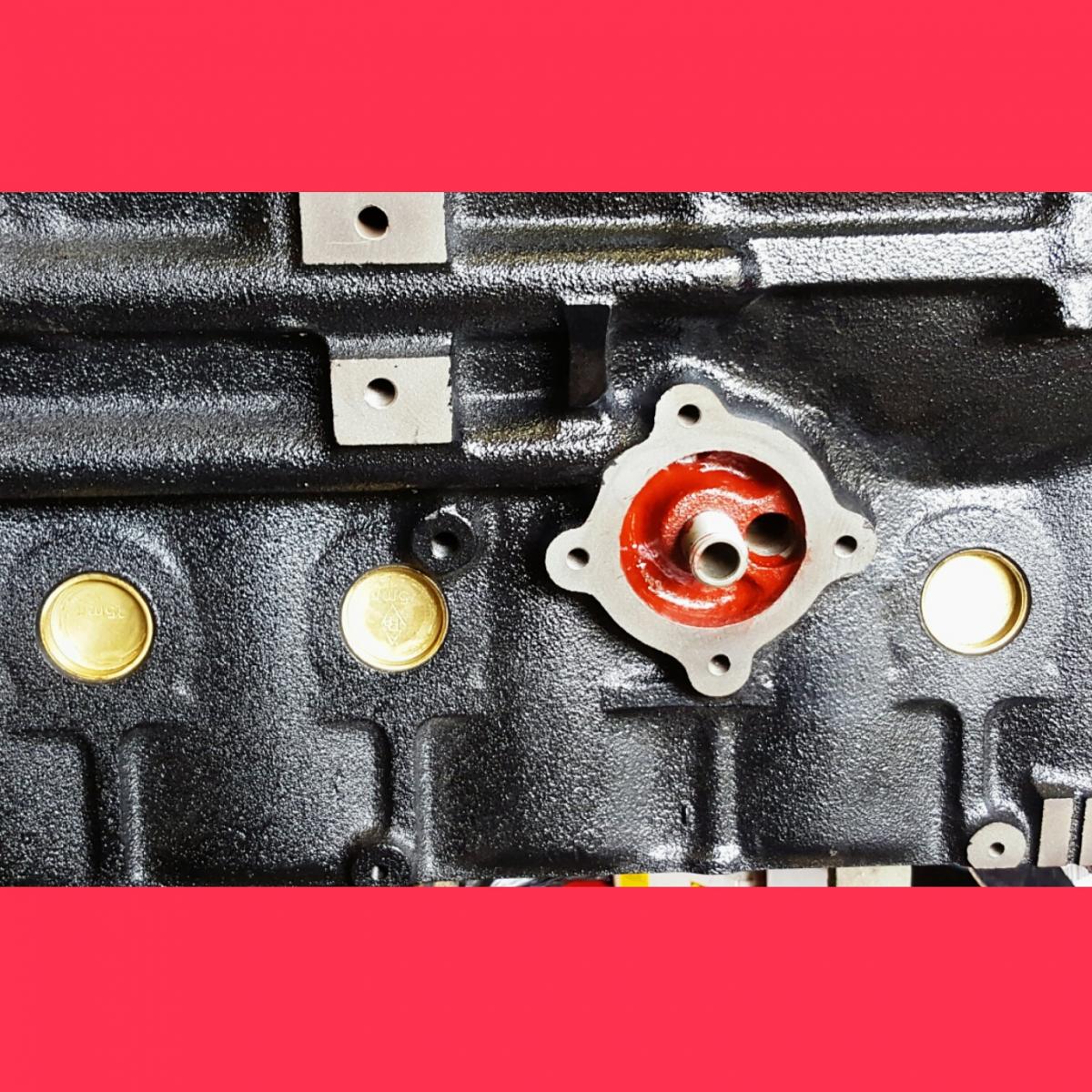

peter mc Posted October 13, 2015 Author Share Posted October 13, 2015 Bit more progress today on the block all painted up .and concrete in. few weeks then of to get some bores done Quote Link to comment Share on other sites More sharing options...

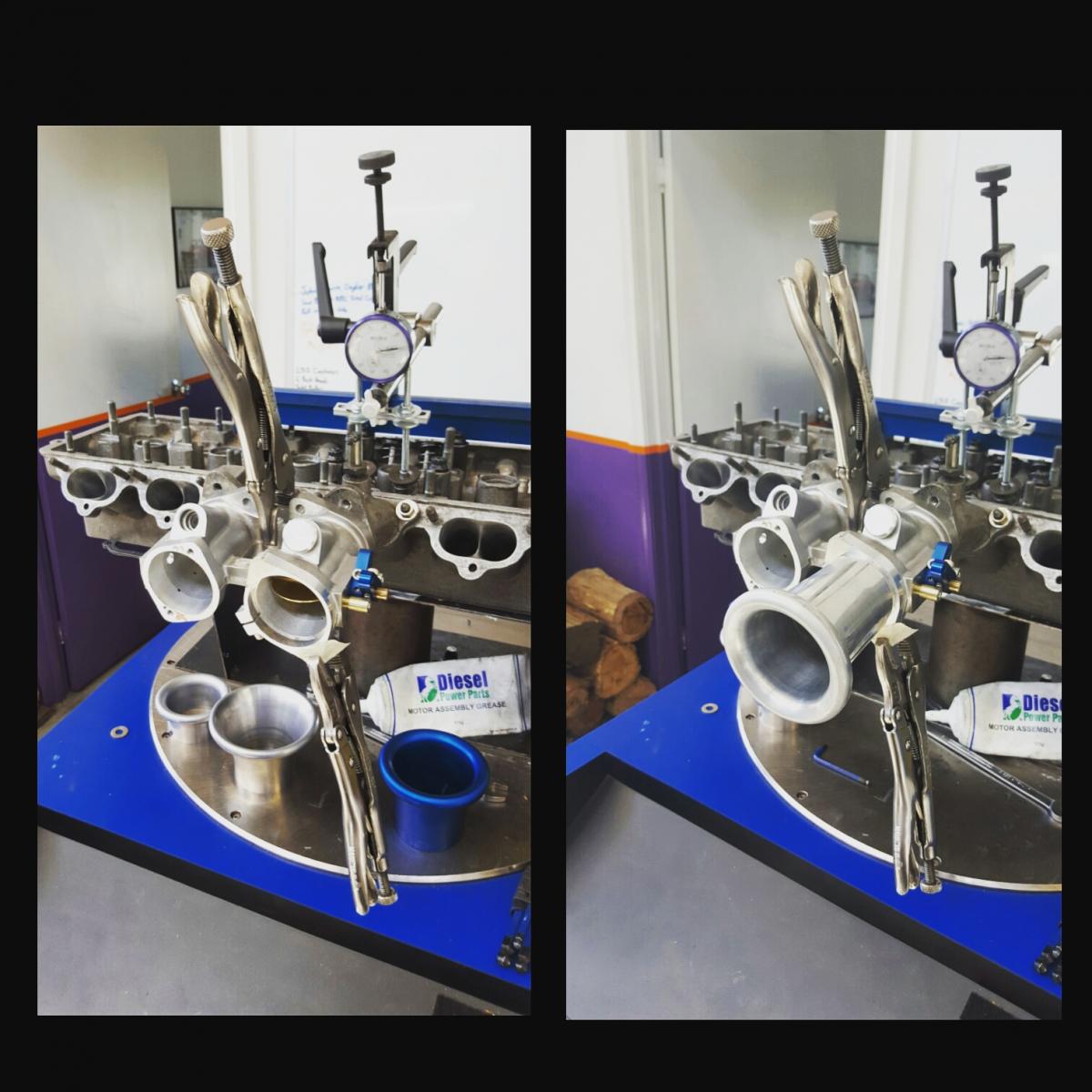

peter mc Posted October 17, 2015 Author Share Posted October 17, 2015 So now all the ports are done i had steve at EFI hardware do a dummy tb to do some tests.steve made up a 55mm itb with a tapper down to 52mm .the aim of my test was to see how well the tb would perform on the os head would it drop much ..what bell and shape would flow best .and how much did the thratal shaft and blade hurt flow ..these tests are hard to work out some times and most times you walk away not knowing what to do . But in this case i got a few good ideas on what the tb liked in the bell shape and which way the shaft needed to be set up.and how long the manifold wanted to be to flow the same hp as the head ..the last test of the day i removed the shaft and butterfly. To my surprise it only picked up 2 cfm 301cfm from 299cfm.all going well 445 to 450hp is on the cards at 8500 scott and luvemfast 2 Quote Link to comment Share on other sites More sharing options...

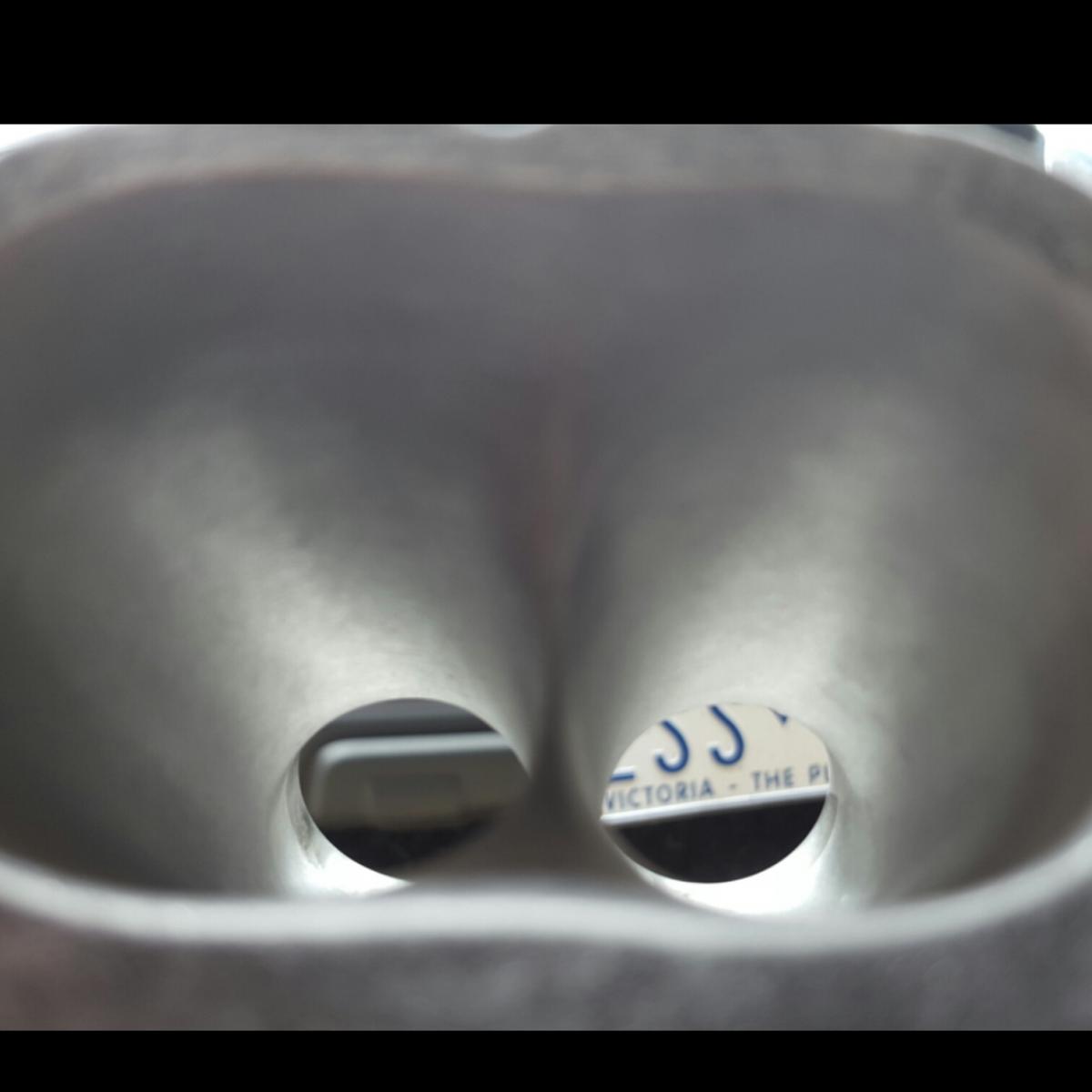

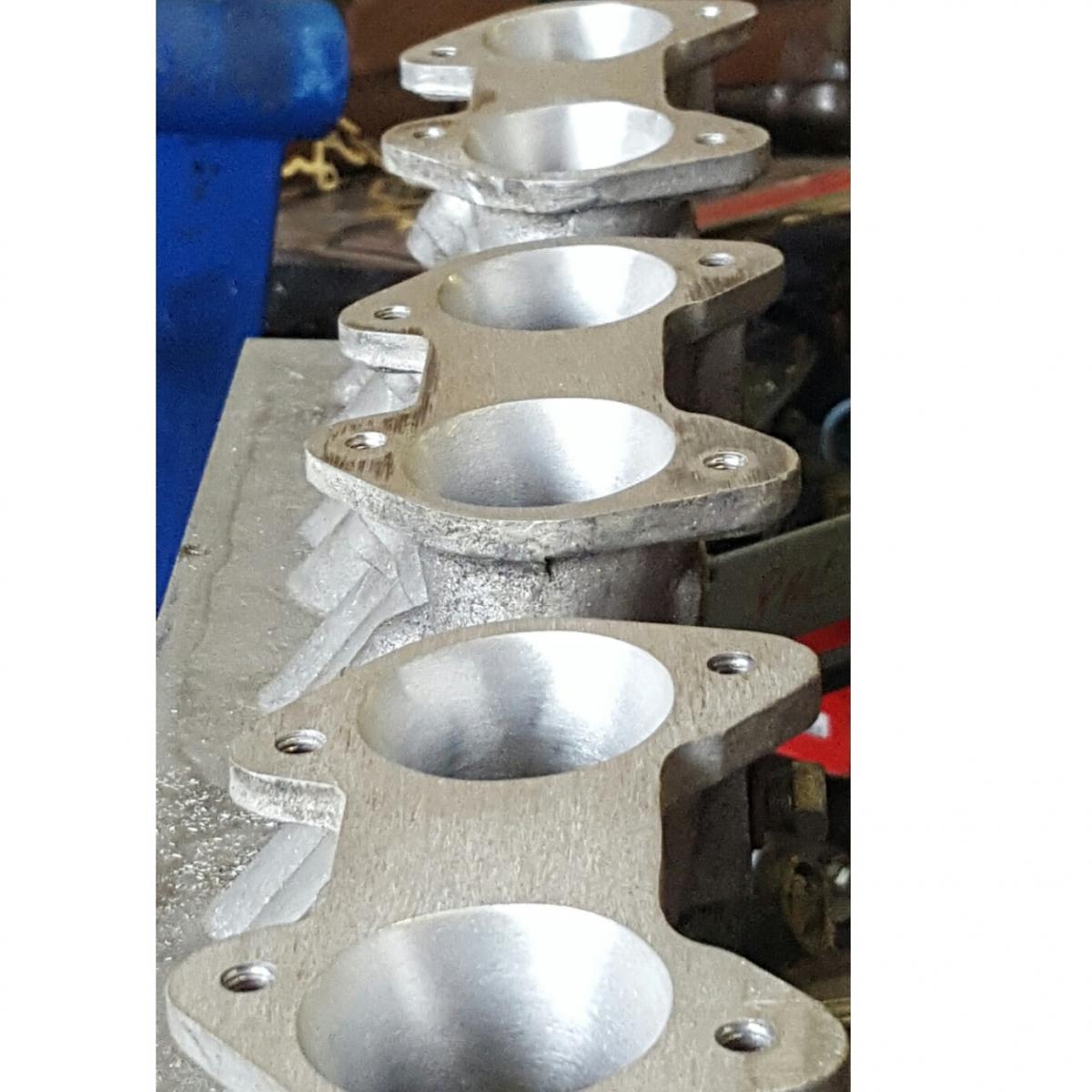

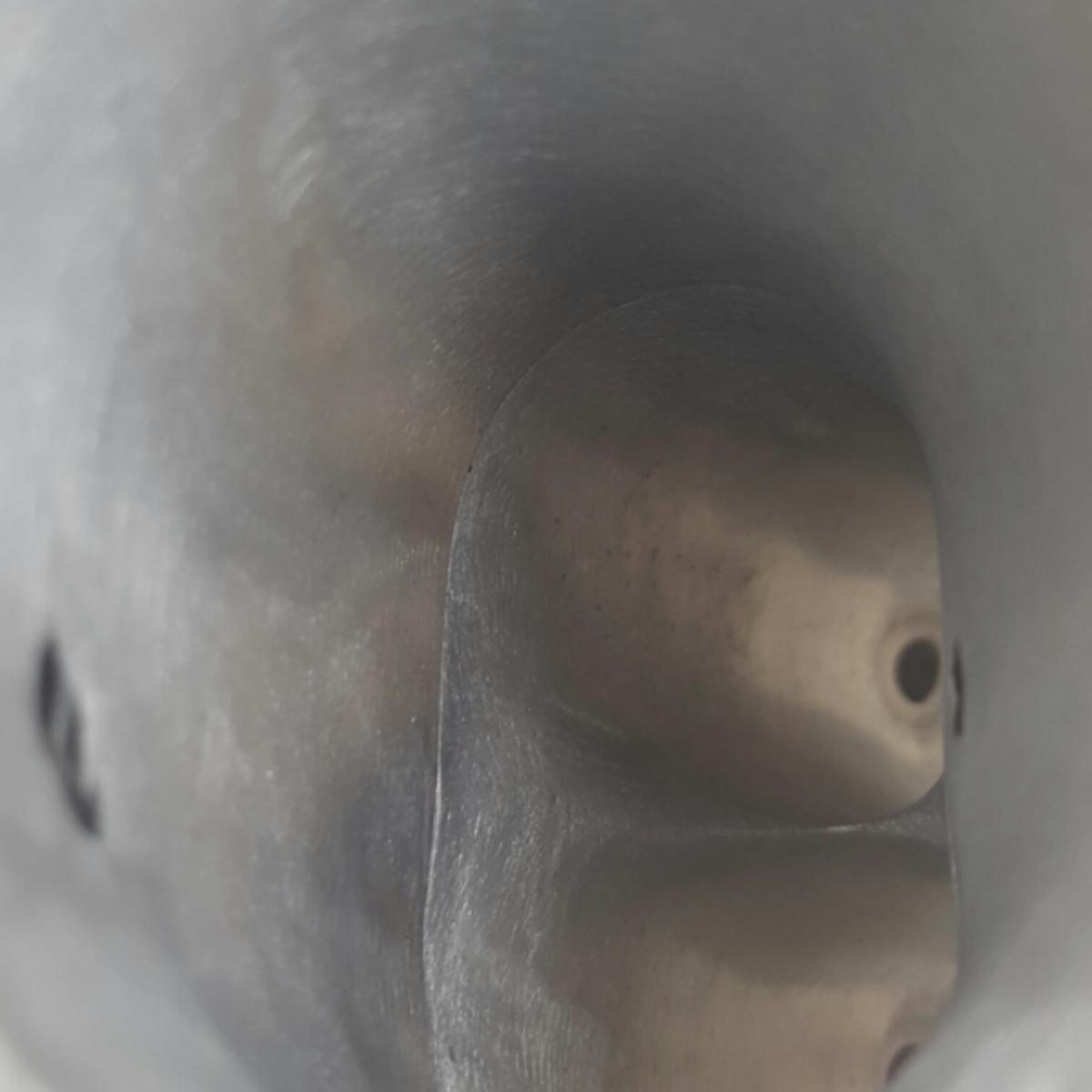

peter mc Posted October 21, 2015 Author Share Posted October 21, 2015 After much math and asking smarter people than myself 1.5mm had to come out from all the ports and 3mm from the inlet manifolds. 6 hours more .312 cfm 12mm lift honda port numbers Quote Link to comment Share on other sites More sharing options...

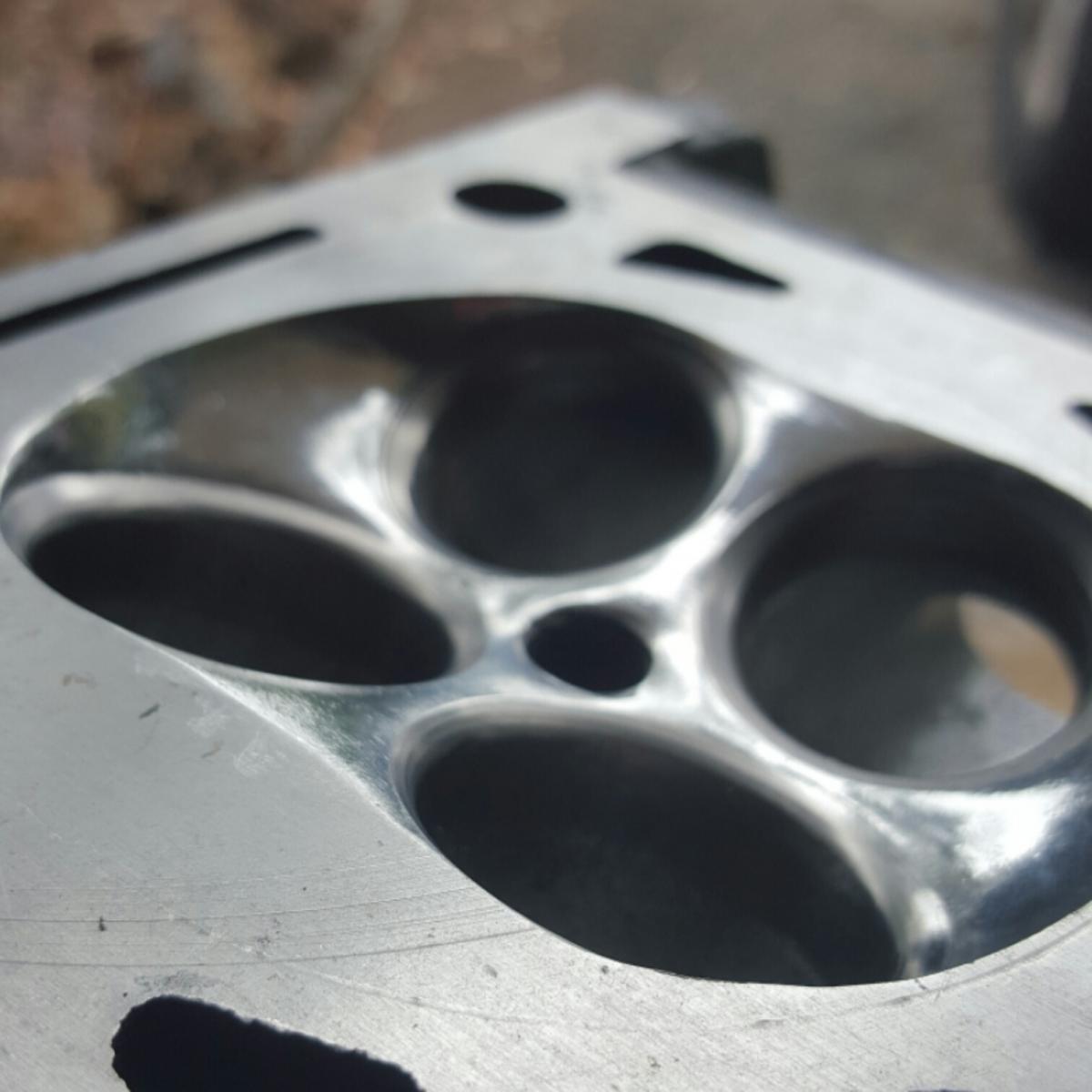

peter mc Posted October 22, 2015 Author Share Posted October 22, 2015 All chambers done off to les Collins racing now for the pipes to be made.let the master do his thing . Quote Link to comment Share on other sites More sharing options...

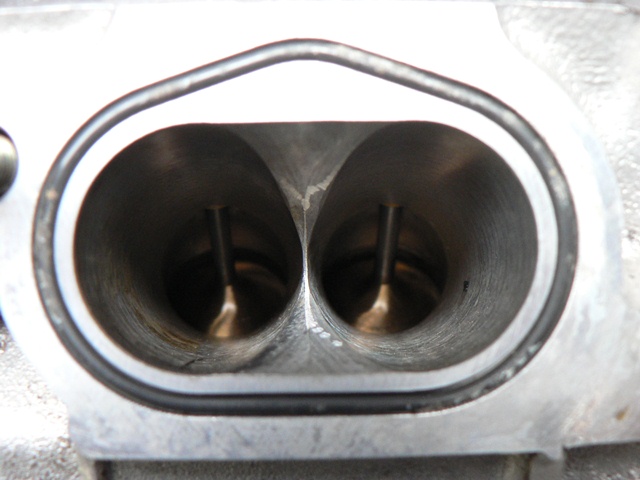

KatoKid Posted October 22, 2015 Share Posted October 22, 2015 Great stuff Pete...inlet ports look just like my M3 engine! Quote Link to comment Share on other sites More sharing options...

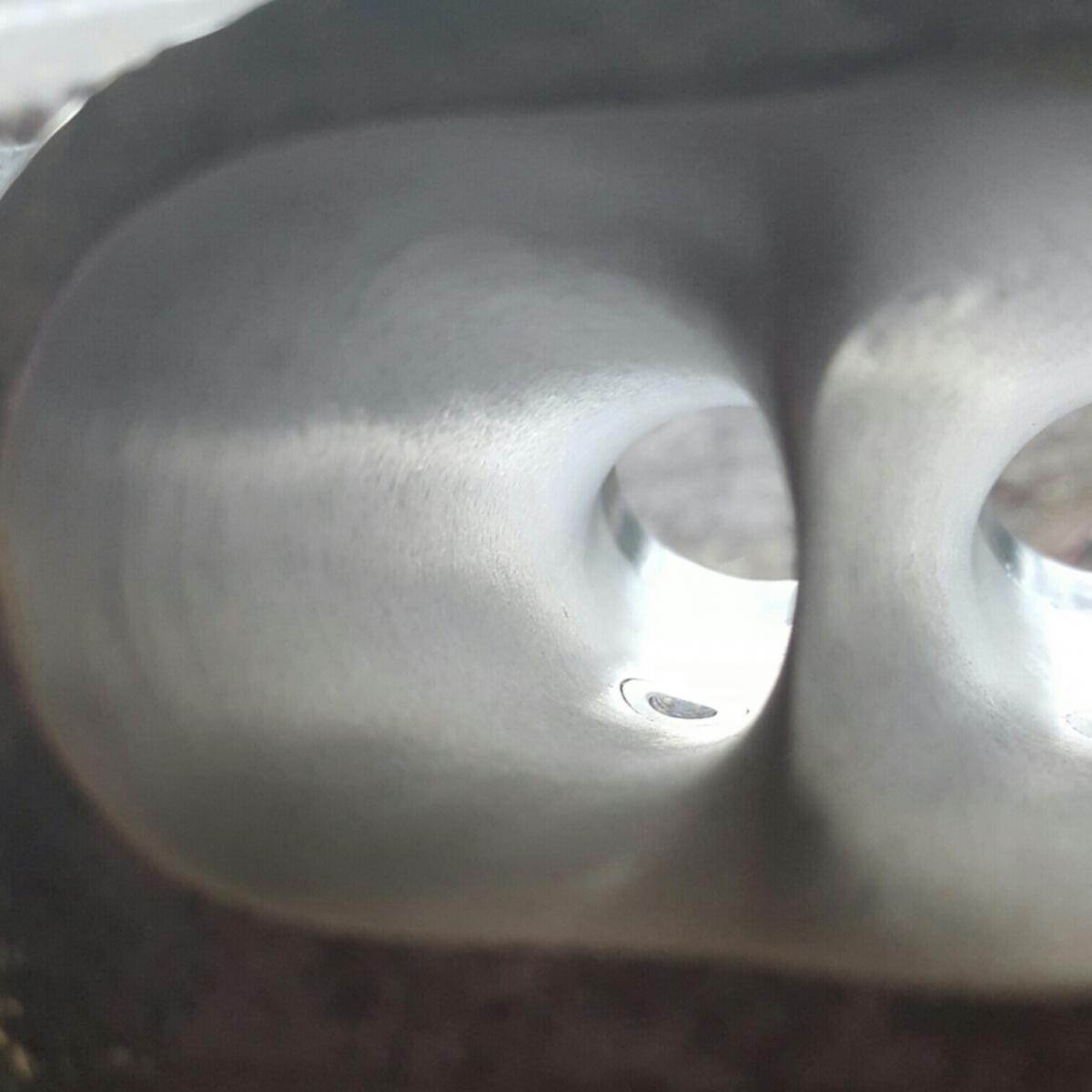

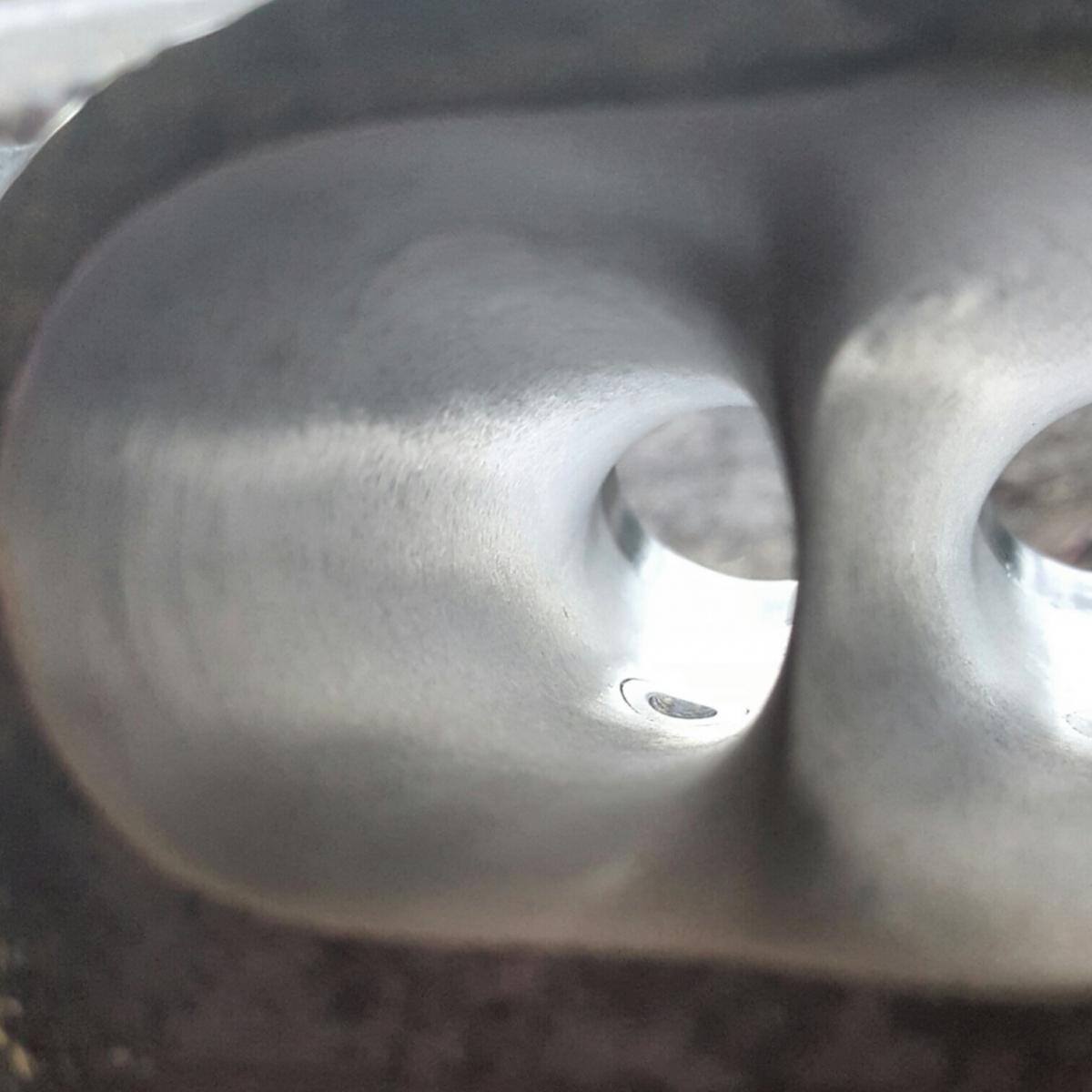

peter mc Posted October 22, 2015 Author Share Posted October 22, 2015 It sure does Kato what size is that port The os heads 61mm x34mm Quote Link to comment Share on other sites More sharing options...
peter mc Posted October 22, 2015 Author Share Posted October 22, 2015 Funny how close they are bit longer than the bmw . Quote Link to comment Share on other sites More sharing options...
Riceburner Posted October 23, 2015 Share Posted October 23, 2015 Keep those updates coming Pete, it's amazing to see all the details that make up a big build like this. I'm guessing you have 'Lego' mans hands after holding that porting tool for so long Quote Link to comment Share on other sites More sharing options...
peter mc Posted October 23, 2015 Author Share Posted October 23, 2015 Lol yep hurts like hell Gareth Quote Link to comment Share on other sites More sharing options...
Administrators gav240z Posted October 23, 2015 Administrators Share Posted October 23, 2015 You better be putting this motor in a test mule, I want to hear this thing running after 20 years in the garage. Those ports look amazing, although obviously flow numbers are important more so than hkw good it looks. Quote Link to comment Share on other sites More sharing options...
mossy Posted October 23, 2015 Share Posted October 23, 2015 You better be putting this motor in a test mule, I want to hear this thing running after 20 years in the garage. I was just thinking the same thing, let me know so I can come down Quote Link to comment Share on other sites More sharing options...
peter mc Posted October 23, 2015 Author Share Posted October 23, 2015 Only a engine dyno in Australia then in the car in japan. Theres a video getting made by speed hunters. So it will be ear porn Quote Link to comment Share on other sites More sharing options...

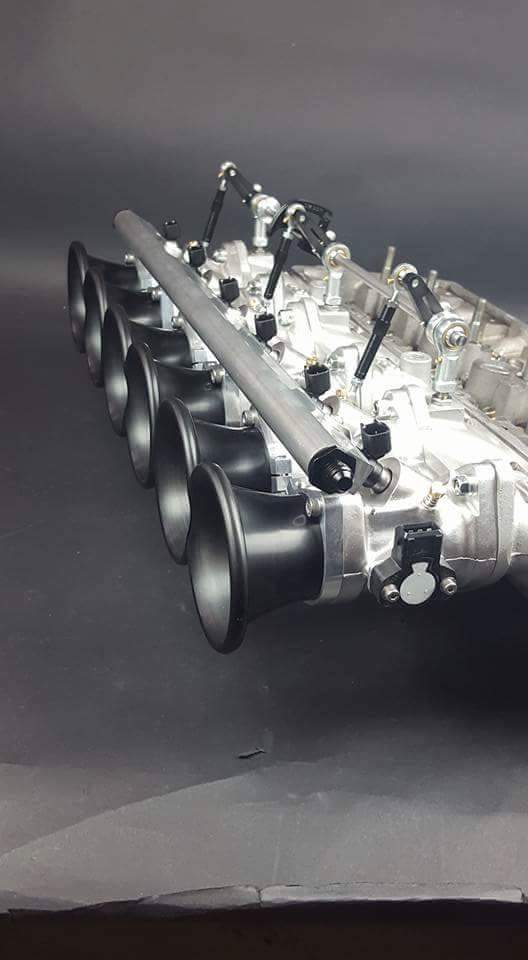

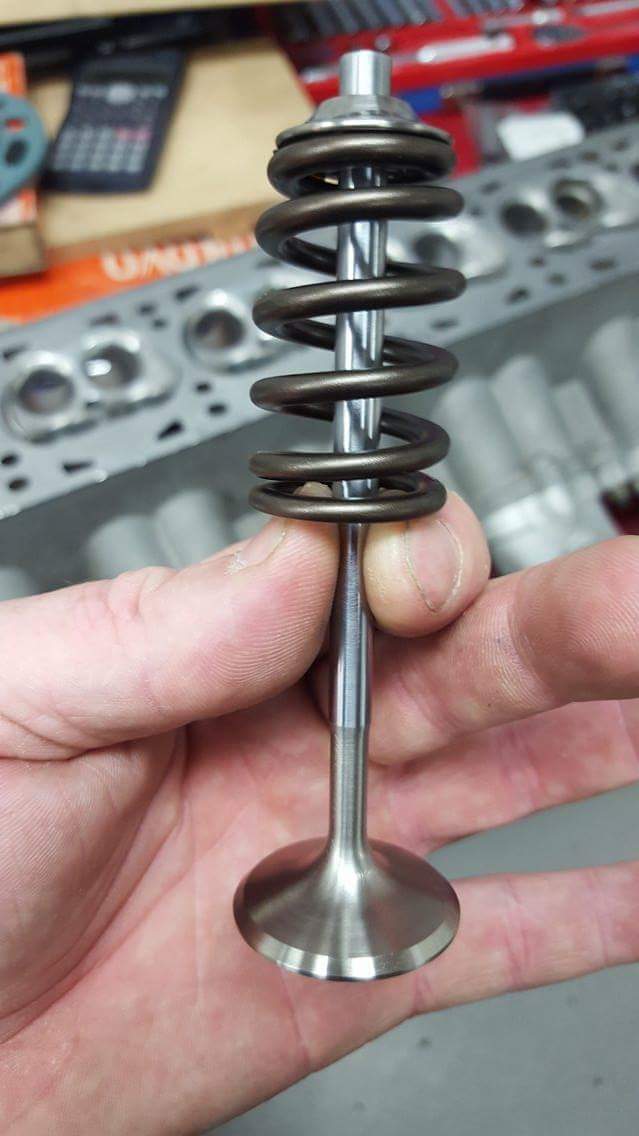

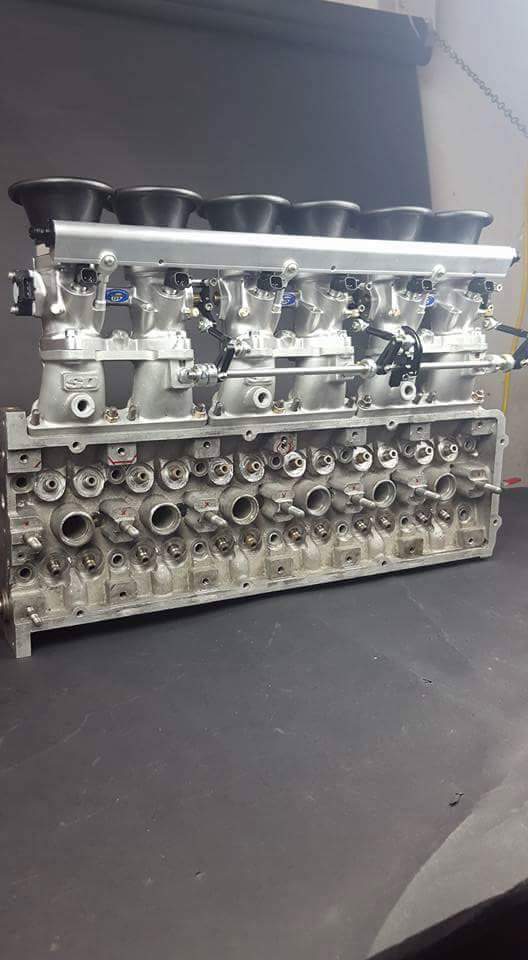

peter mc Posted December 23, 2015 Author Share Posted December 23, 2015 Its been a hectic few weeks getting bits sorted and design new bits .things got a bit out of control. And had to ask Les Collins for some help making a all new cam and drive setup. We decided to go away from rocker operation. And build a cam over bucket system like a LZ ..also i spent a day at EFI Hardware making the new itb setup. Steve went out of his way to build custom made tbs for the job and dam they look great. Stay tuned. Lots of cool stuff coming soon. 44014 and scott 2 Quote Link to comment Share on other sites More sharing options...
scott Posted December 24, 2015 Share Posted December 24, 2015 getting closer. can't wait for the final product. Quote Link to comment Share on other sites More sharing options...
