Hi All



This is uncharted territory for us so was always going to take some time to set up correctly.



The guy who made the brake lines for us fitted the master cylinders and to be fair he had everything in the correct starting position with the balance bar centered and horizontal to the firewall at rest but as he couldn't bleed the brakes that was as far as he could go, my best guess is that setup gave us about a 60/40 rear bias which obviously is far from ideal.



As Whittie said he has done a bit of research on achieving the optimum set up then played with the master cylinder plunger length adjustments lengthening one while backing the other right off ultimately he ran out of free play at the brake pedal so had to adjust that as well, I think the current set up is just about right but we'll have a full compliment of tools with us on Wednesday just in case.



This is how it came to us with brake lines done.



This is one of the rods Whittie had to adjust which required seat out to gain access.



Here's how it currently sits at rest.



And here at full pressure, I'm not 100% satisfied with this it should ideally be horizontal to the firewall.



Once we have the achieved the optimum balance I'll fit the cable to allow minor adjustment from inside the cabin.



Cheers

Dad



[Whittie]

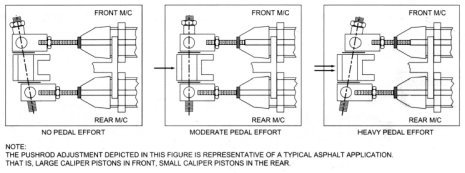

It's hard to know without experience, this from the wilwood website:





Either way, we'll have it 100% working by the afternoon on Wednesday

[PeterAllen]

What you have there relates to pedal effort not bias.



Bias is adjusted by screwing the balance bar which is connected to the two plungers coming out of the M/Cs. A good starting point is to drive the car slowly on a dirt/gravel surface and slowly apply the brakes. Adjust the balance so that the fronts will lock before the car stalls, i.e. before the rears stop the drivetrain.



I don't quite understand what those 'black' spacers are on the balance bar, doesn't the the balance bar screw through the centre pivot point?



[Whittie]

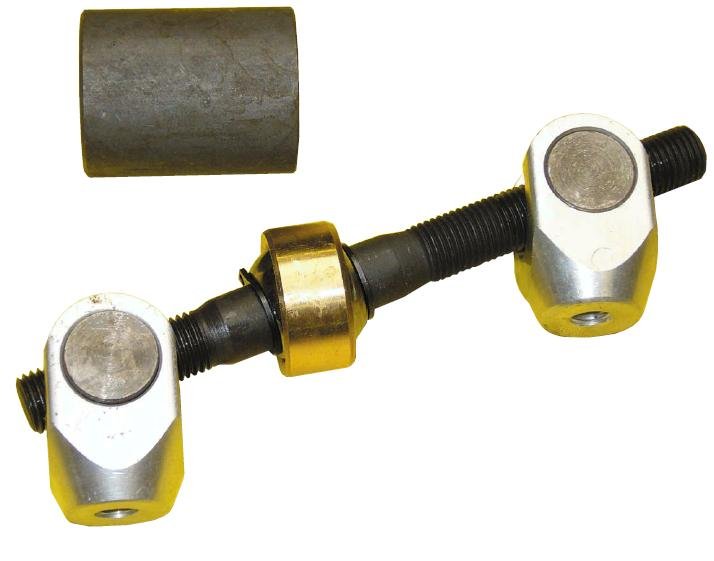

The balance bar has a conical joint in the center that is screws through - adjusting the pivot (center line in your pic)





The initial issue was that the stroke was all wrong so the front master cylinder was bottoming out without full brake pressure, you can see how now the front brake MC has much more rod length available to displace the brake fluid in the MC



Thanks for the tip about the dirt road - will gave that a shot en-route to track to get the ballpark set right.

[PeterAllen]

[PeterAllen]

Also, what actually locks the balance bar in position. I can't see a lock nut on the rod end bearings threaded onto the balance bar. Am I missing something... as usual?

[Whittie]

Bingo,



Except it's been trial and error at this stage adjusting the at rest position and the brake pedal position to allow the MC piston to move as far as it needs



The balance bar can't fall out due to the pivots of the MC pistons on the balance bar. Adjusting the central bearing (by rotating the balance bar) moves where it is in the black sleeve and you can only go as far as the threaded section of the balance bar allows before jamming on the MC piston pivot. The pivots (silver tear drops) of the MC pistons do not allow any more movement (left right) of the balance bar than the clearance between them and the black sleeve.



It is a racing regulation in some places to have a cap on the end of the balance bar, but it can't actually come out anyways unless you disconnect one of the tear drops and unthread it. At this point (tear drop not connected to MC piston) you'd have no brakes anyway, locking nut or otherwise.

[PeterAllen]

...The initial issue was that the stroke was all wrong so the front master cylinder was bottoming out without full brake pressure, ...



Is your front M/C big enough to cope with piston displacement in the front calipers?

[Whittie]

Yes, it's been sized correctly. You can see from the photos that the old man posted tho just how much offset is required on the balance bar at the rest position to get the correct applied pressure position.



At no point is the balance bar binding, it's still free to move through the full range, it's just a matter of fiddling with all the adjustment options to get the setup we're happy with.

[PeterAllen]

...The pivots (silver tear drops) of the MC pistons do not allow any more movement (left right) of the balance bar than the clearance between them and the black sleeve....



So every time you reset the bias you have to have new 'black sleeves' made to suit?



I'm asking these questions in an effort to help. I'm sure if we were standing next to the car holding a tinnie we would be communication far better.

[Grandad]

Hi All



Murphy has never been to far away from us during this rebuild, he has been credited with writing many rules and one pertaining to the installation of new equipment states "When all else fails the instructions will be read"



Damn where's this been hiding?





Cheers

Dad



[d3c0y]

Are you guys going to do any production racing in this car or mainly sprints and hill climbs? You've probably answered that but 40 pages is a lot haha.

[PeterAllen]

It appears that whoever built that set up used the black spacers rather than the jam nuts, leaving the adjusting shaft free to vibrate to a different setting. 'Jam nuts' seems to be an appropriate phrase in relation to the brake builder.



If the builder couldn't bleed the brakes then, again, I'd be looking at the capacity of the front M/C and whether it is big enough to feed the front calipers.

[Whittie]

If the builder couldn't bleed the brakes then, again, I'd be looking at the capacity of the front M/C and whether it is big enough to feed the front calipers.



It's worth noting here that the brakes were provided as a kit by Beta Motorsports in the US. Sized according to the brake caliper dimensions that we provided to him. So, the kit is good. However, the installation was by a local mechanic who made the new brake lines.



I see what you mean tho about the adjusting shaft being able to move. However, it has to have some room to move otherwise when the shaft moves through it's arc (rest to depressed position) it would bind up. It doesn't need much room and currently has too much, but you can't have the unit bound up tight or it wouldn't work either.



You are correct that this would be much easier in person with a can or two. I will try and make a video if I can, detailing the current setup and how we're adjusting the unit to get it correct.



D3c0y: Just sprints and hill-climbs for this baby - oh, well, regularity too I guess which is as close to 'real' racing as we'll get.
