Hi all,

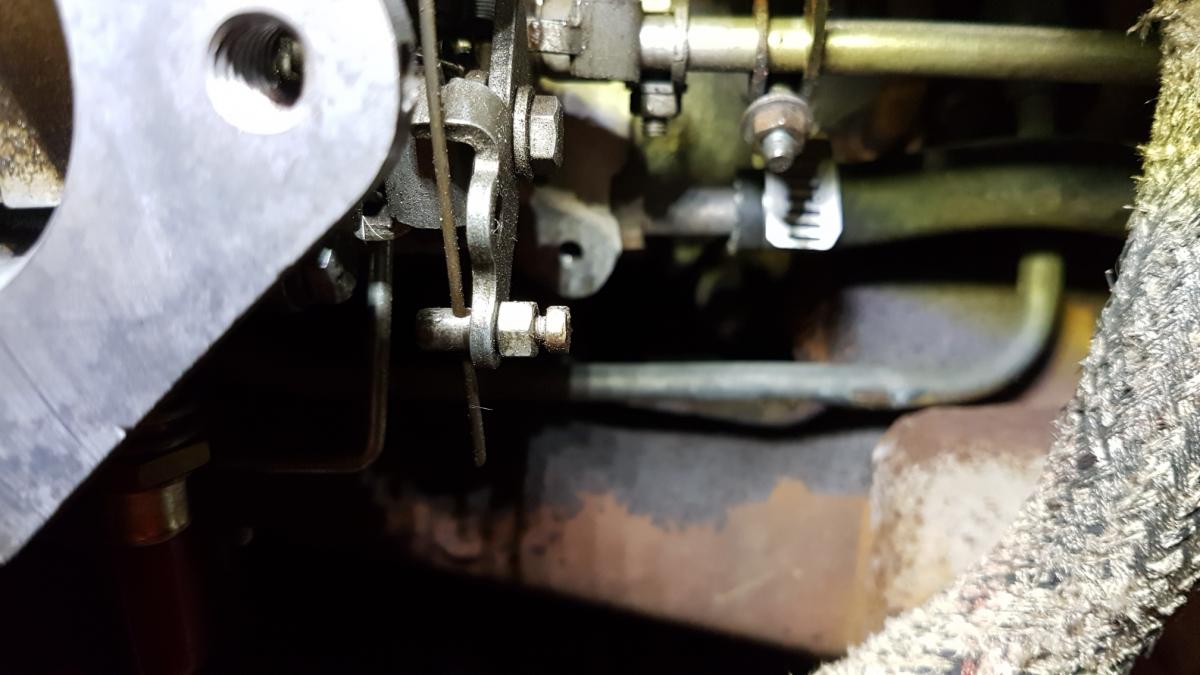

First of all, I looking the choke cable connector, missing in the first picture. I have found one online, but I am wondering if I can pick one up locally.

http://sucarb.co.uk/linkage-parts/choke-lever-connectors/cable-connector-pin-wide-hole-spacing.html

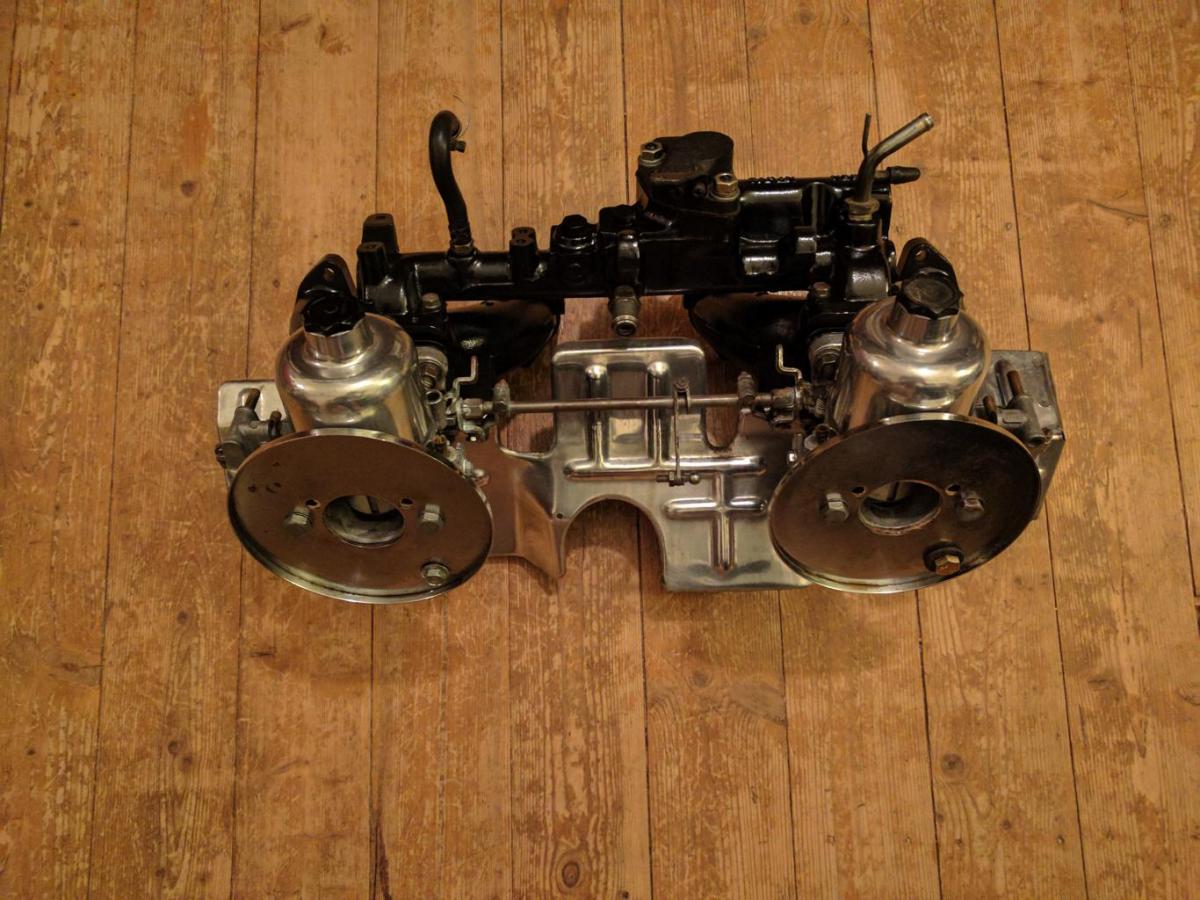

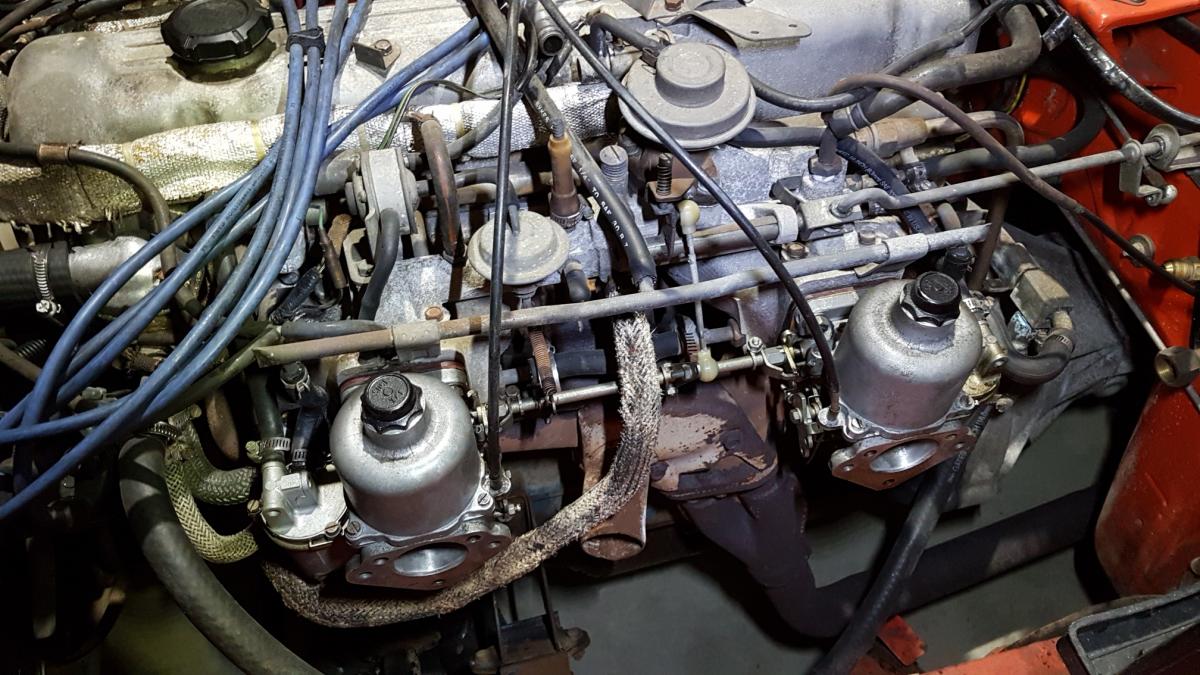

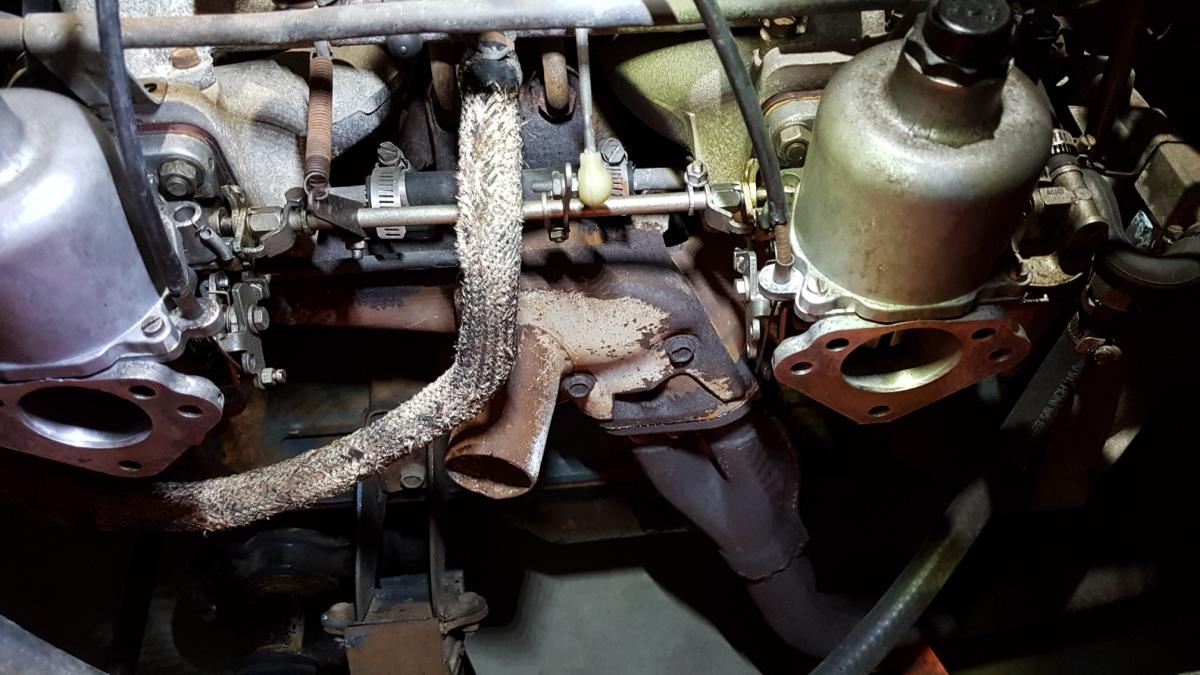

Based on photos that I have seen on other peoples carbs, I think I am missing some hose/tubes to the left (front) of the front carb, and right (back) of the rear carb as shown below. Can anyone tell me what should be here?





My last question, can I get aircleaners locally? What do you guys suggest? I have the original (blue) airbox for the flattop carbs, but fairly confident they don't bolt on. or if someone is selling the red airbox for the round top SUs?

[1600dave]

SUMidel in Sydney carry a big range of spares for British SU's - http://www.sumidel.com/



As far as hoses go, all you need is 3 per carb - one from fuel pump / fuel rail into the top of float chamber, small one to get fuel from the bottom of the float chamber to the jet on the base of the carb, and one to drain any overflow from the float chamber.

[gav240z]

Those are British SU's not Hitachi SU's and they look a little undersize based on the surface of the intake manifold and how the carbs mate up to them. I'd measure the throats to get an idea of their size.



Hard to advise on what's missing since they are off another market car. Usually it's HS6 SU's that get fitted to L-series (L24-L28's). However my experience with HS6;s is that they were not nearly as good quality as the Hitachi made SUs.



As suggested contact the website above for help with your particular model of carb.

[Andrew_L26]

Hey mate, I have a spare cable clamp that I would be happy to part with.

As for air cleaners I had a pair of "Ramflow" Filters on my British SU H6's which had a great induction noise and seemed to perform fairly well.

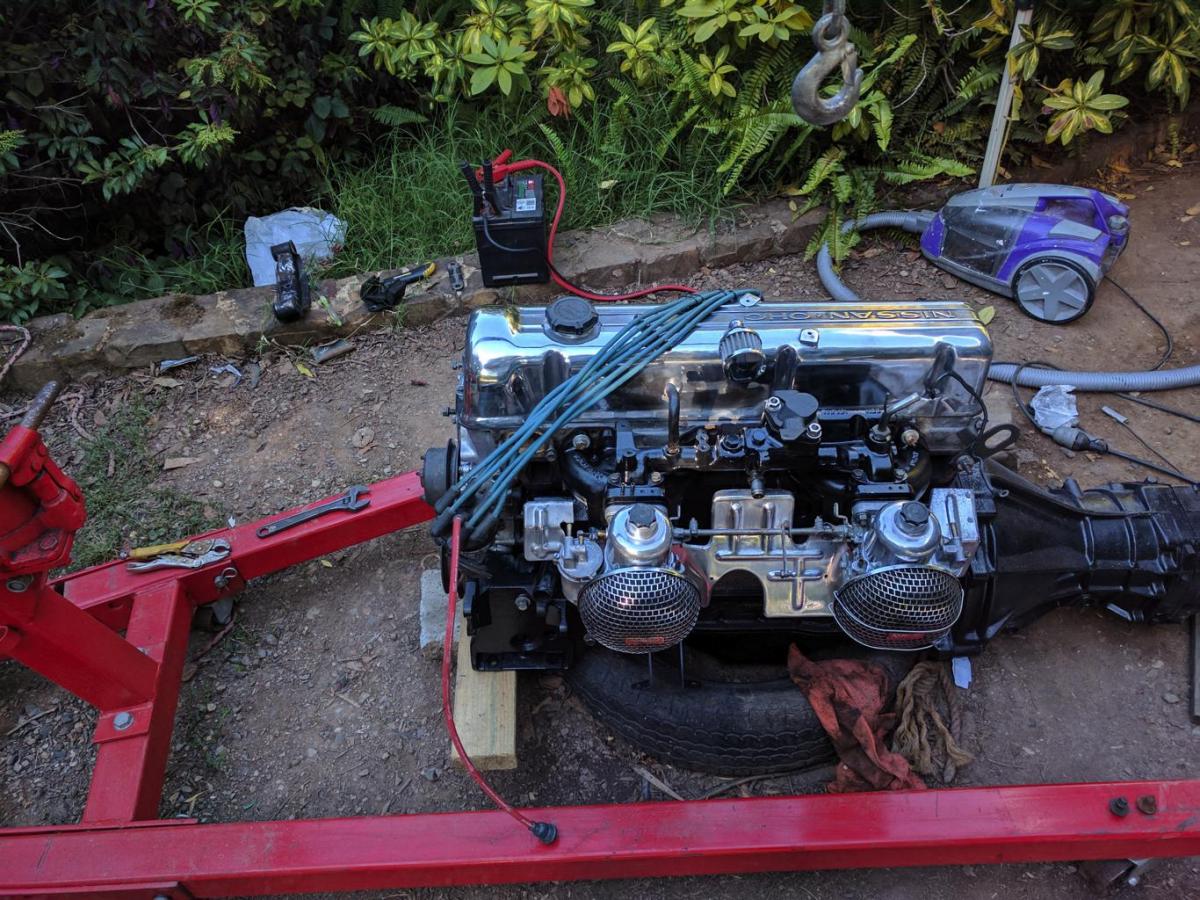

This shows how they mounted and what they look like. It would probably be possible to make something custom or re-drill your stock airbox.

[OdinZ]



SUMidel in Sydney carry a big range of spares for British SU's - http://www.sumidel.com/



As far as hoses go, all you need is 3 per carb - one from fuel pump / fuel rail into the top of float chamber, small one to get fuel from the bottom of the float chamber to the jet on the base of the carb, and one to drain any overflow from the float chamber.

Thanks Dave. I will have a look again. Its runs fine, not as responsive as i would like but thought the carbs just need a tune.

Those are British SU's not Hitachi SU's and they look a little undersize based on the surface of the intake manifold and how the carbs mate up to them. I'd measure the throats to get an idea of their size.



Hard to advise on what's missing since they are off another market car. Usually it's HS6 SU's that get fitted to L-series (L24-L28's). However my experience with HS6;s is that they were not nearly as good quality as the Hitachi made SUs.



As suggested contact the website above for help with your particular model of carb.

Thanka Gav. Will have measure and go from them. I am hoping they are not undersized, didnt want to change anything just yet. Haha



Hey mate, I have a spare cable clamp that I would be happy to part with.

As for air cleaners I had a pair of "Ramflow" Filters on my British SU H6's which had a great induction noise and seemed to perform fairly well.

This shows how they mounted and what they look like. It would probably be possible to make something custom or re-drill your stock airbox.



Hey Andrew, that'd be great. I have a feeling you might be near me too. I will pm you.

I went through some of my parts before and it seems this came with Ramflos but dont go on the mounting plate well anymore. Did u get yours locally? I assume i would need and airbox for roadworthy though.

[1600dave]

They should be OK for size, most (all??) of the smaller 1 1/2" HS4 SU or 38mm Hitachi carbs only have two mounting bolts to attach to the manifold. Yours look to have 4, which should be 1 3/4" or HS6.

[Andrew_L26]

I got mine from uniflow:

http://www.uniflow.com.au/contents/en-us/d141.html



Technically yes you will need an airbox but in most cases due to the car being fairly old it won't be an issue (depending on the inspector)



I haven't received your message yet?



Andrew

[OdinZ]

They should be OK for size, most (all??) of the smaller 1 1/2" HS4 SU or 38mm Hitachi carbs only have two mounting bolts to attach to the manifold. Yours look to have 4, which should be 1 3/4" or HS6.

yeah righteo, i will need to have another look and measure anyway.





I got mine from uniflow:

http://www.uniflow.com.au/contents/en-us/d141.html



Technically yes you will need an airbox but in most cases due to the car being fairly old it won't be an issue (depending on the inspector)



I haven't received your message yet?



Andrew

Hey Andrew, sorry mate, sent you a message earlier today, wasnt online much over the weekend with our football (soccer) commitments.

Thanks for the link, probably going to order a set in the next day or so.

[OdinZ]

Those are British SU's not Hitachi SU's and they look a little undersize based on the surface of the intake manifold and how the carbs mate up to them. I'd measure the throats to get an idea of their size.



Hard to advise on what's missing since they are off another market car. Usually it's HS6 SU's that get fitted to L-series (L24-L28's). However my experience with HS6;s is that they were not nearly as good quality as the Hitachi made SUs.



As suggested contact the website above for help with your particular model of carb.

Hey Gav,

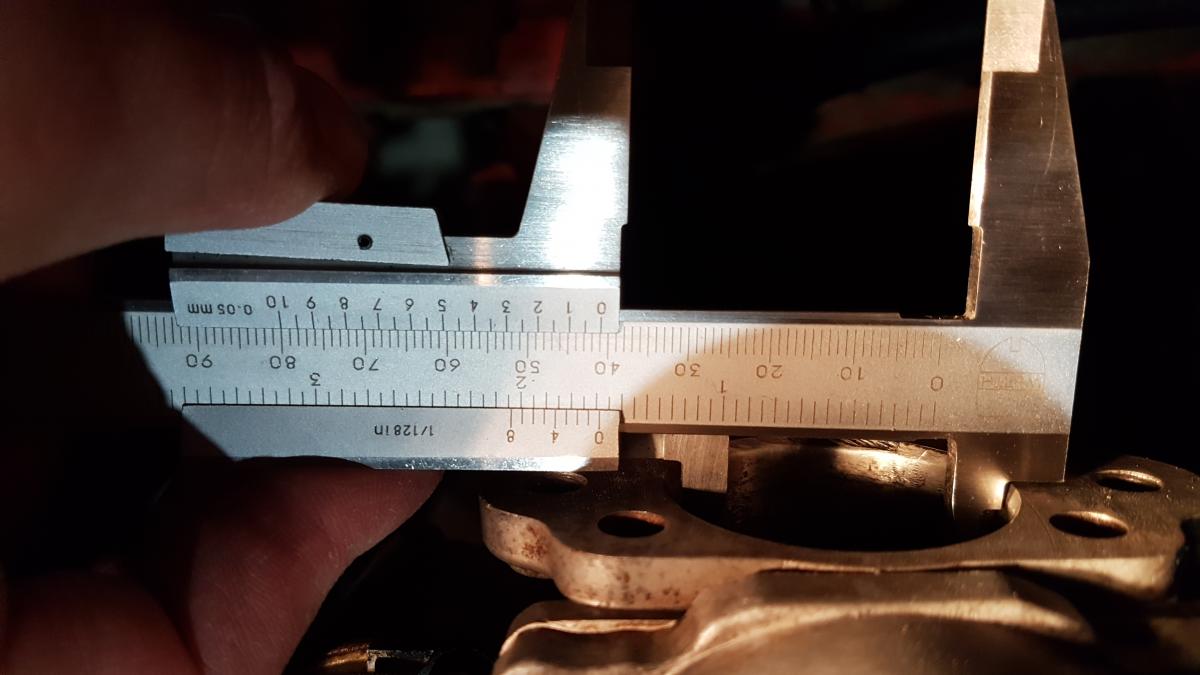

Is this what you meant about measuring the throat, seems the larger size.

[OdinZ]

They should be OK for size, most (all??) of the smaller 1 1/2" HS4 SU or 38mm Hitachi carbs only have two mounting bolts to attach to the manifold. Yours look to have 4, which should be 1 3/4" or HS6.

Hey Dave, definitely 4 bolts onto the manifold.



Also, "AUD 9" is stamped on the side of the carbs, and "AUD 3347" on the float chambers if that means anything to anyone here

[1600dave]

AUD numbers are mostly part numbers for the individual parts of the carb.



If there is a little aluminium tag under one of the float chamber lid screws, it will have a number stamped into it that can be used to identify what the carbs originally came off. Mine, for instance, were off a Triumph Dolomite.

Edited August 4, 2017 by 1600dave

[gav240z]

Hey mate,

I'll measure the throats on my spare SUs tonight if I can remember and will post a photo if possible.

[OdinZ]

Hey mate,

I'll measure the throats on my spare SUs tonight if I can remember and will post a photo if possible.

Hey Gav,



Dont stress mate, it probably doesnt make any difference at the moment, the sizing seems ok, and like i said it runs well enough for now. I will eventually call SUMidel.
