Photo Of Fusebox/relay Area

[jjjoel]

Hi all, my first question!

Can anybody help me out with some CLEAR and legible photos of that area in the footwell of 260 that has fusebox, relays, hoodpull etc. so I can refit?

I took a stack of photos with the ipad - but alas, they are crap and barely visible!

I removed them all to get kickpanel out, and now are dangling like a bunch oh grapes from the bottom side of dash.

Any help/info/redirection to a site will be greatly appreciated.

Thanks

[PB260Z]

Hi



I will grab a couple from car when I get back to Sydney later in the week.



Cheers



PB

[gilltech]

Doesn't the cardboard kickpanel indicate where the various bits and pieces reattach? They can only go in certain places due to the screw or bolt centres.

[PB260Z]

Hi

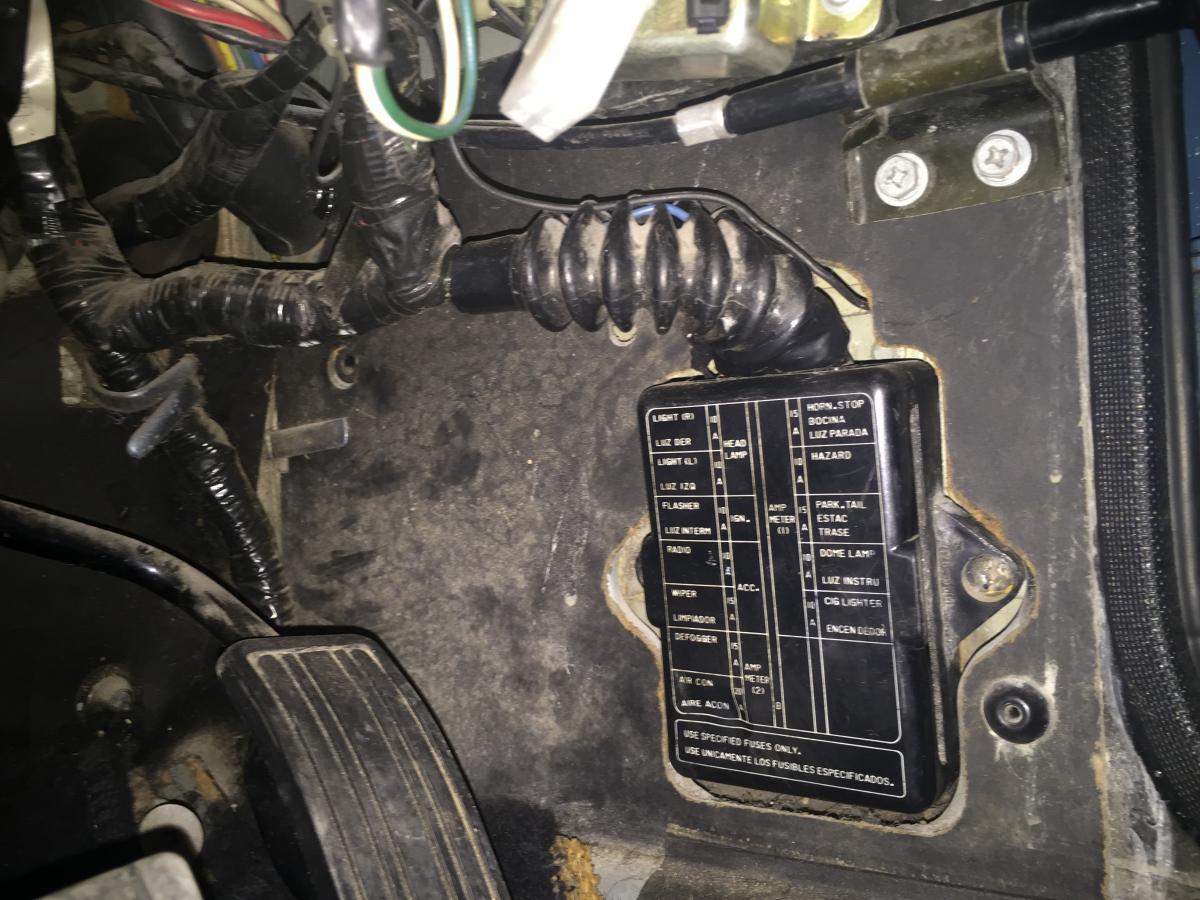

Hopefully these will help

[PB260Z]

Another one

[PB260Z]

Last one, let me know if you any specific detail.

[jjjoel]

Doesn't the cardboard kickpanel indicate where the various bits and pieces reattach? They can only go in certain places due to the screw or bolt centres.

Yes, good point.  Although I have to admit that I haven't rummaged through the parts boxes to check for that.  Thanks for the heads-up  re. specific kickpanels. It's been a loooong while since de-construction!

[jjjoel]

Last one, let me know if you any specific detail.

Thanks so much for the photos - exactly what I needed. All-be-it, I think the auto may have additional relay(s).  I will now have to wait til weekend to inspect in the daylight.  Cheers.

[PB260Z]

Thanks so much for the photos - exactly what I needed. All-be-it, I think the auto may have additional relay(s).  I will now have to wait til weekend to inspect in the daylight.  Cheers.

My car was originally an auto. I didn't remove any relays etc with converting.

I actually some wiring to support the EFI.



Cheers



PB
