Splash shields - Front guard/fender?

[PeterAllen]

I am fitting a fibreglass front guard/fender, however, I am securing the botton edge about 50mm out from the original mounting points - incorporating a new wider sill/rocker - and I need to make a new splash shield.



I don't have an original guard/fender and the workshop manual doesn't show any splash shields. Is the shield attached to the guard/fender or is it a separate item which attaches to the main body?



I think it might be part #81 here:

http://www.carpartsmanual.com/datsuns30/DatsunZIndex/Body240Z/FrontFenderHood/tabid/1750/Default.aspx

[MaygZ]

It attaches to the body.  A small piece of rubber that stops leaves and mud getting out, so causes rust to build up behind it

[Scoota G]

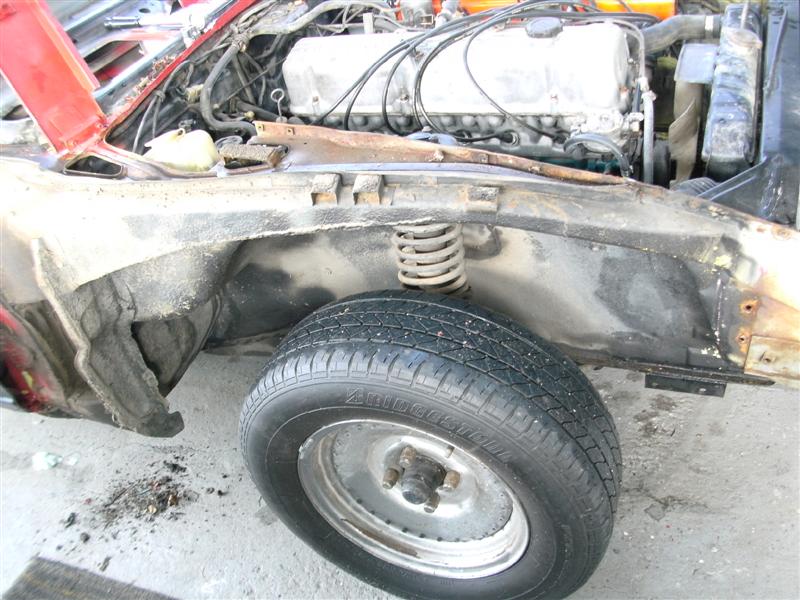

The splash sheild is attached to the body via three 10mm bolts. Or it will be welded on if the car has been to a panel shop.

[MaygZ]

My confusion    I was thinking of the small rubber bit at the bottom of the steel shield.

[PeterAllen]

Excellent... Thank you.

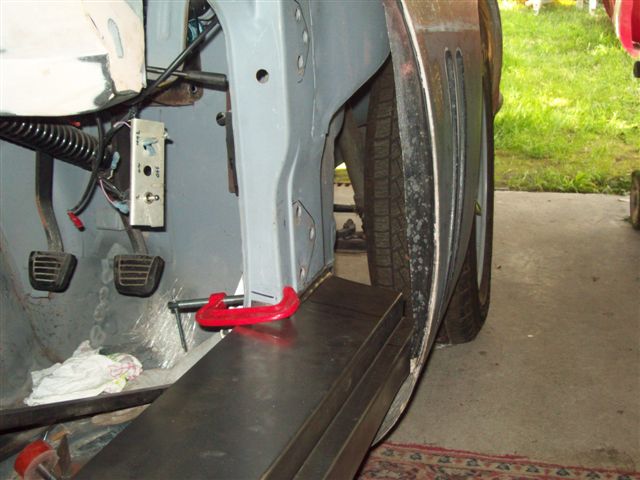

I was confused by the web section near the rear edge of the guard but I guess that just a strengthening rib which maintains the guard profile but doesn't attach to the main body?

[Scoota G]

That section does attach by two 12mm bolts, one hidden by the door and the other under the gaurd.
