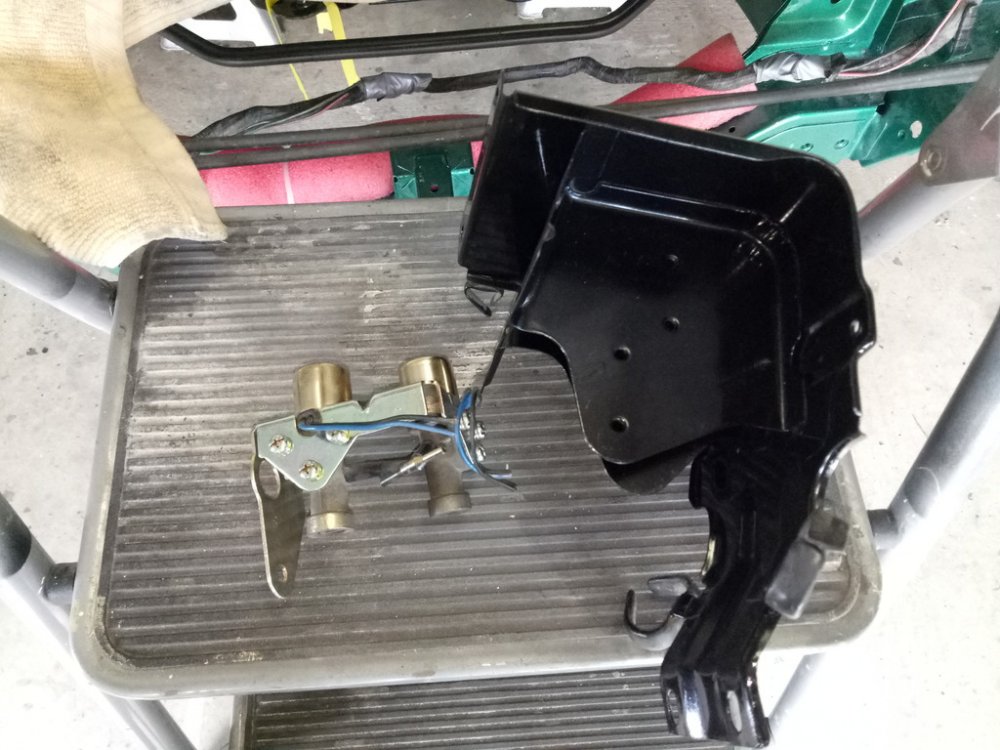

Groundhog Posted April 29, 2018 Posted April 29, 2018 Can anyone help with a photo of how these vacuum solenoids are mounted?A lost a lot of photos with a phone crash.I have a vacuum reservoir bottle to fit as well , however I need help on how this solenoid bracket fits with the black mounting bracket.Thanks in advance.GH Quote

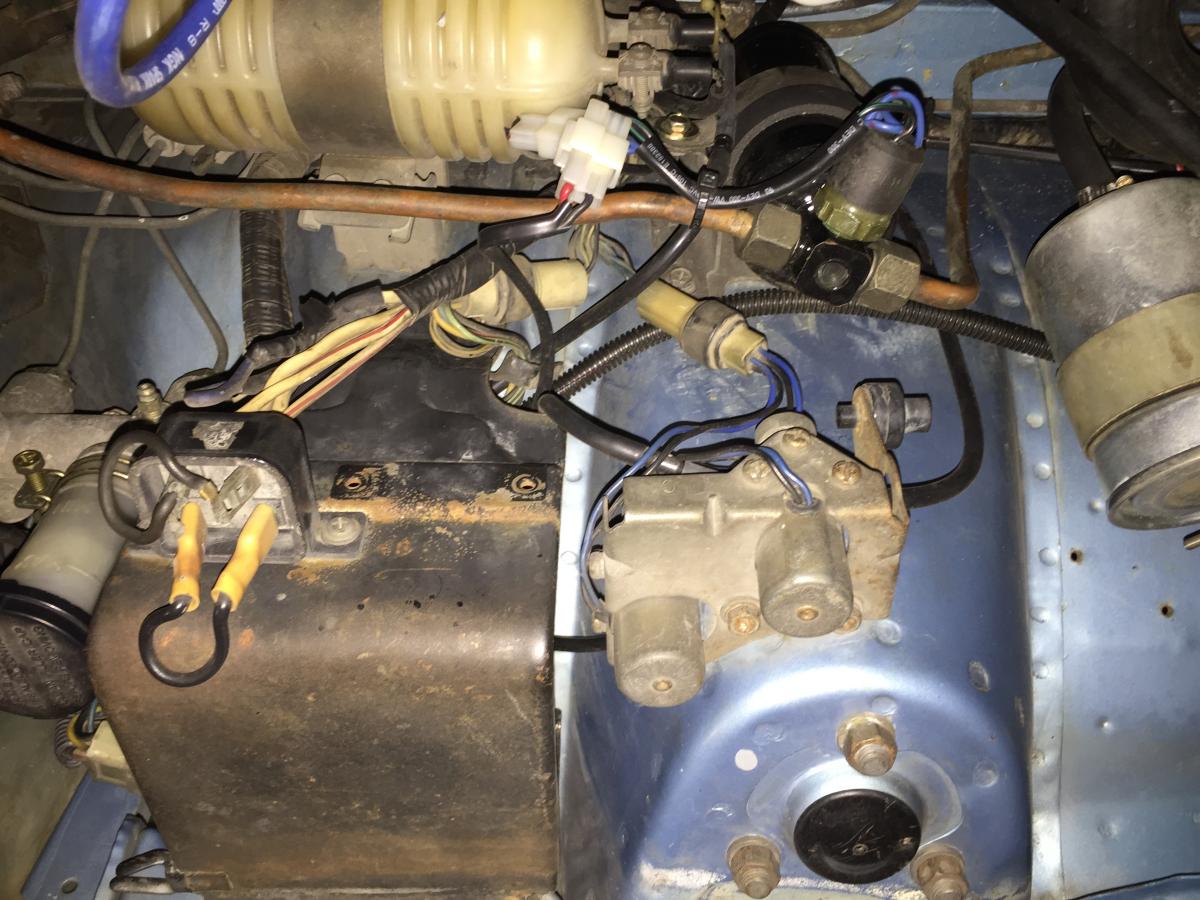

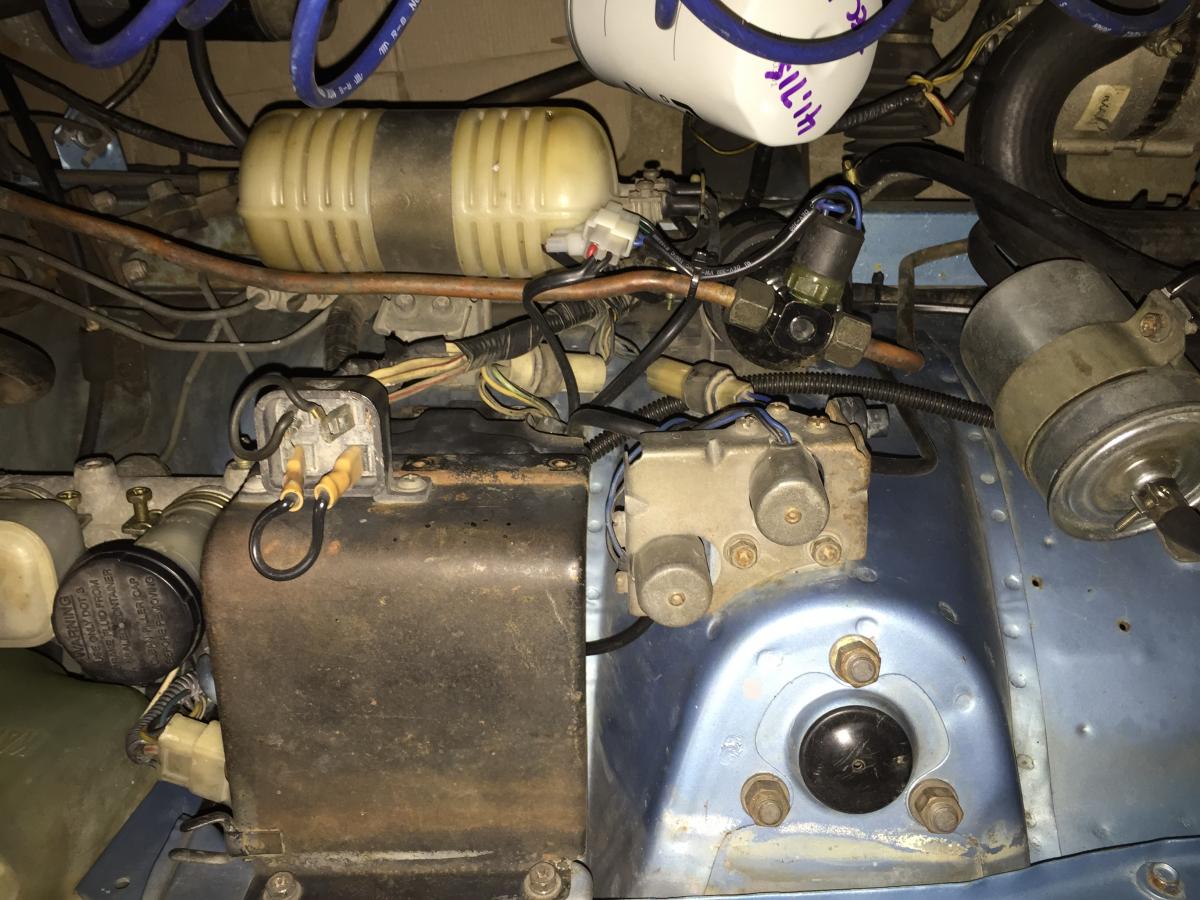

Moderators PB260Z Posted April 29, 2018 Moderators Posted April 29, 2018 Hi The attached images show how the bracket and solenoids are mounted in my '77 2+2. The vacuum bottle in mine is near the chassis rail, but some cars have it near the strut, I suspect the fact that my car has charcoal canister is the reason for the bottle being down near the rail. I also have a copy od the vacuum line schematic if you need it. Cheers PB Quote
Groundhog Posted April 29, 2018 Author Posted April 29, 2018 (edited) Brilliant. Just what i was after. yes please for the vacuum schematic and any other info on the A/C.Thanks for diagram PB260Z. Couldnt do it without it.GH Edited April 30, 2018 by Groundhog Quote

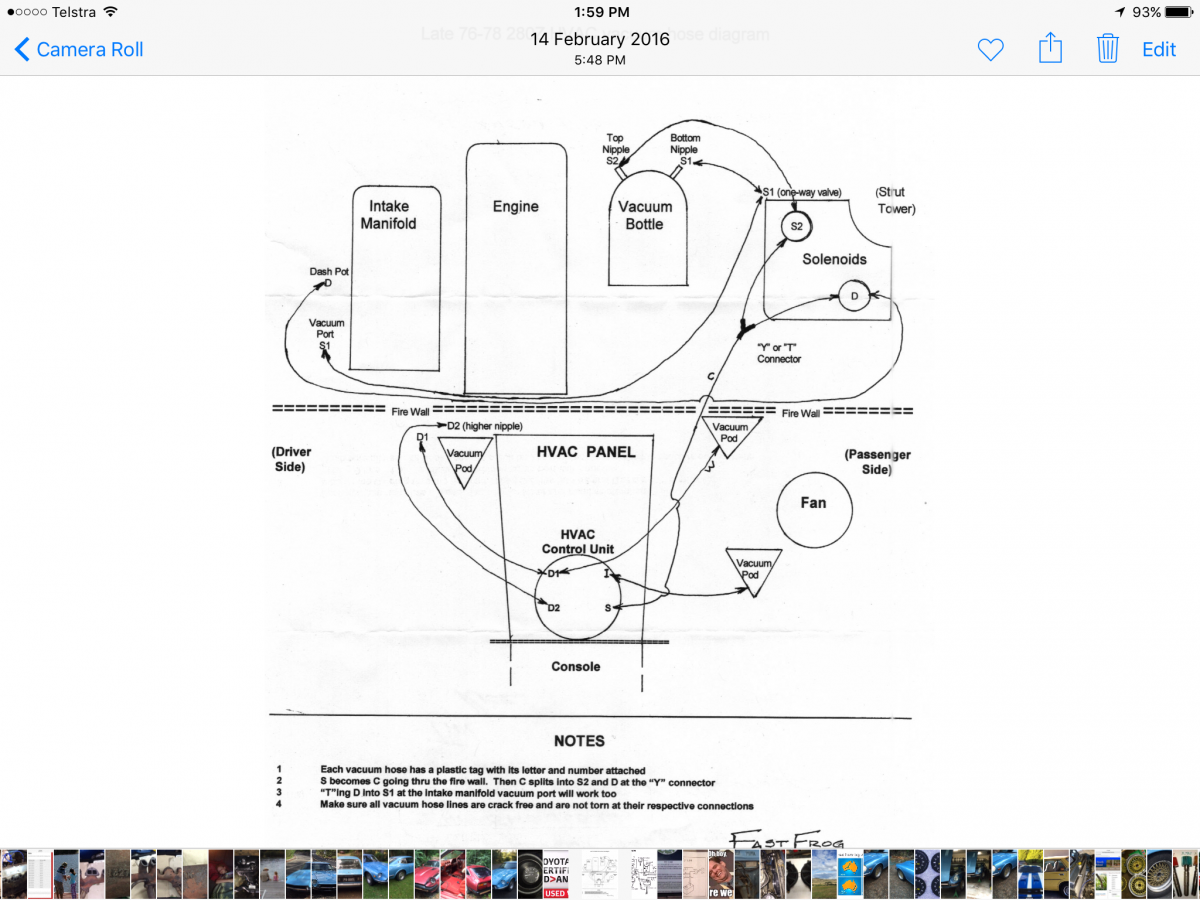

Moderators PB260Z Posted April 30, 2018 Moderators Posted April 30, 2018 Try this. BTW the one way valve is important. Groundhog 1 Quote
