2+2 Seat Hinge Cover

[Groundhog]

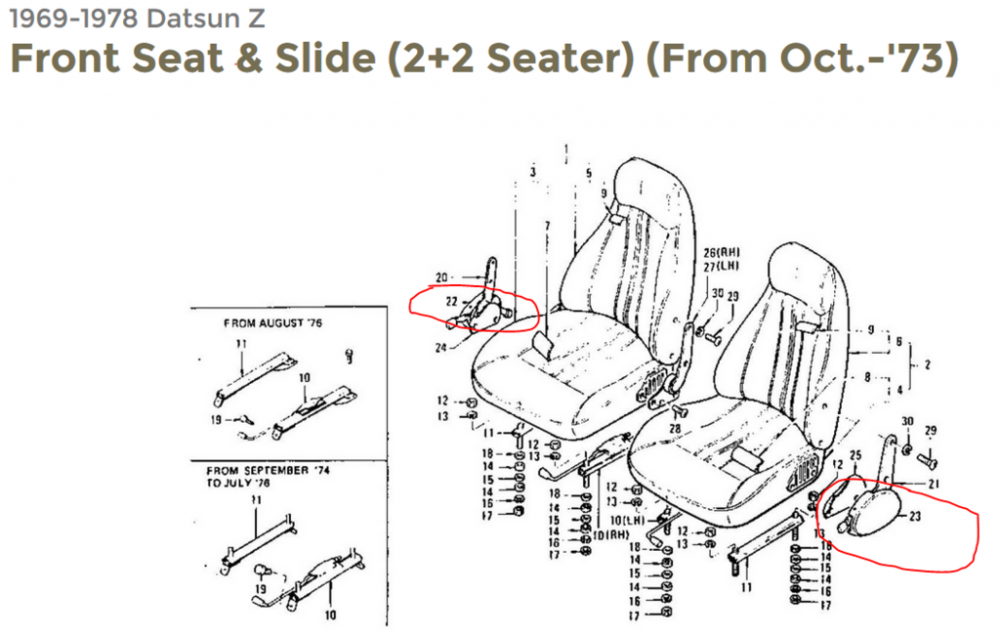

I'm chasing some seat hinge covers for my 2+2 seats. Left and right. They are items 22 and 23 on the diagram.

Late 260Z  covers with the seat hinging forward may fit. (EDITED)
22 COVER-DEVICE, OUTER R

23 COVER-DEVICE, OUTER L





Edited September 25, 2016 by Groundhog

[gilltech]

My 2-seater seats hinge forward, are the seats not the same?

These seat mechanism covers are weak plastic & held on by just three tiny screws, would be handy if they could be cast up in something stronger like fibreglass.

[Groundhog]

For 260Z from Aug 76  the part numbers are
Right

86475-N4700

And Left

87475-N4700

For 260Z 2+2 from Aug 76  (my car is 77) the part numbers are
Right

86475-N4720

And Left

87475-N4700

So it appears that the Left hand cover is the same for  260Z and 260Z 2+2 after Aug 76.
The right hand cover has a different number however I'd guess that it fits. So late 260Z covers fit left and maybe right.
I'm willing to take late 260Z covers also.

Edited September 25, 2016 by Groundhog
