Late 260z 2+2 wiring diagrams

By pauly_adams
October 10, 2024 in Electrical systems

Share

https://www.viczcar.com/forums/topic/36223-late-260z-22-wiring-diagrams/

Recommended Posts

Rookie

pauly_adams

Posted October 10, 2024

Posted October 10, 2024 (edited)

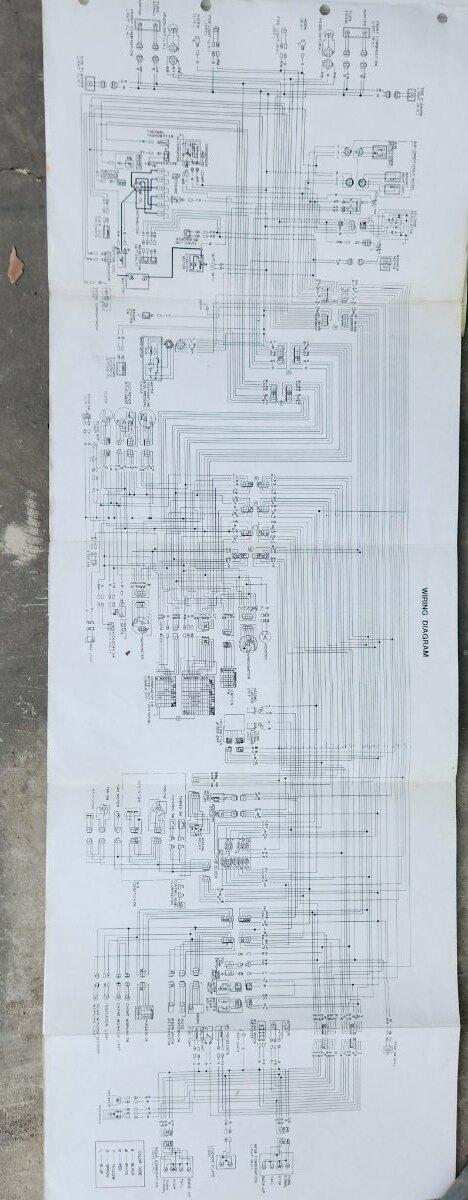

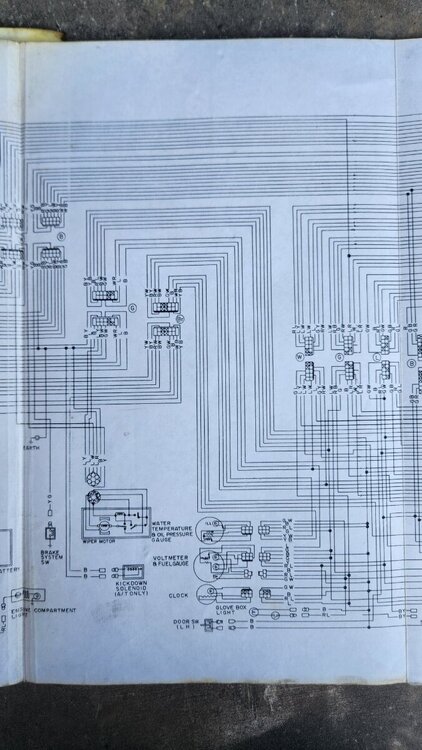

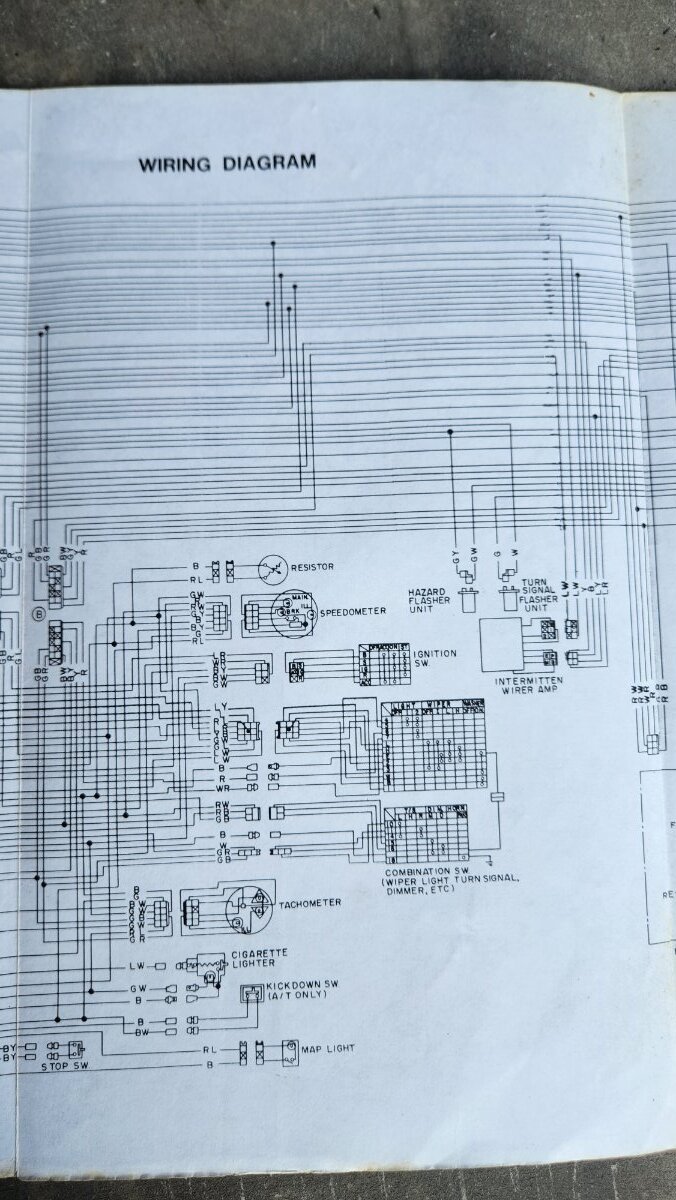

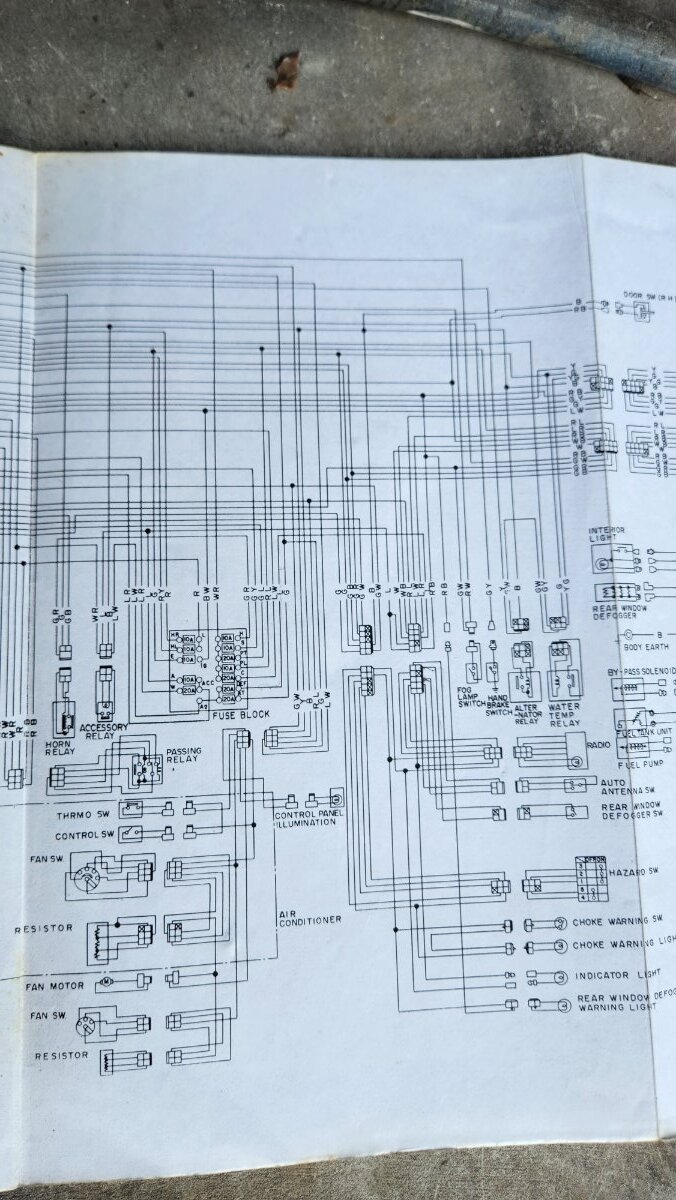

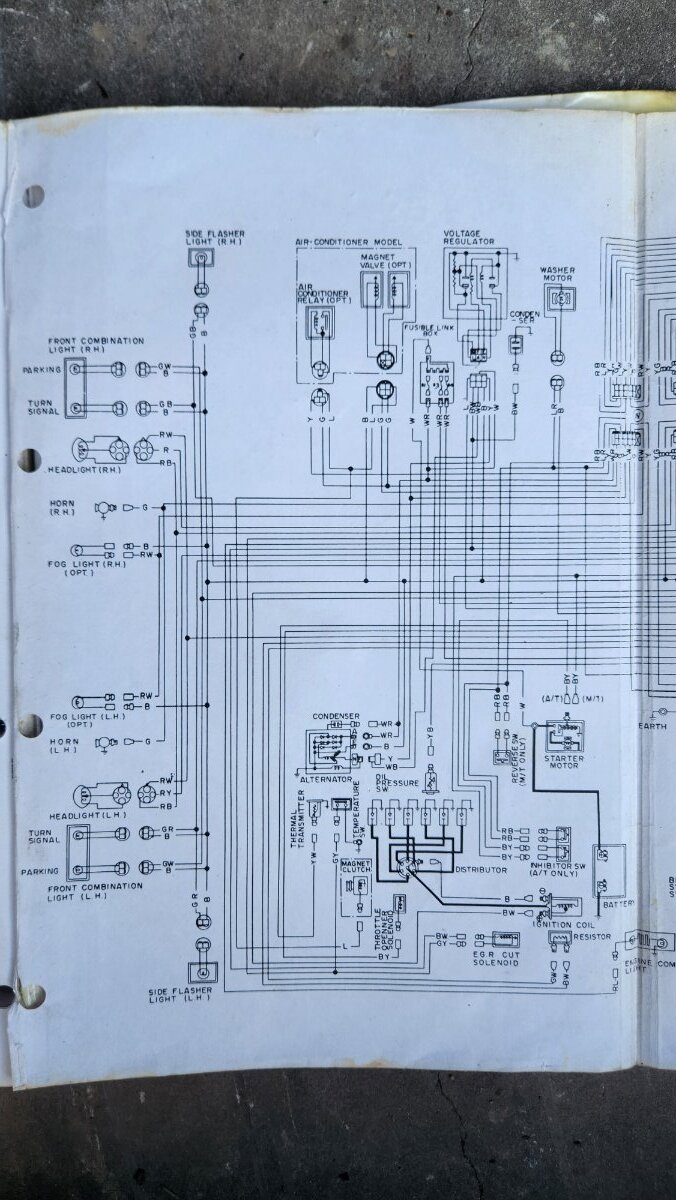

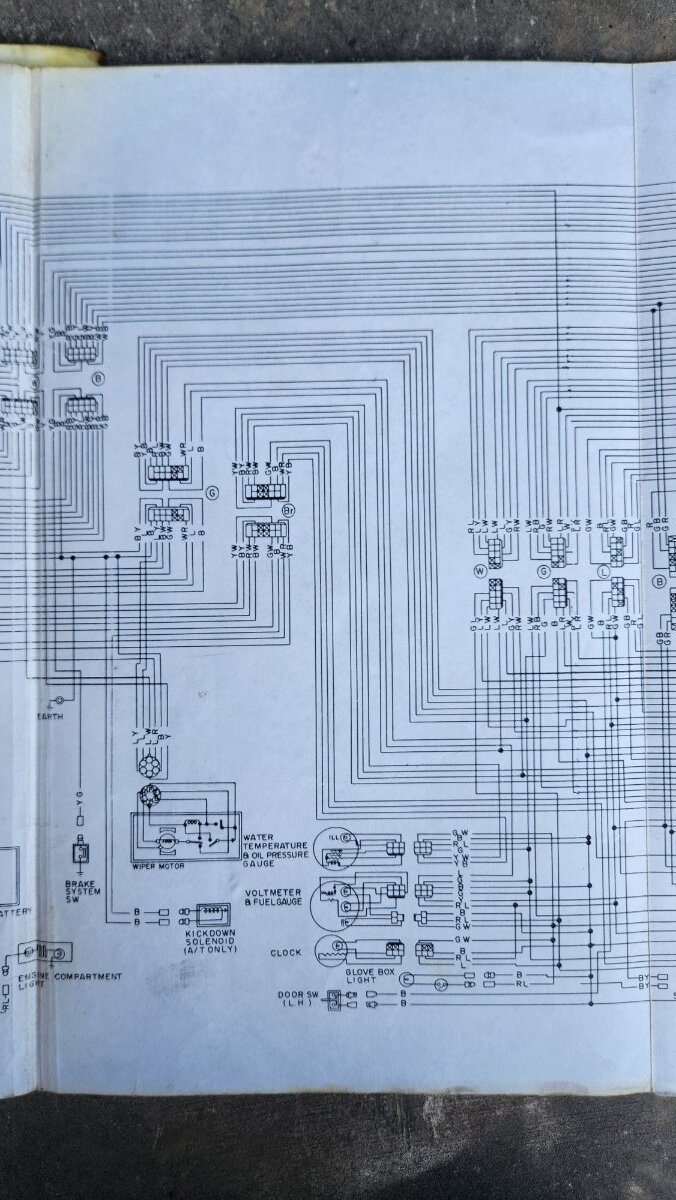

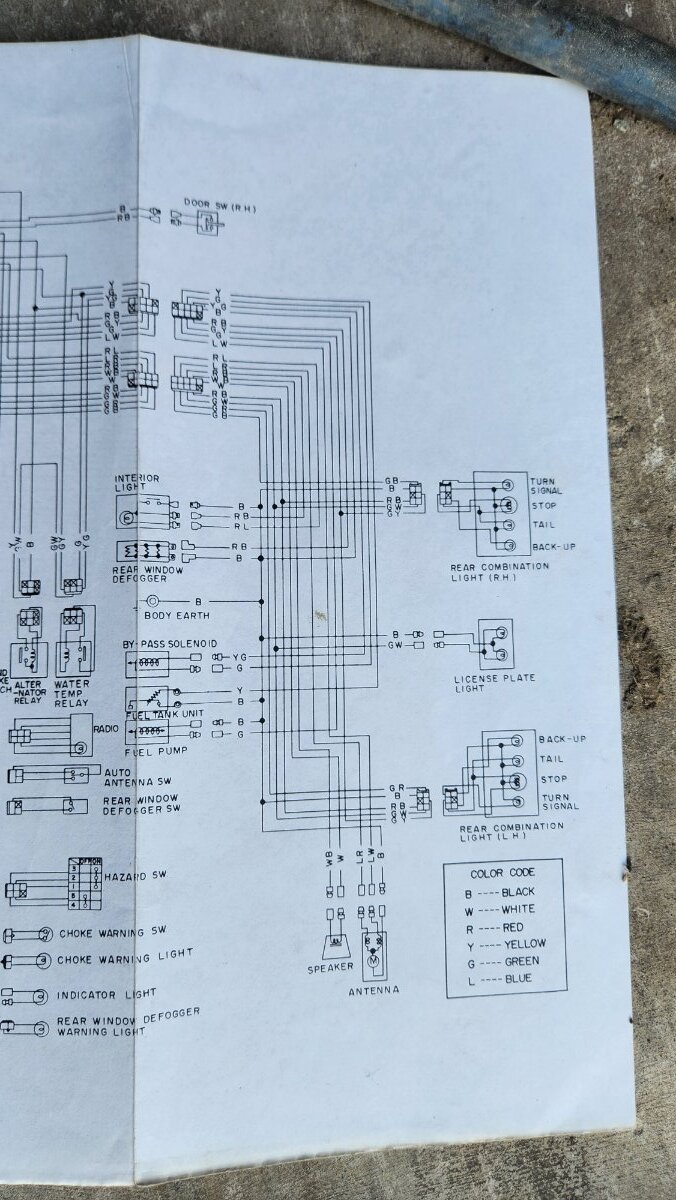

Hi all, I figured i would post some pictures of wiring diagrams here, these are later Australian delivered 260z 2+2 wiring diagram, they suit mid 76 to 78.

Edited October 10, 2024 by pauly_adams
Higher resolution picture
