Dry or wet weight David?

Being a 240z they are lighter than the 260’s and that iron L6 being replaced by alloy would also help

Ive got 35kg in the ladder chassis, will be another 8kg in those rails, lpg donut tank a good 5kg extra the diff will have another 3kg extra, AMG seats another 10kg, planned rear inner interior mods and reo probably 10kg

Thats 70kg just there on top of the original 1,100 kg 260 wet weight

Link to comment
Share on other sites

Semi dry or wet depends on how you look at it....glass half full? 1080 kg was the weight with what ever was in the fuel tank which wasn't much so call it dry.

M3 engine is still an iron block. Internets says that M3 engine is only a few kg's heavier than L 6, but I've got R200, and Skyline brakes which are much heavier so STD 240Z weight of 1045 plus my add ons makes 1080 seem spot on.

Link to comment
Share on other sites

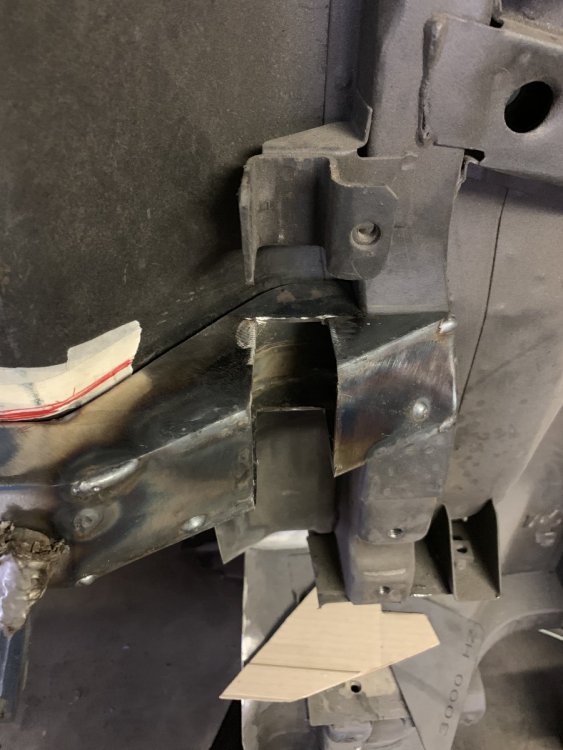

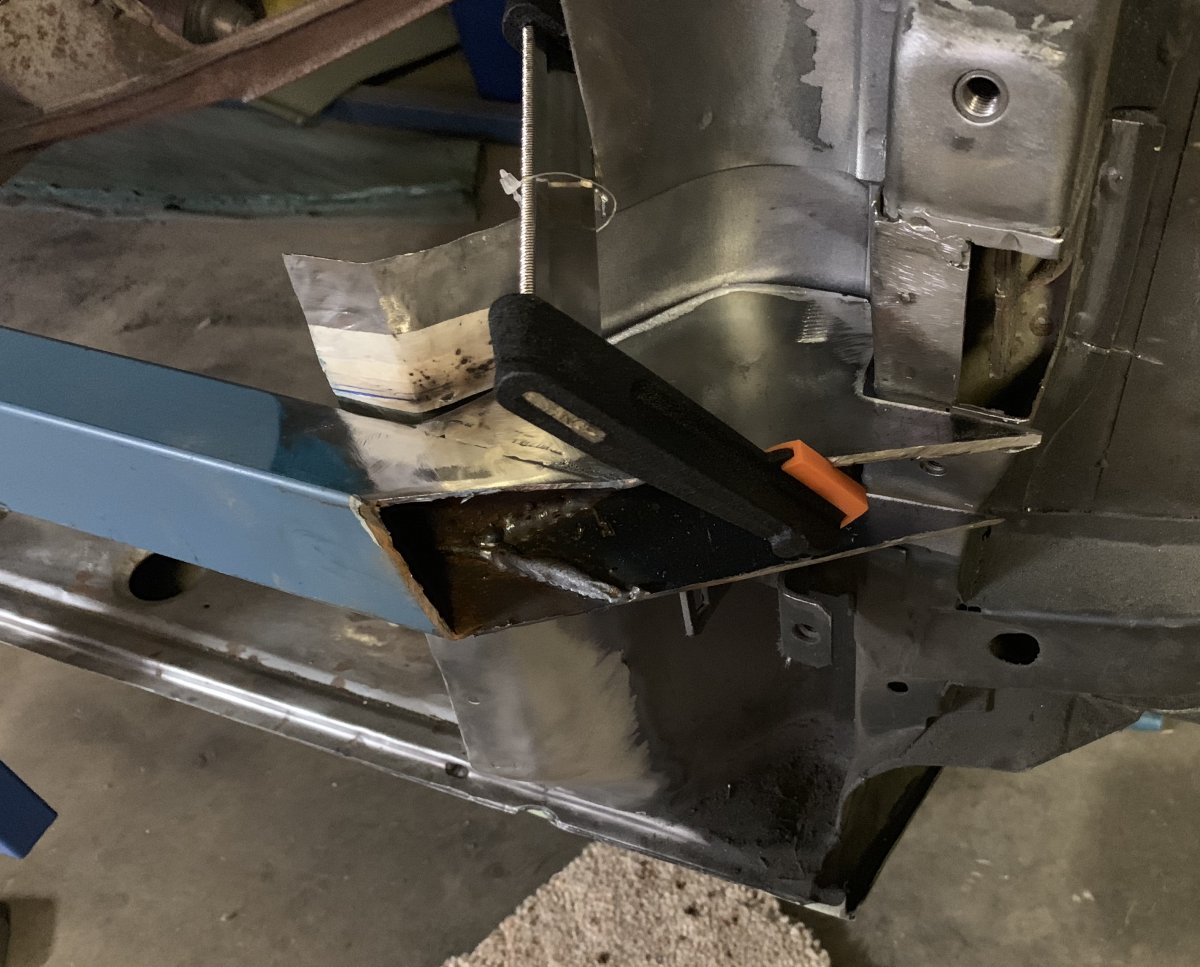

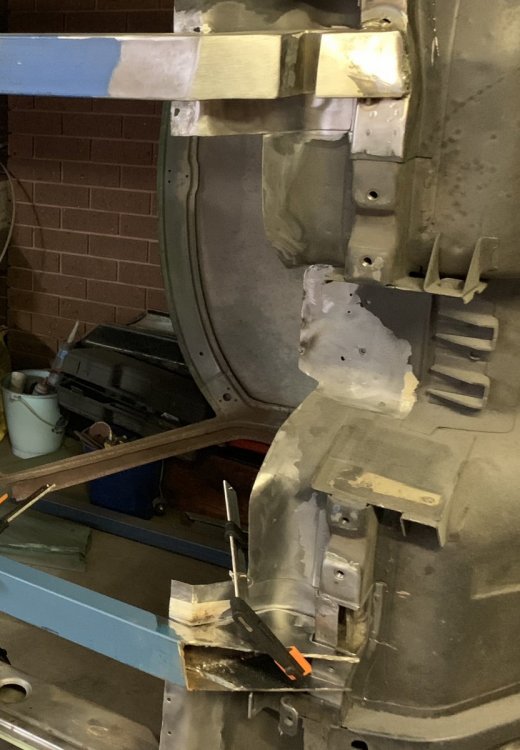

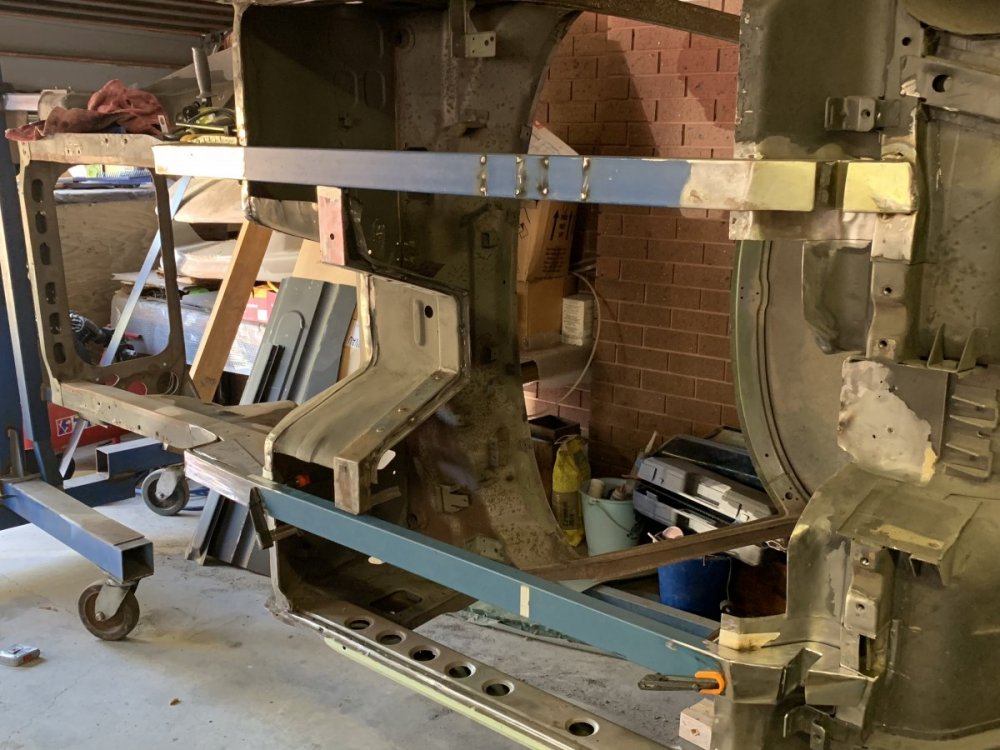

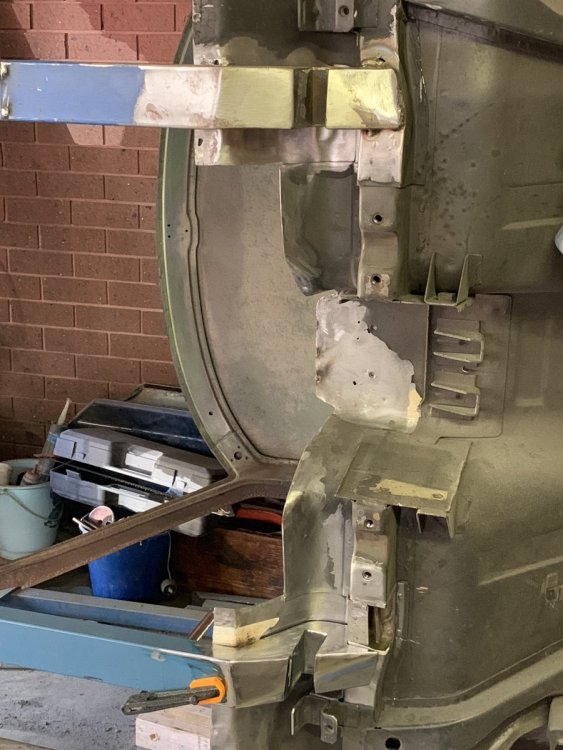

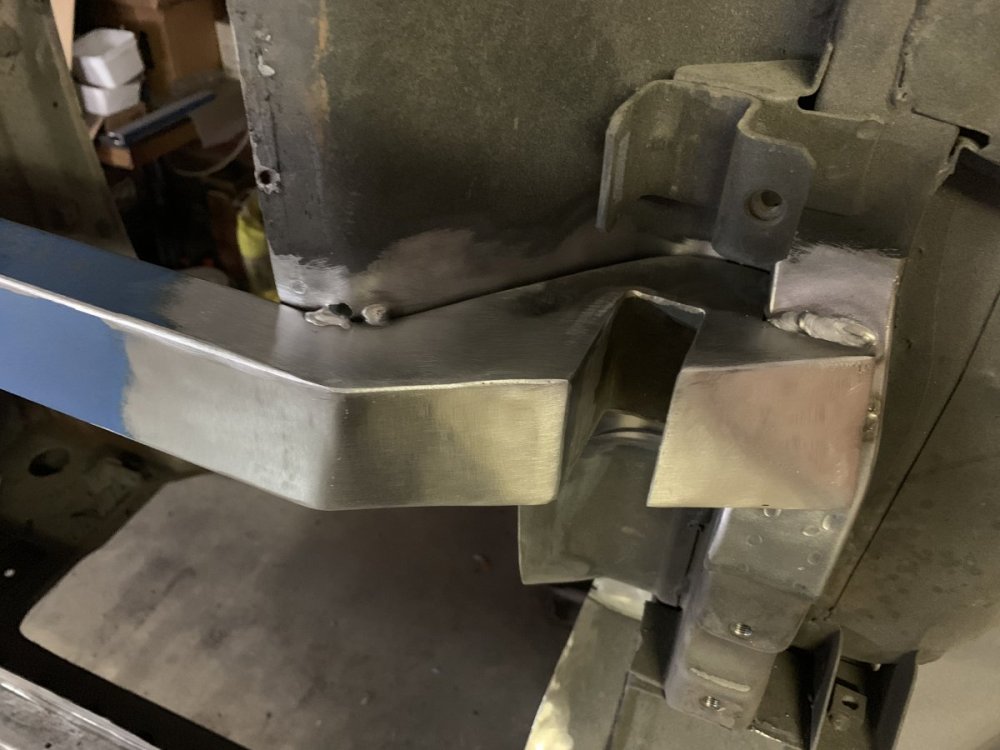

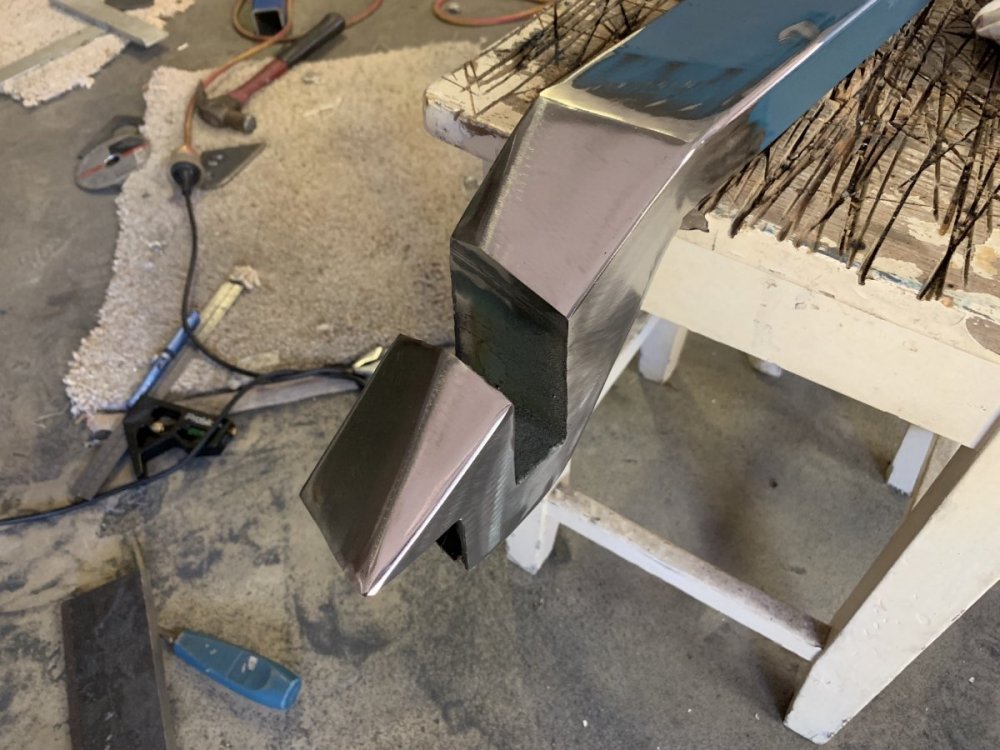

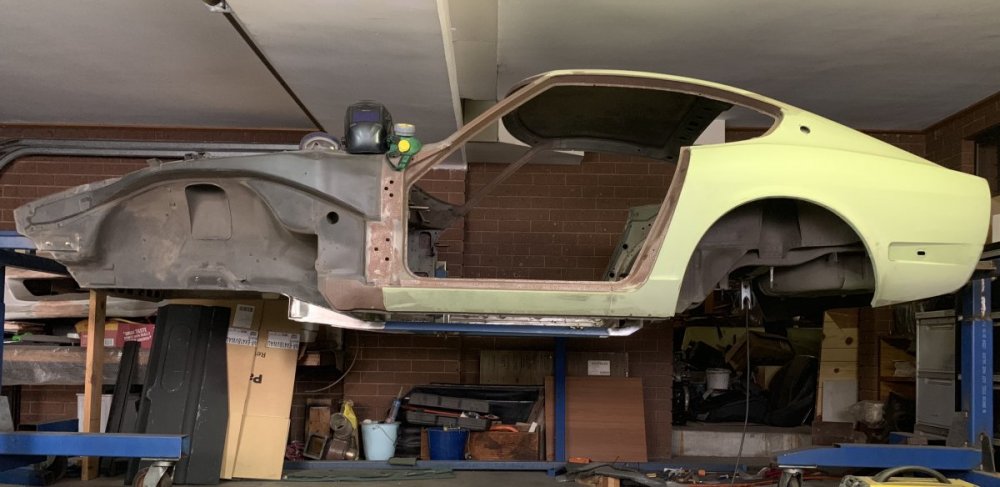

Notched out the roll bar area and added and RHS section for streangth due to its now dog leg shape

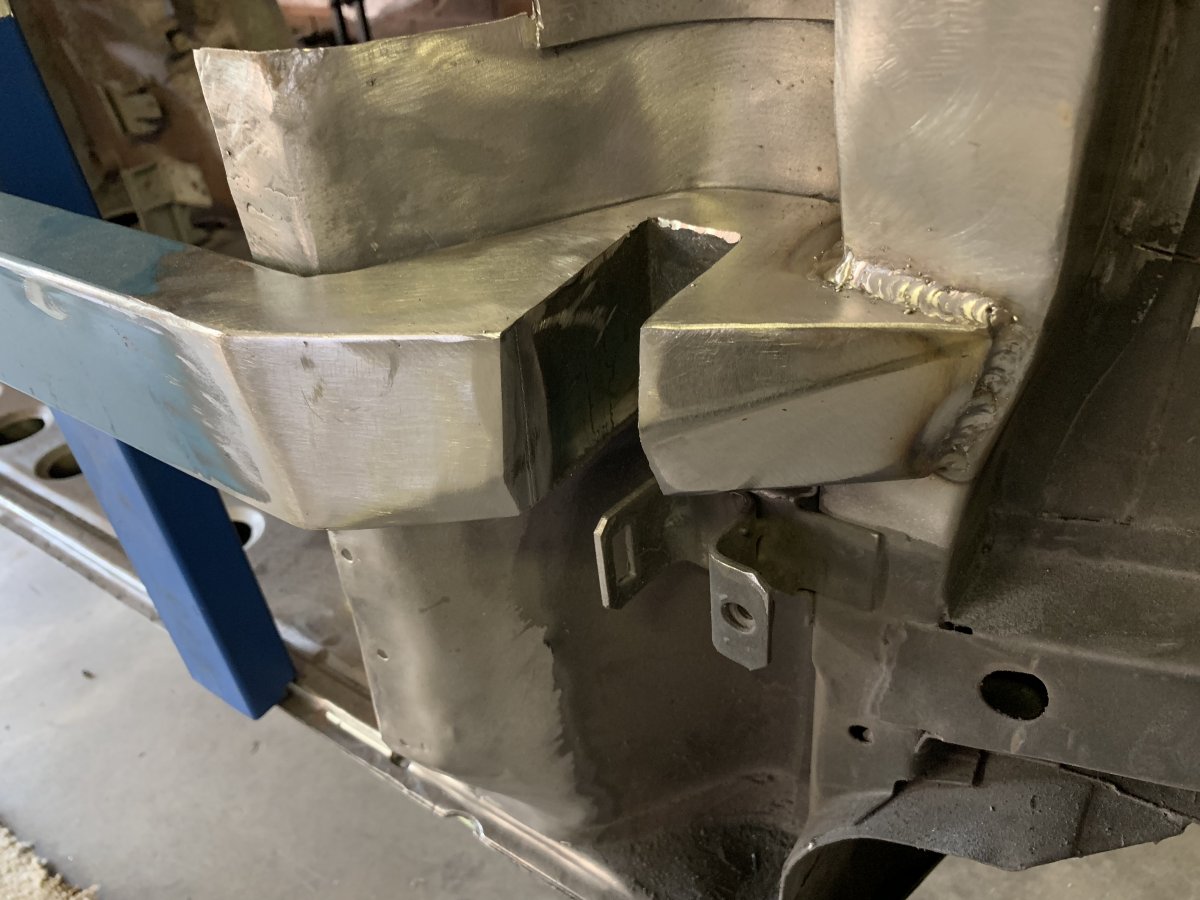

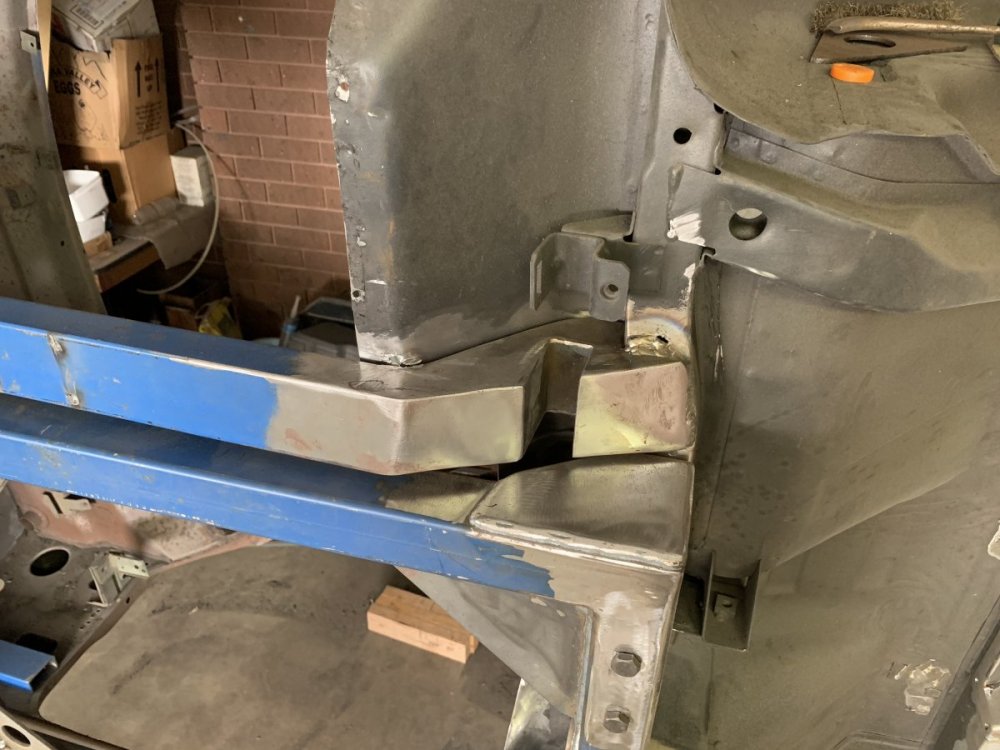

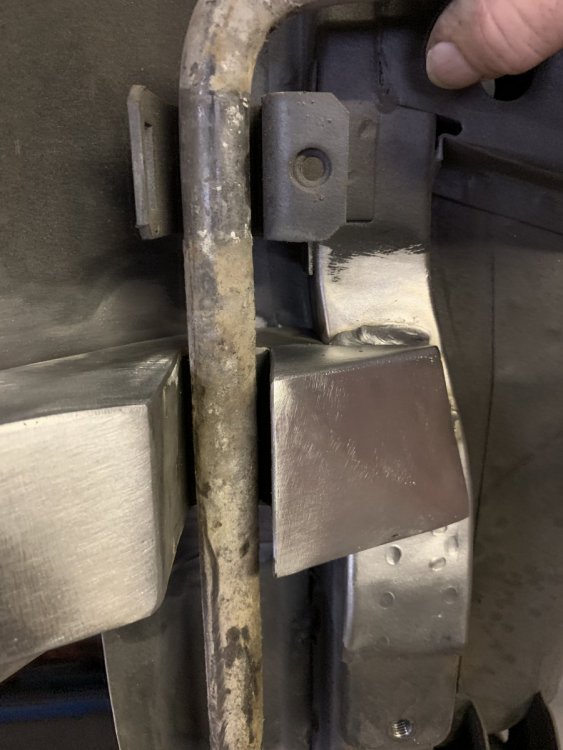

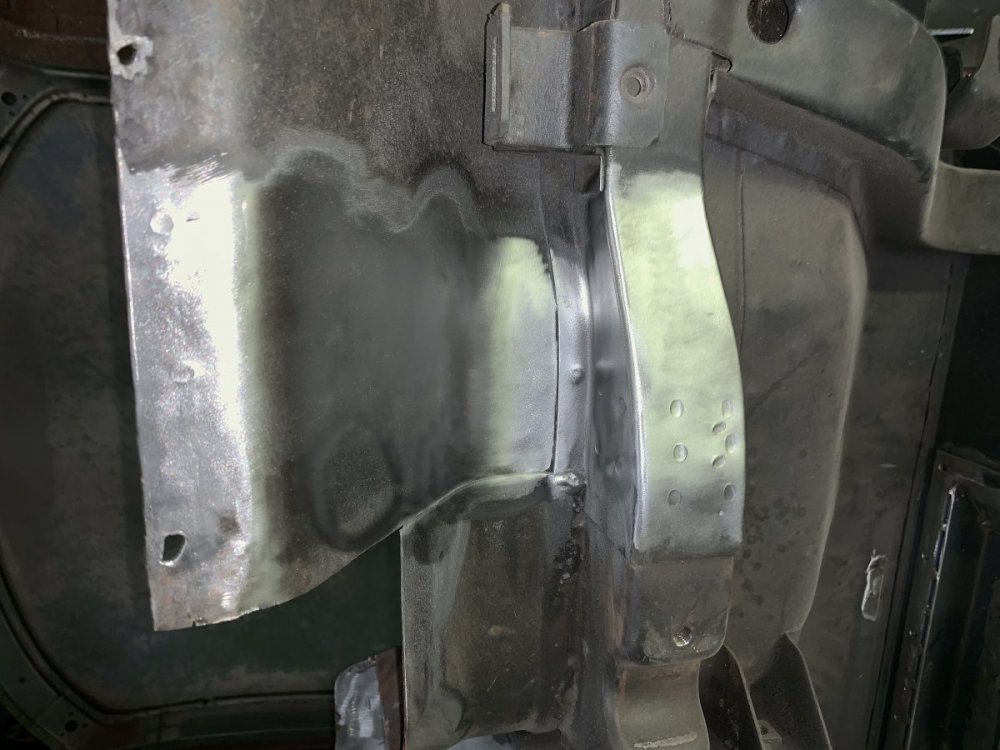

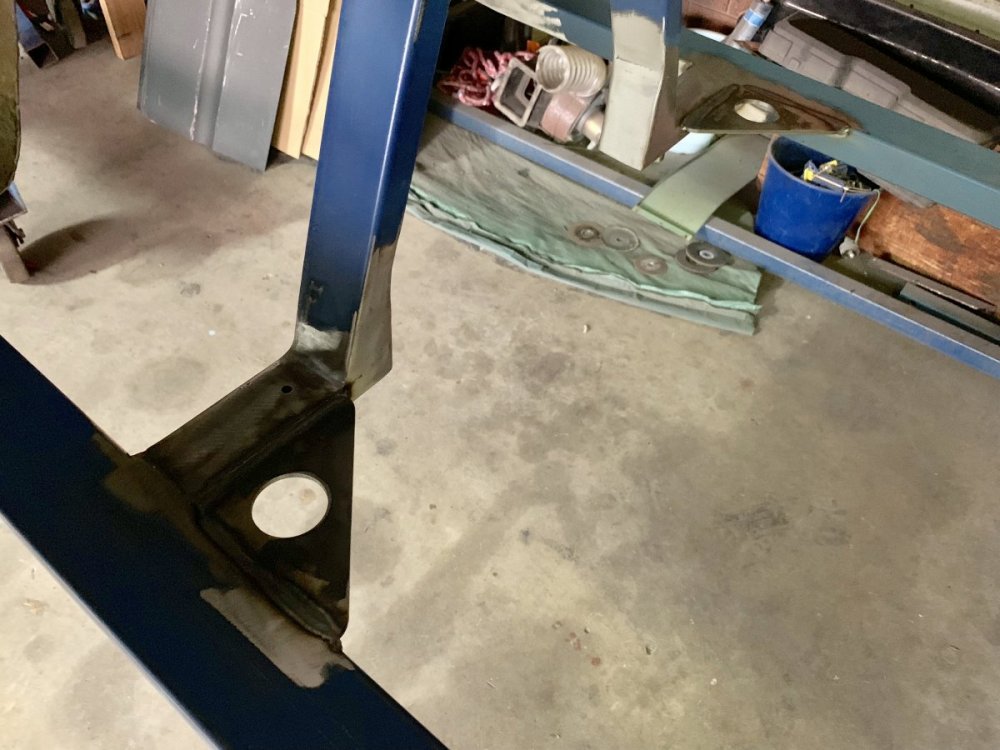

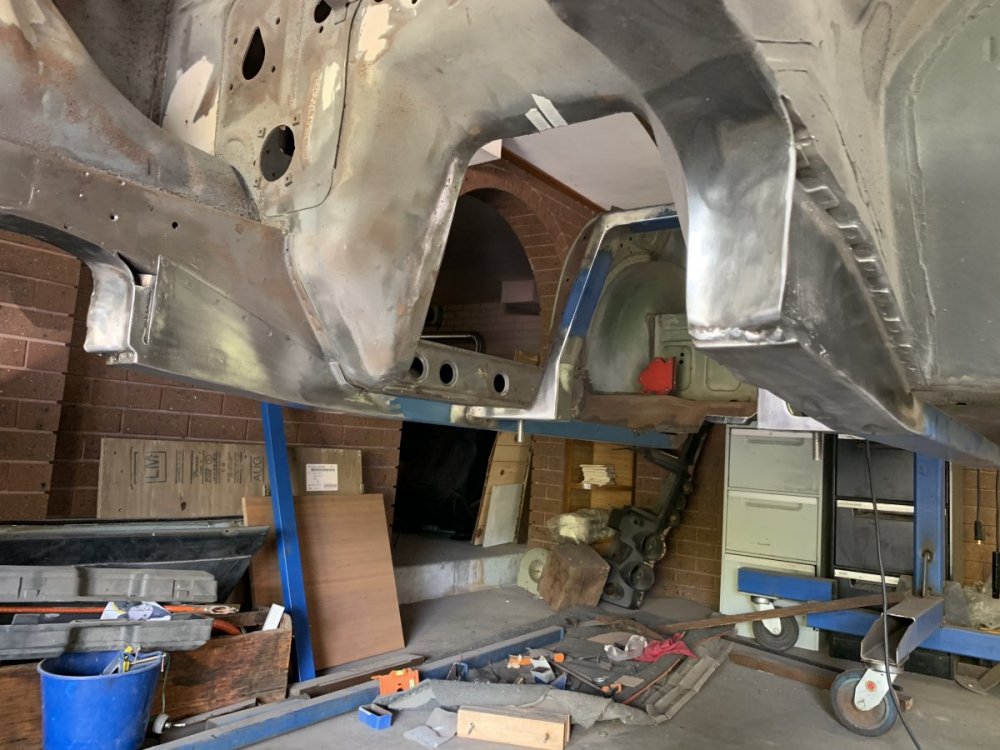

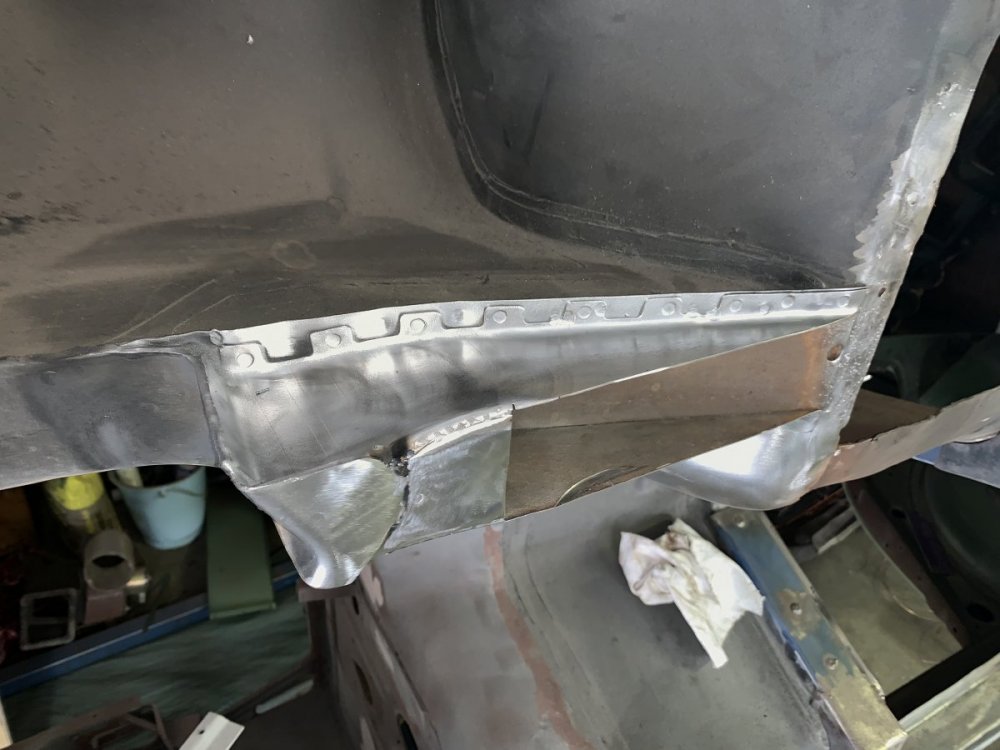

The front graft welded up brilliantly and as the new rail section is securely welded to the remains of the lower torsion rod mount I don’t think I will have to plate it with a gusset to reinforce it, it’s now purely more of an asthetic section.

Still needs finishing welds which I’ll do later. Now onto the second rail and removal of the remaining floor pan.

Happy days.









Link to comment
Share on other sites

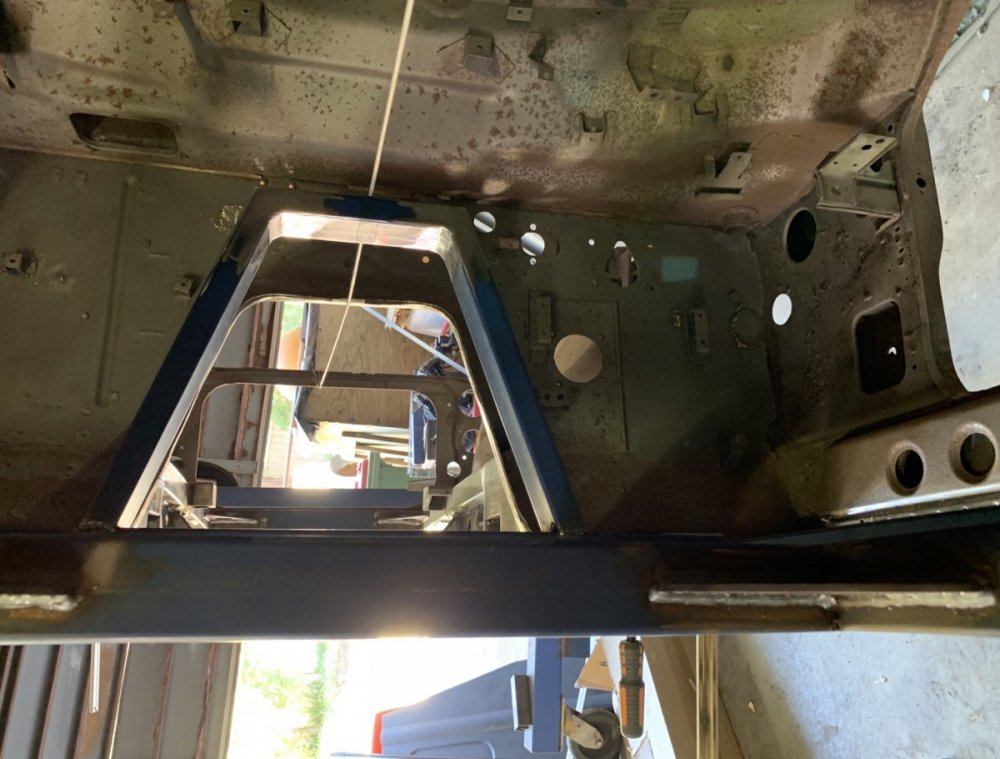

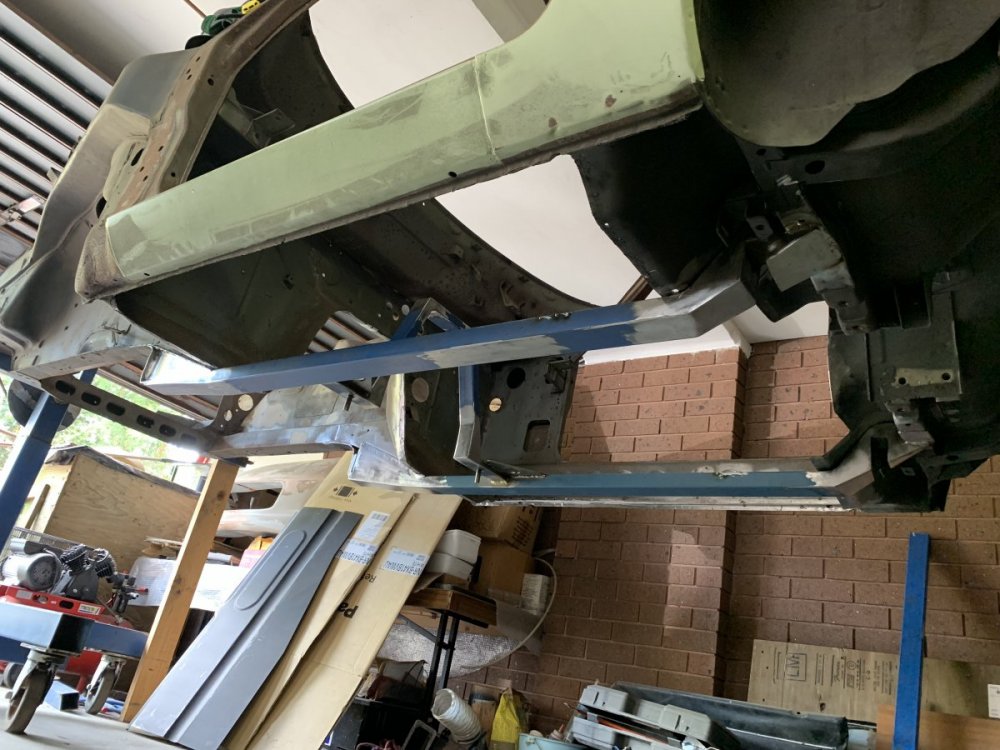

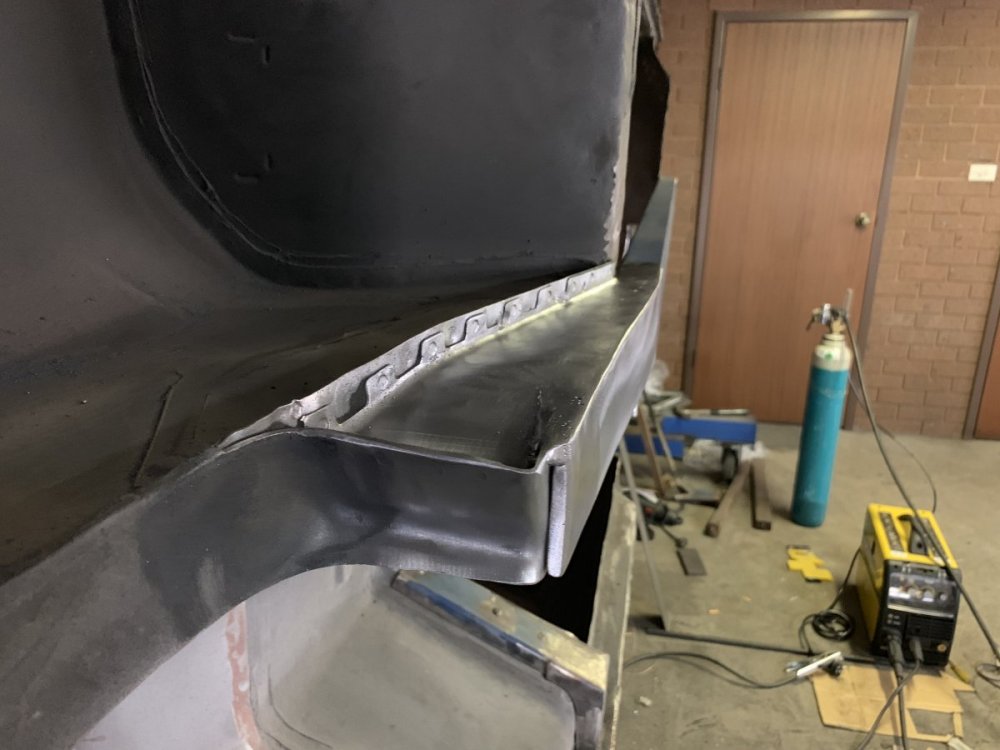

Rail #2 underway

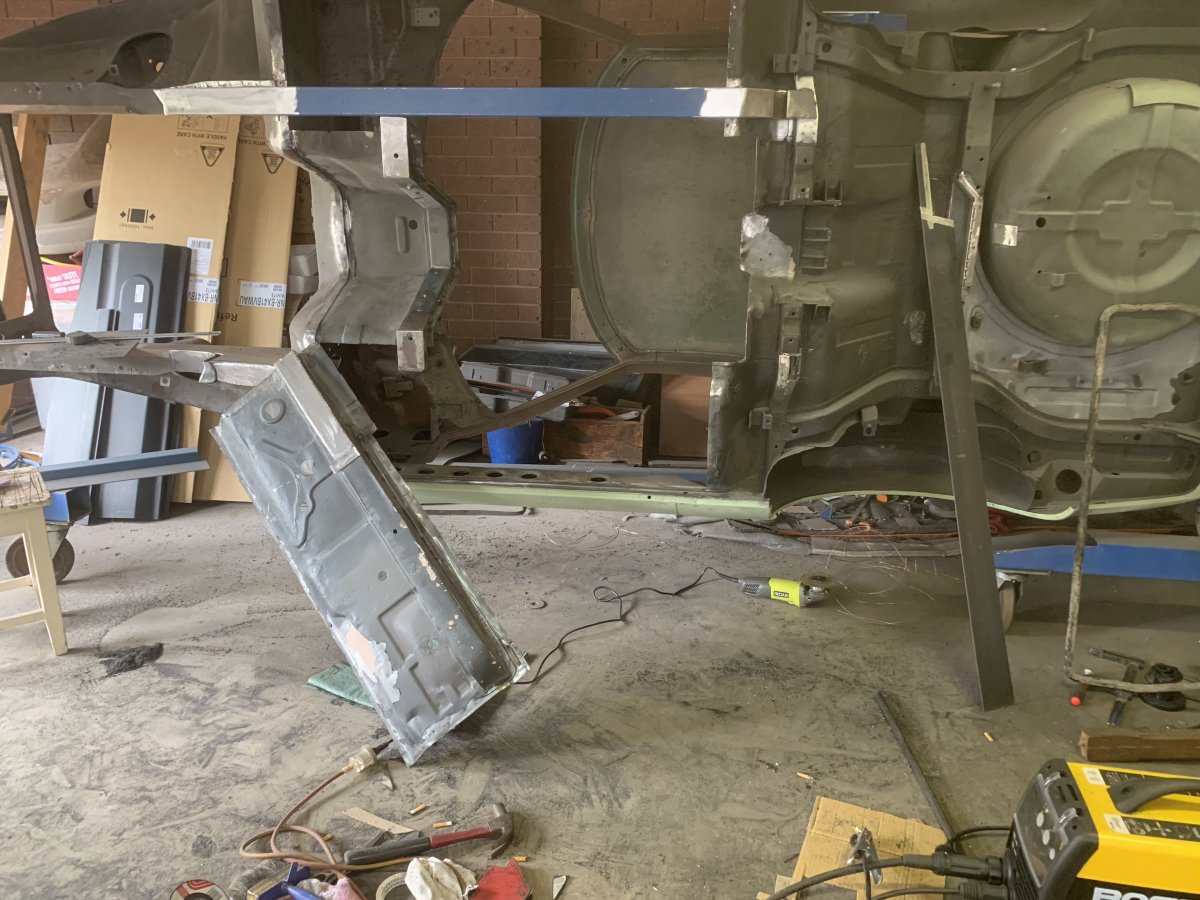

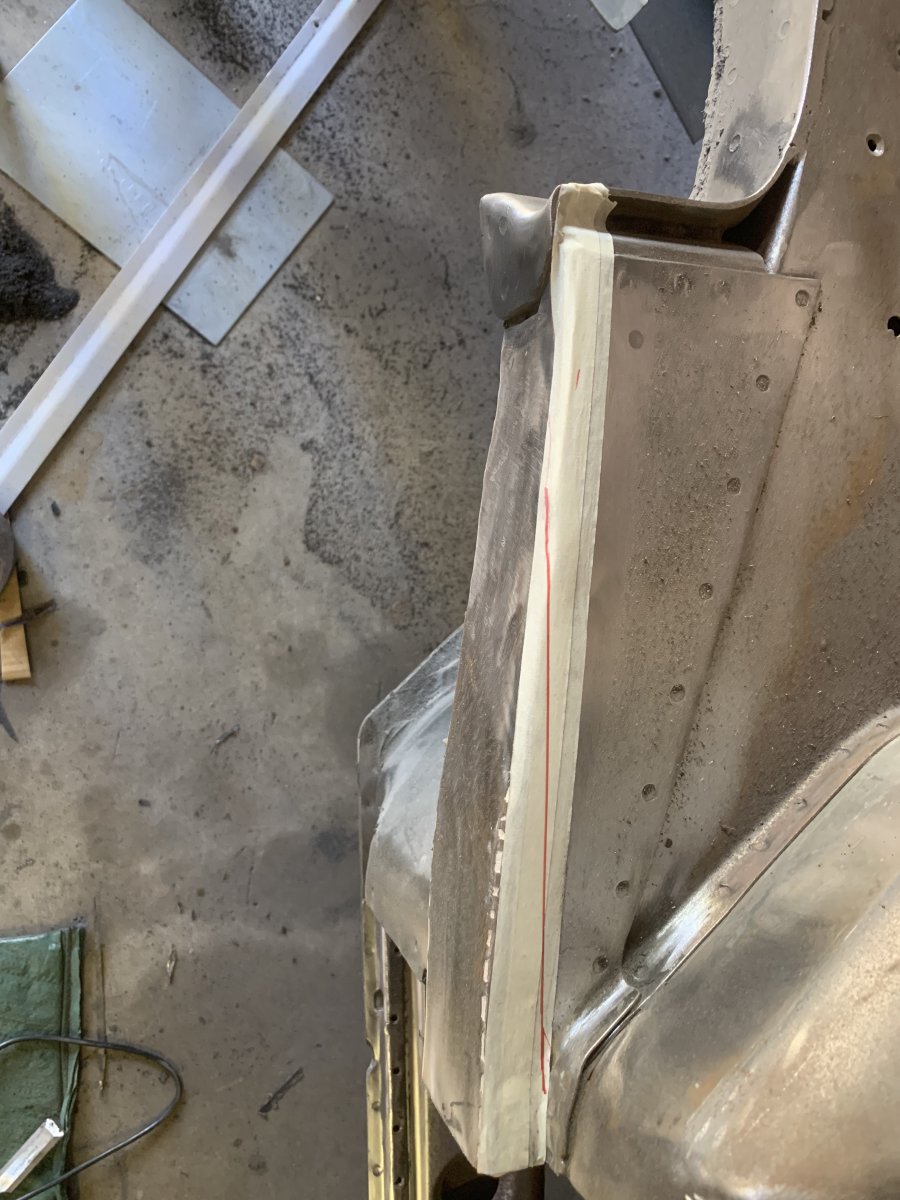

Removed drivers floor pan, de-spotted and cleared all the overlap metal to adjoining sill, front firewall and rear bulkhead

the remaining tunnel section with the reinforcement will also be removed and replaced along with a new horse shoe reinforcement.

Photos unfortunately don’t load in correct sequence







Link to comment
Share on other sites

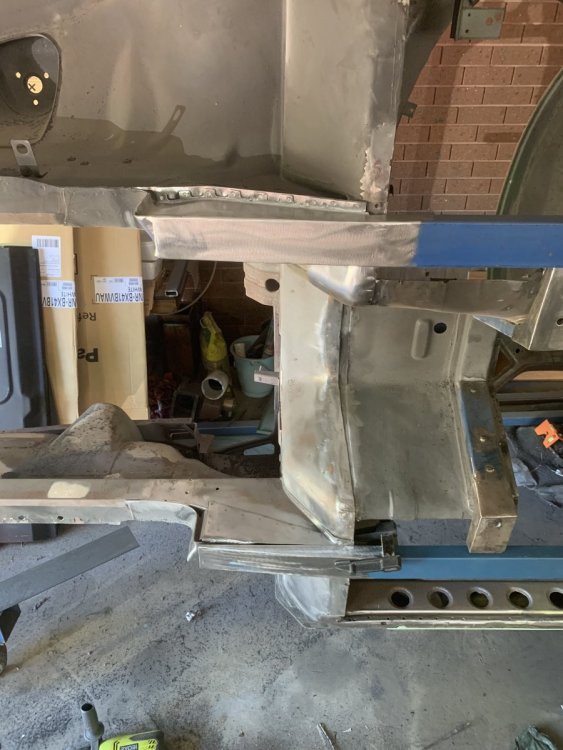

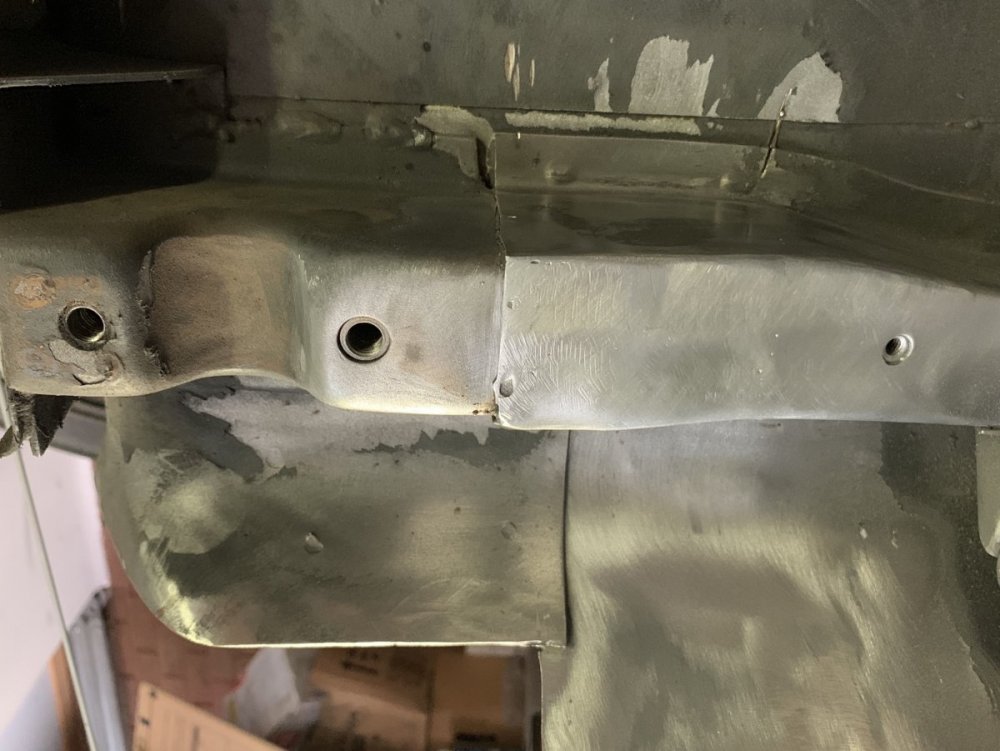

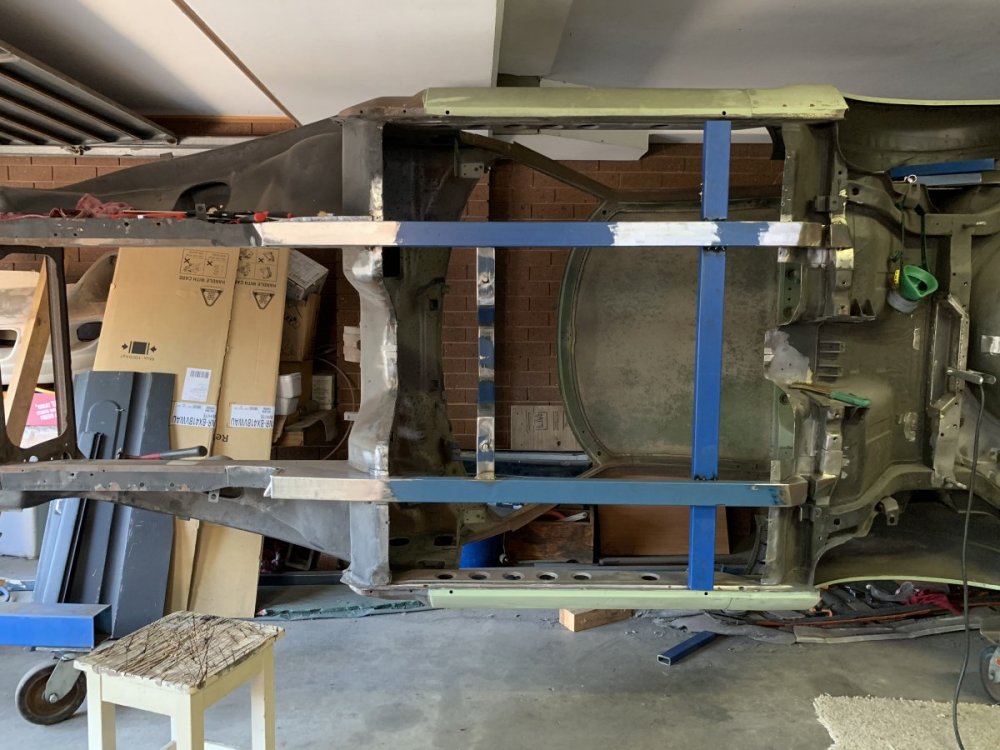

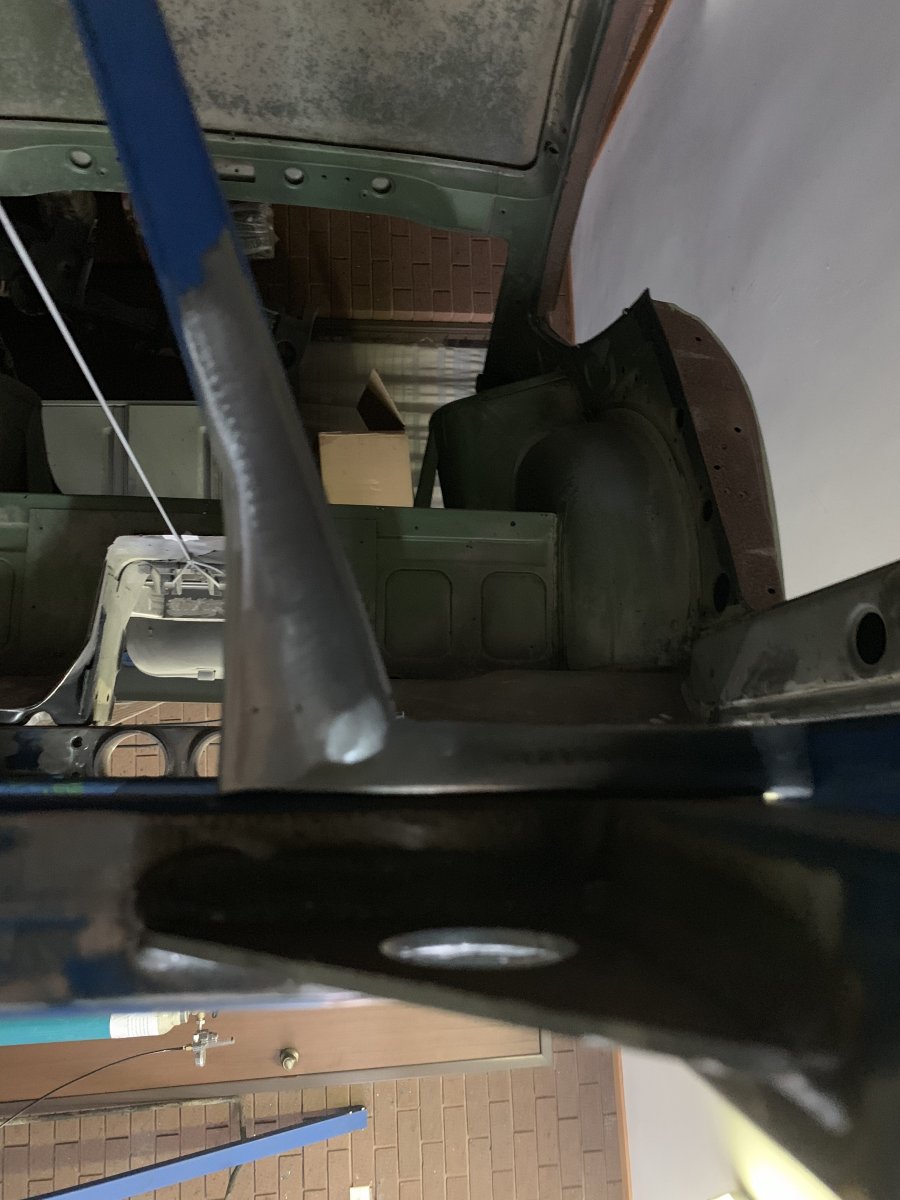

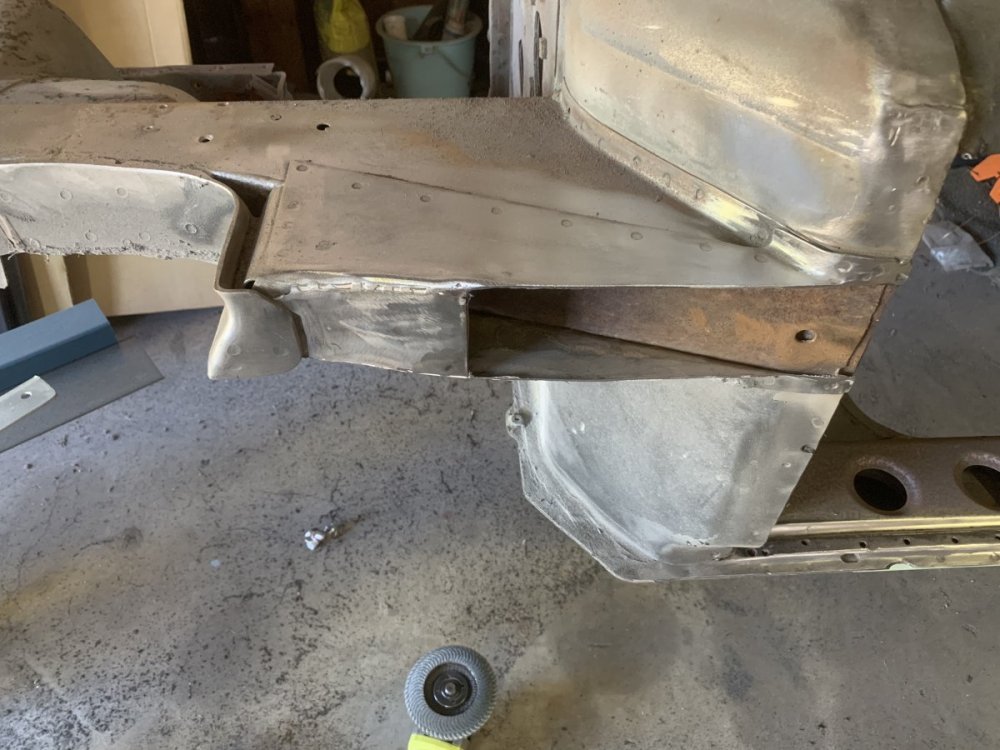

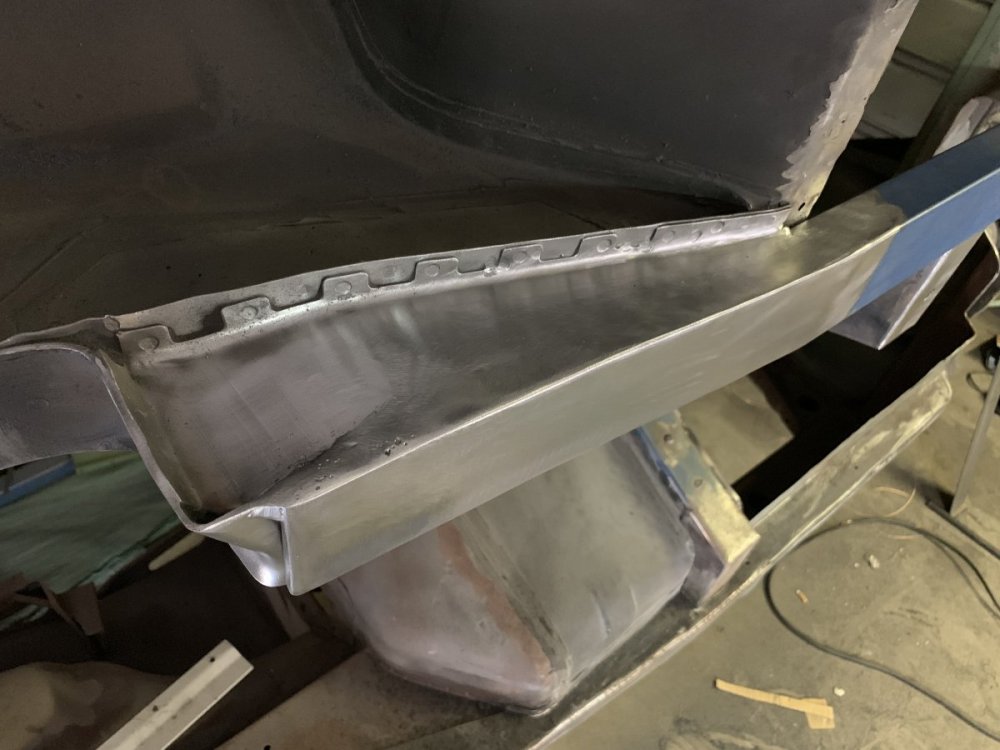

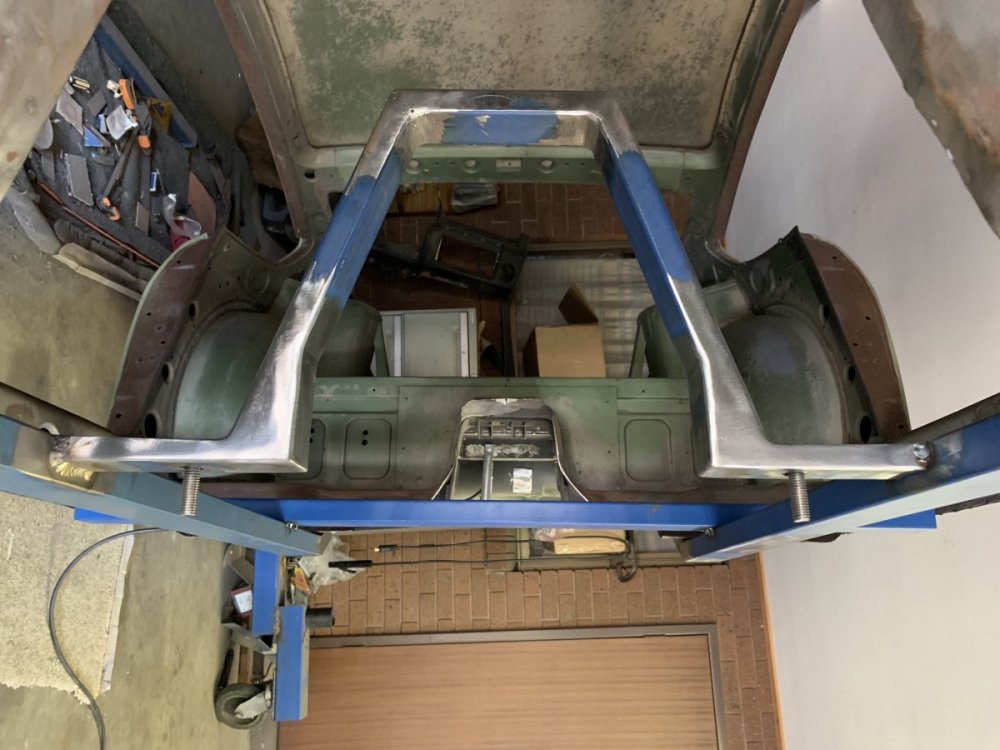

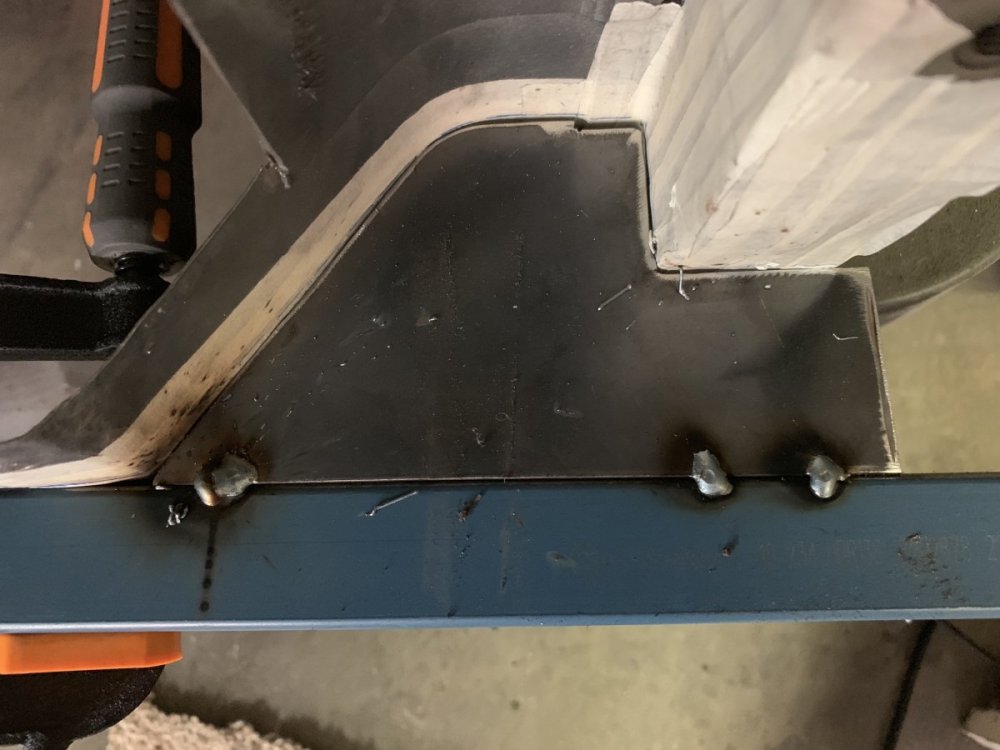

Progress on drivers side rail today with attention on the rear dog leg extension

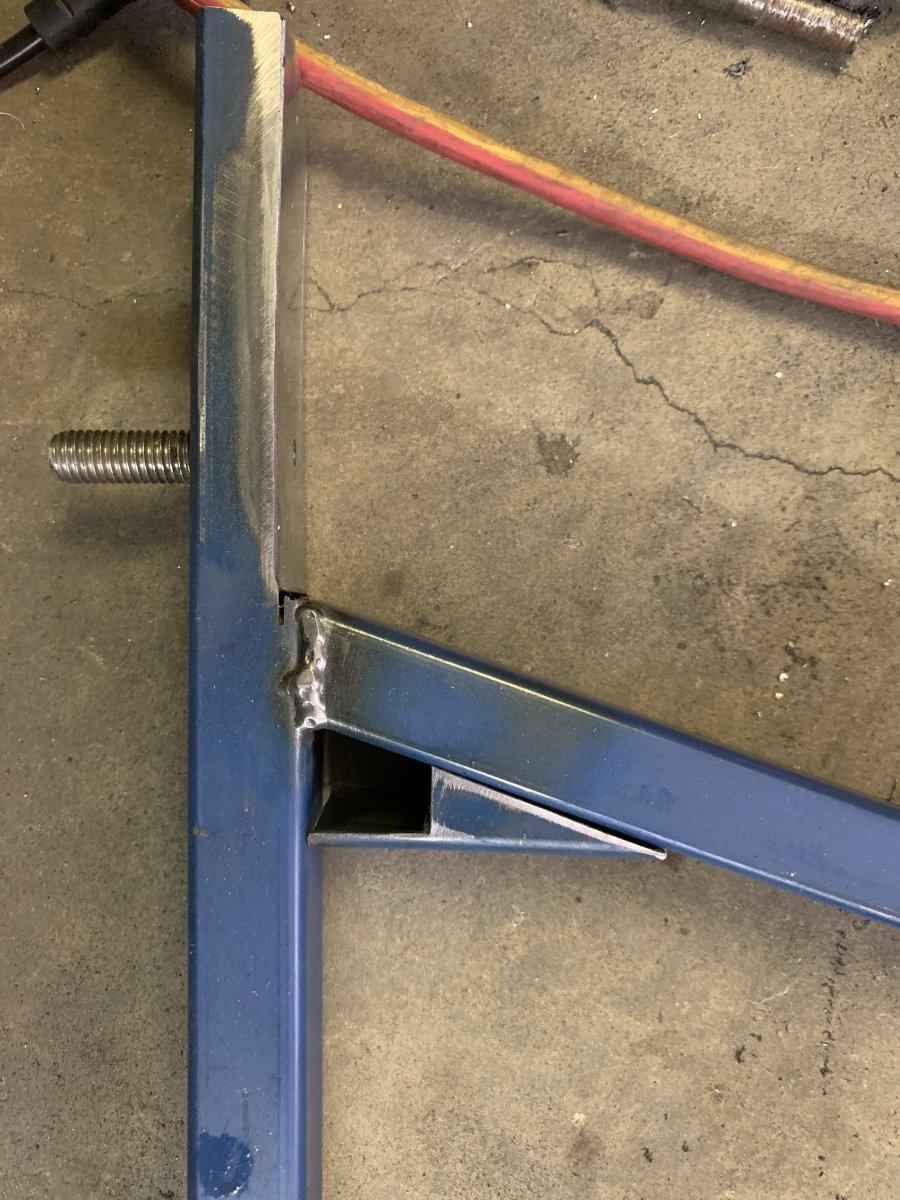

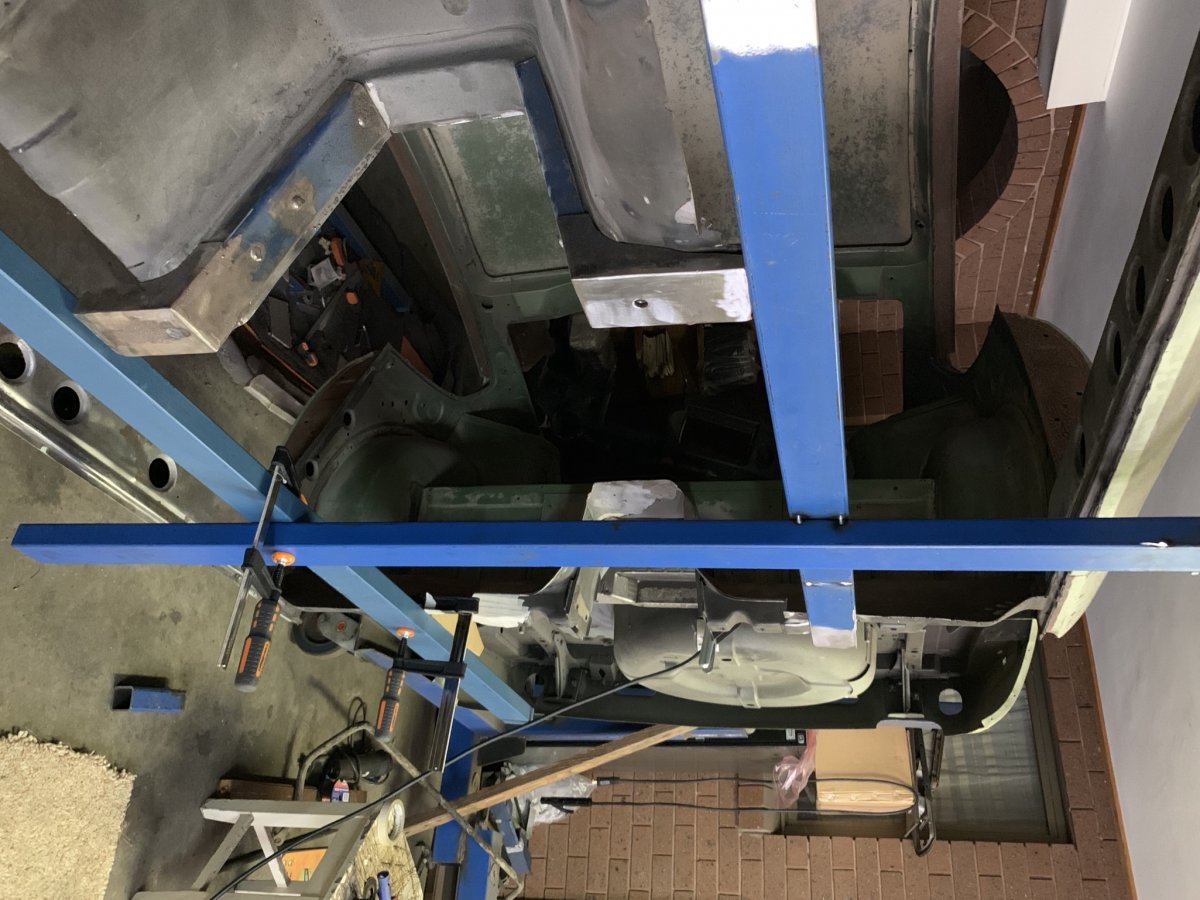

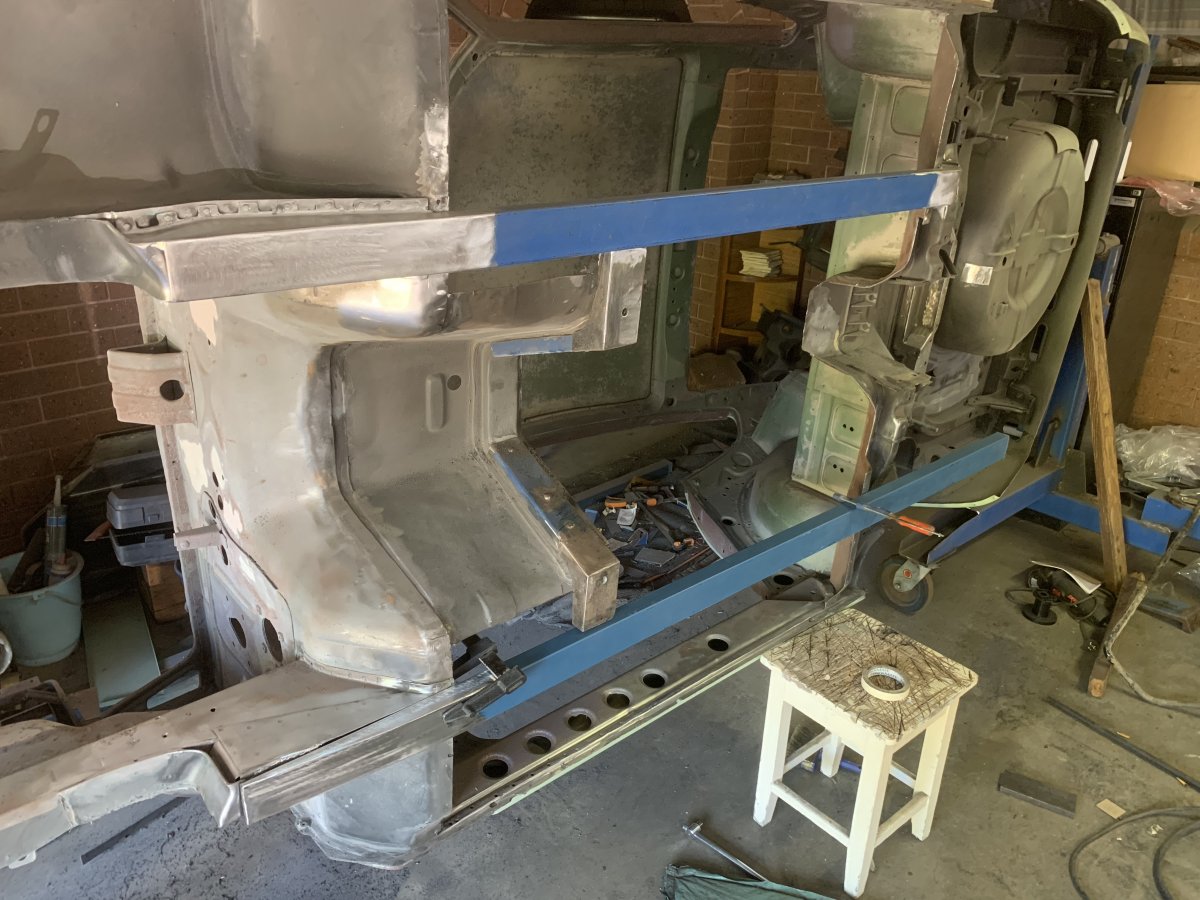

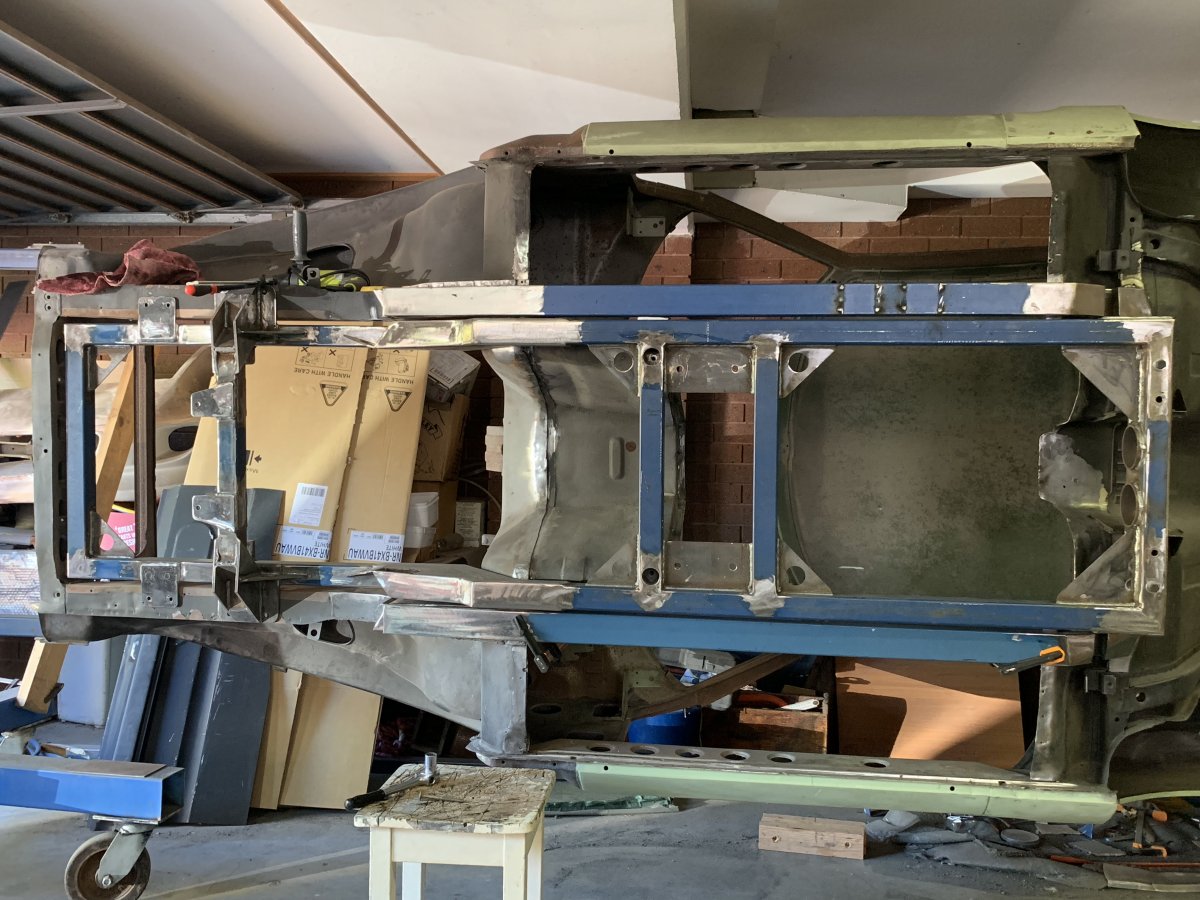

All in all going well, checking the geometry, I ran a length across them both and then measured the distance from each sill, each side has a gap of 53mm and are squared and level.

Hopefully I will get the chance to finish this one off tomorrow before I move onto the floor pan and trans tunnel.










Link to comment
Share on other sites

7 hours ago, peter t said:

Good to see progress John. Are you going to cage the car as those rails will have no crumple factor?



Thanks Peter

Crumple points have to be added fore and aft on each side of the engine cross member still

No internal roll bars planned, but a reinforcing ladder brace between the two rear shock towers is in the plan

Link to comment
Share on other sites

Nice to be back Simon

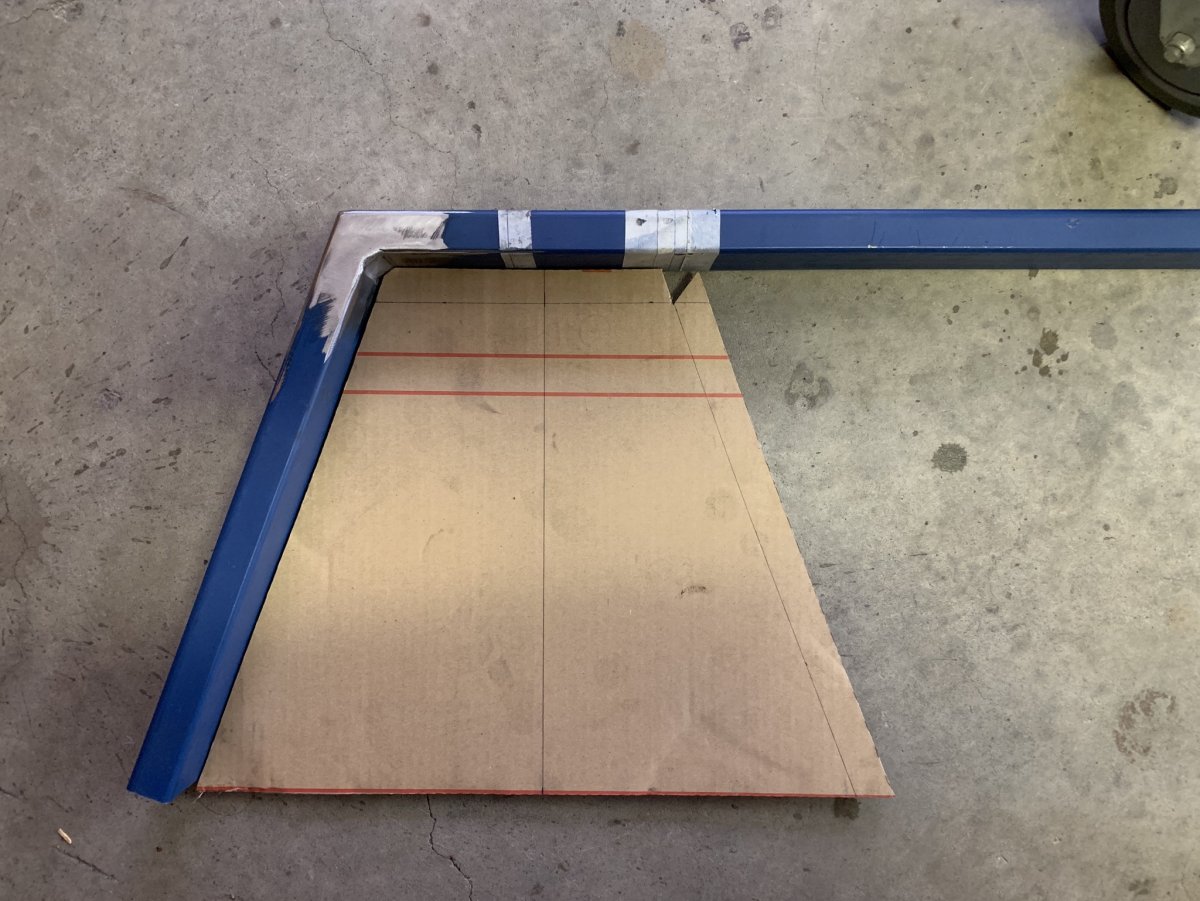

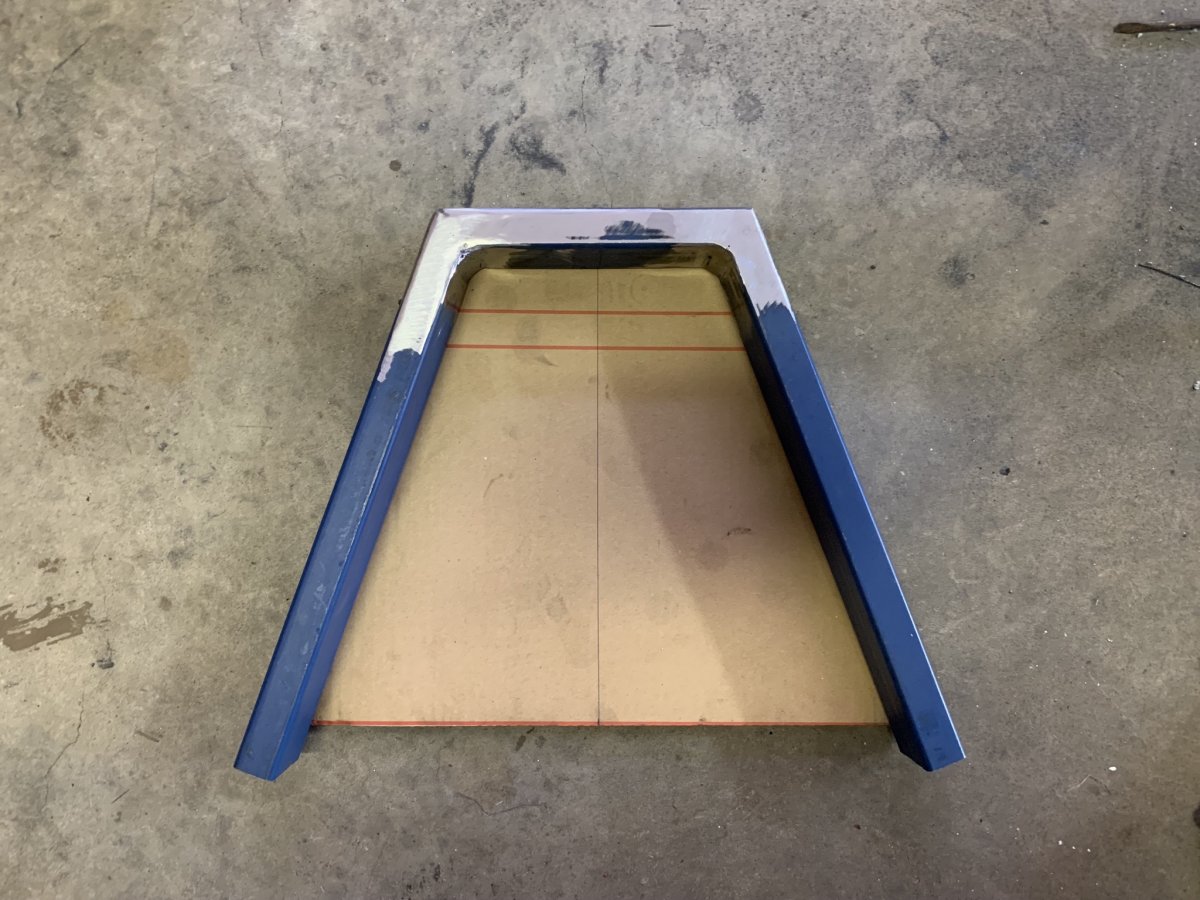

Another day of fabrication removing the remaining tunnel section and fabricating a new cross support.

After centering all up I realized that the entire sections are not symmetrical and are off some 15mm to the passenger side, meaning the drivers foot well and gearshift position are 15mm more to the left.

All good, I’m having new custom pans cut, bent and pressed which should be ready this week.

Happt to report, no exploding cutting discs and flying metal this week.

Cheers

John








Link to comment
Share on other sites

Well that’s it for the weekend

Ran out of gas as I was finishing off the gussets in the rail floor pan cross member

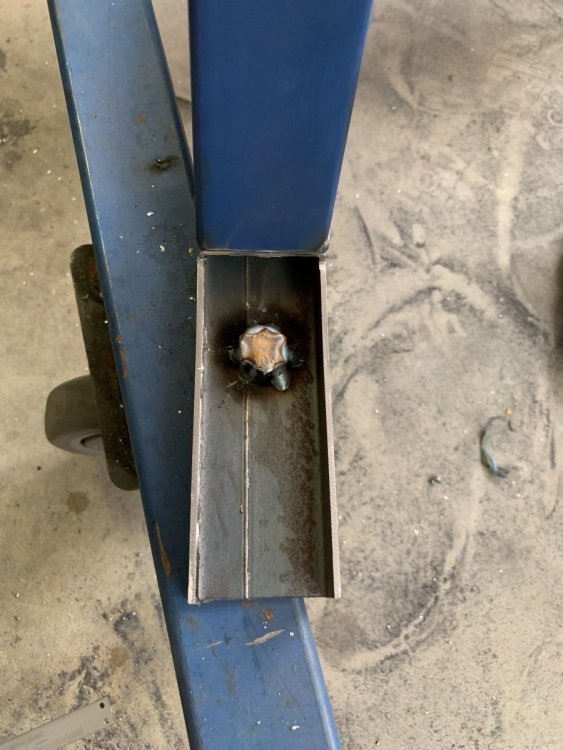

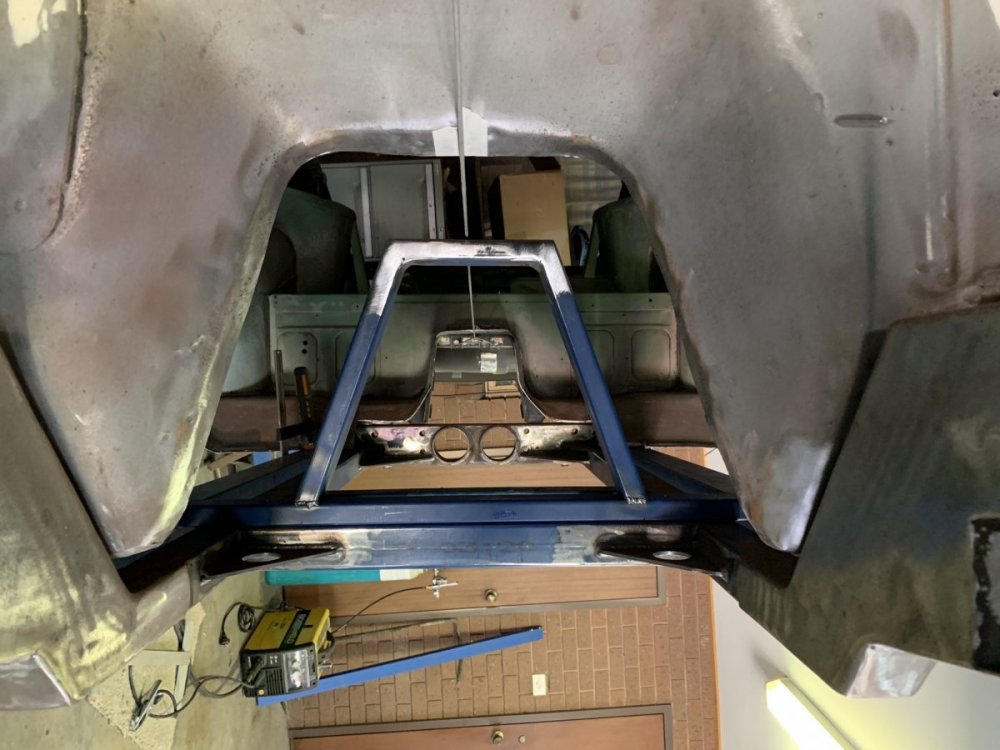

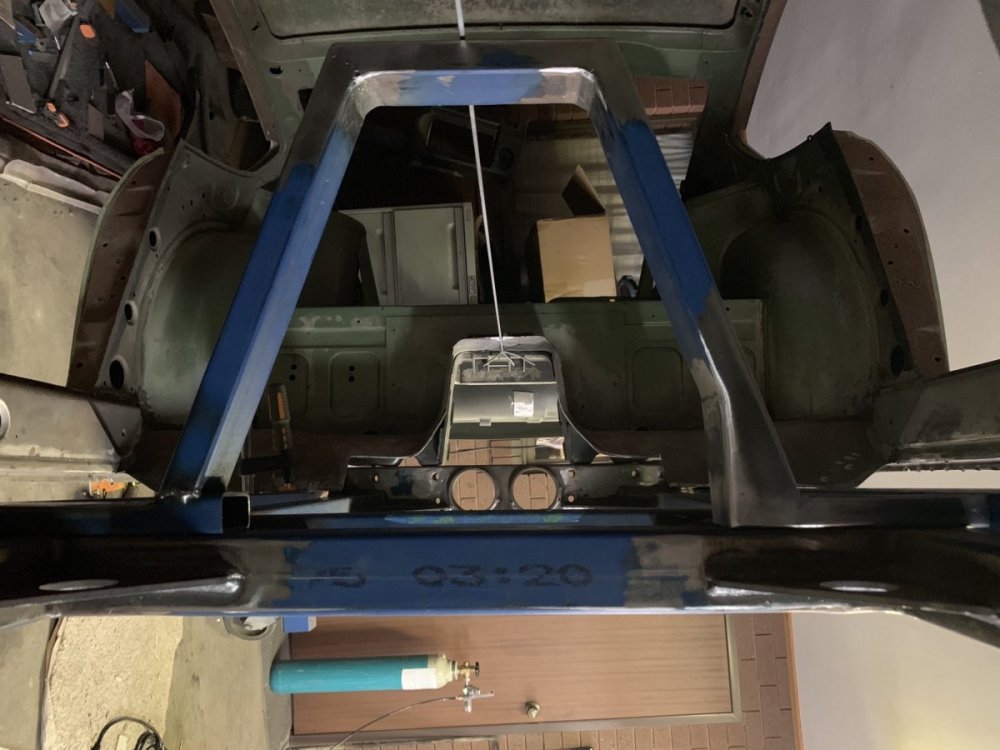

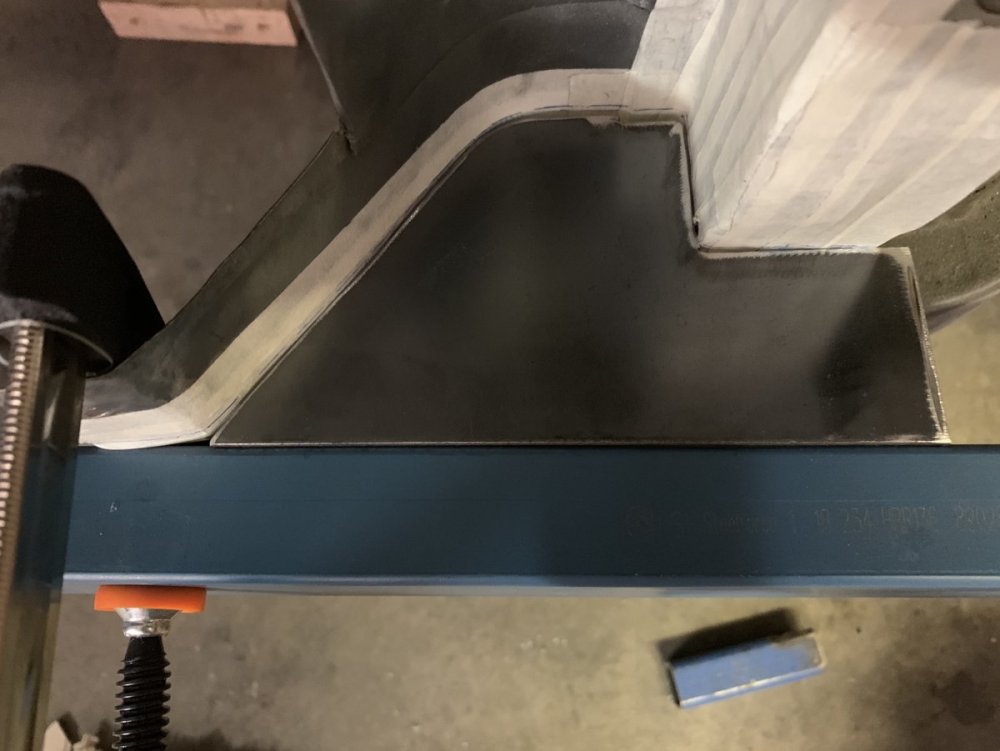

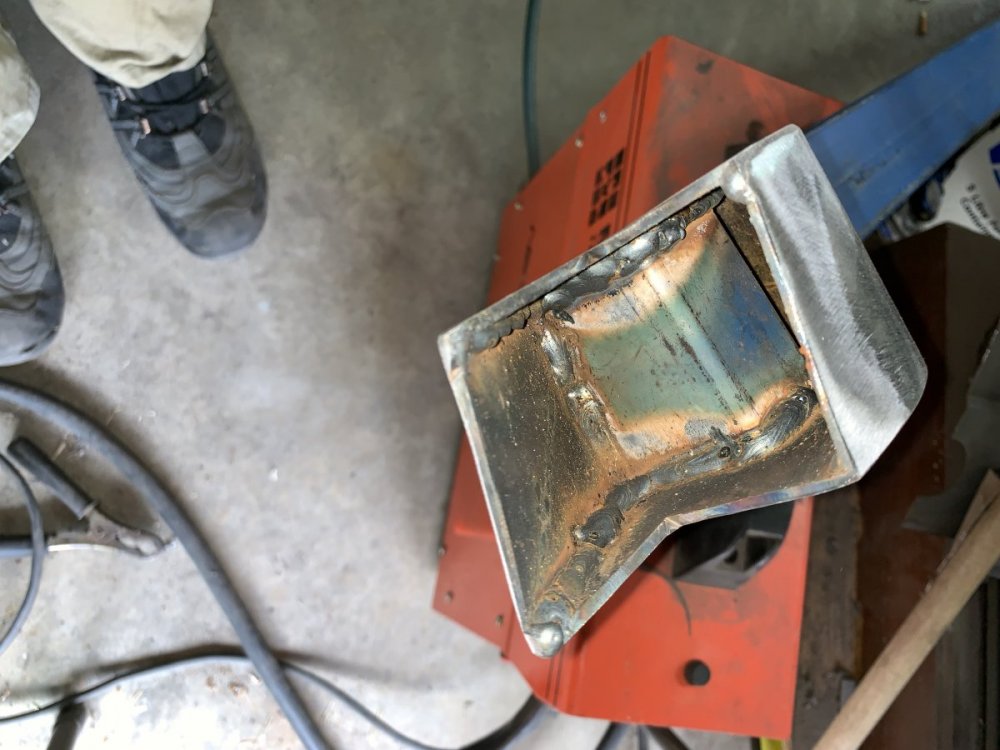

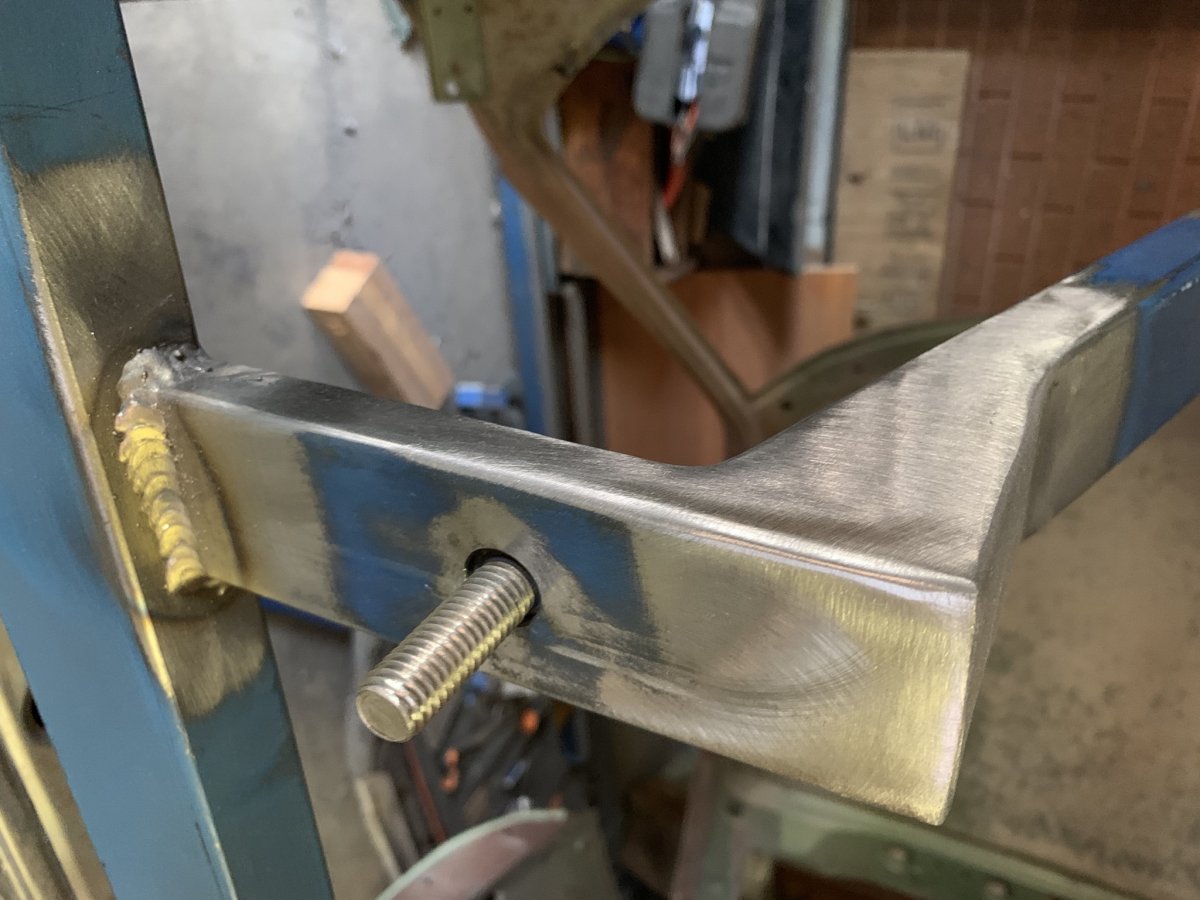

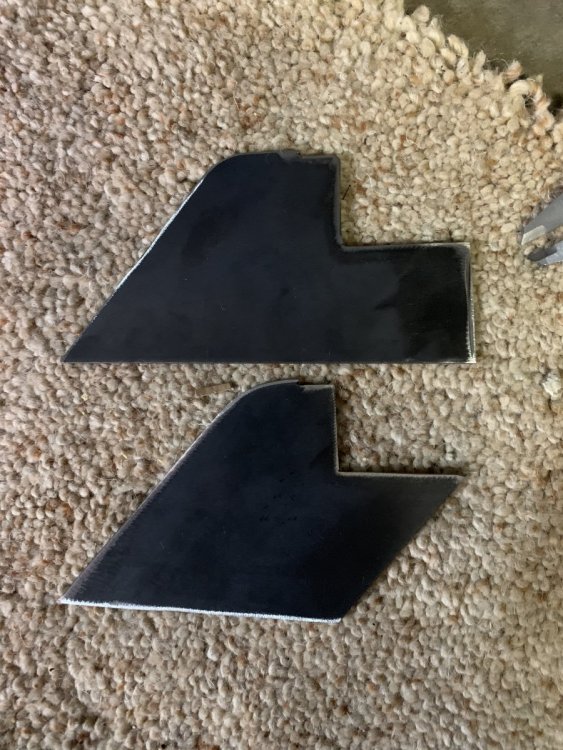

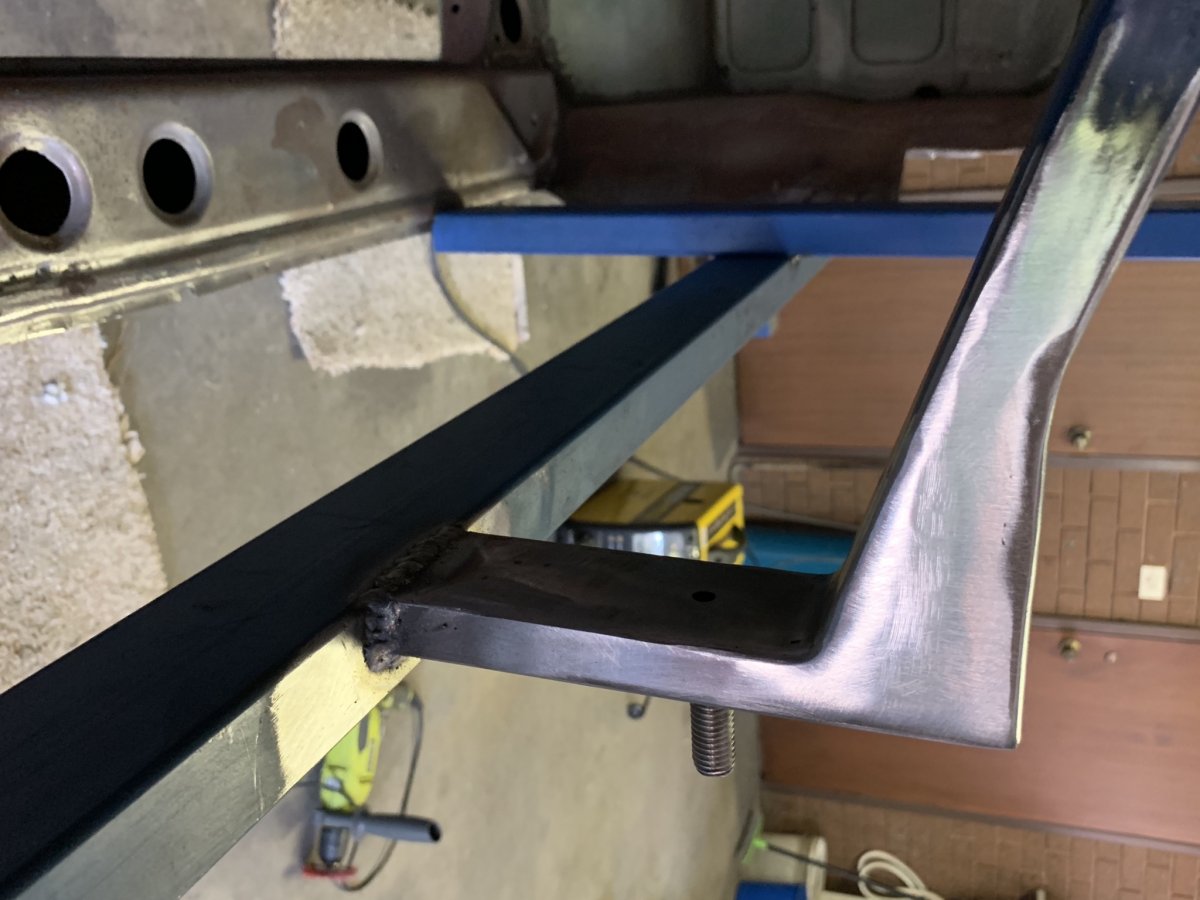

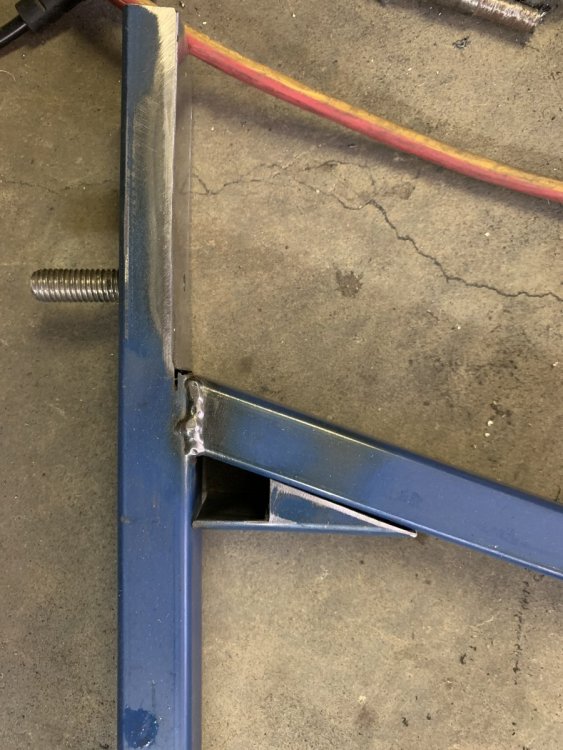

Managed to weld in the ladder chassis pick up bolts, close the ends after reducing the deck height by 5mm and welding one gusset in

All in all, extremely happy with the progress96E1E695-8C6C-49C6-BC4A-BA40E82783E4.thumb.jpeg.d0b4dcad64a554441070e1f27163aceb.jpeg1A35F1BC-B726-4FA0-9D48-1F1861BF3A3A.thumb.jpeg.7d530d62ceb14bfe1ae57079129da133.jpeg



Link to comment
Share on other sites

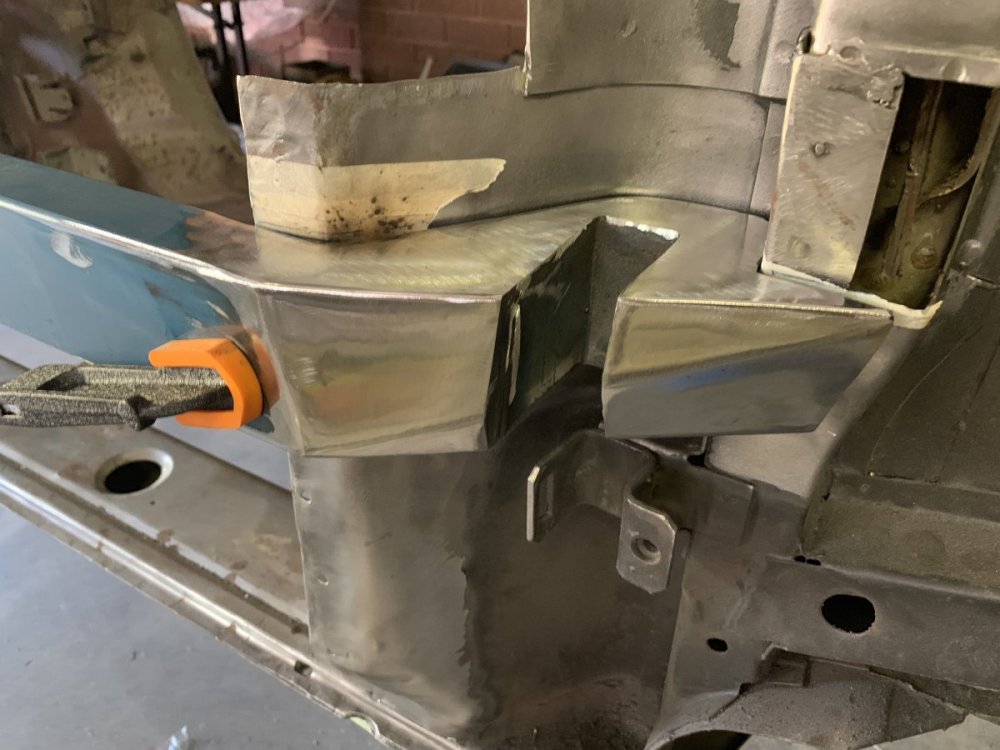

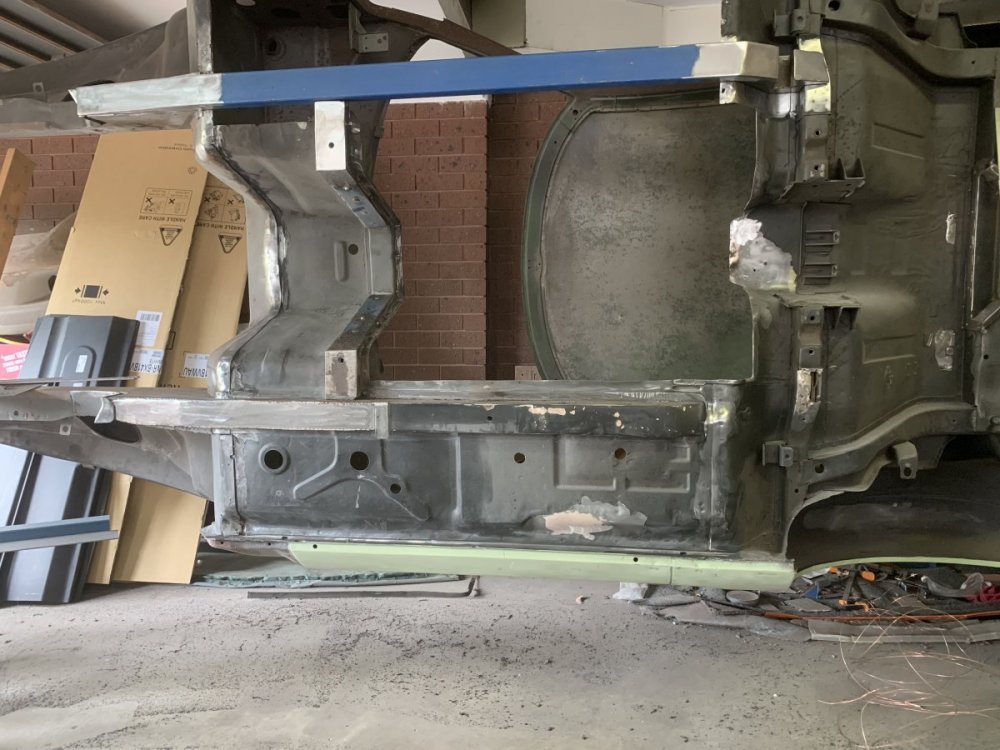

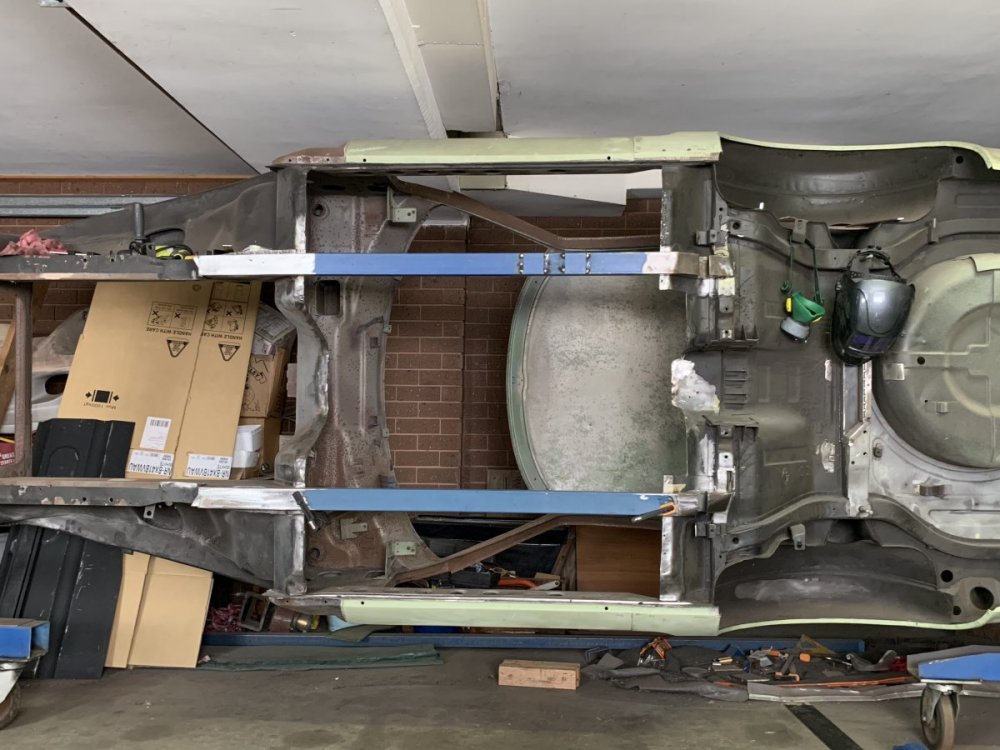

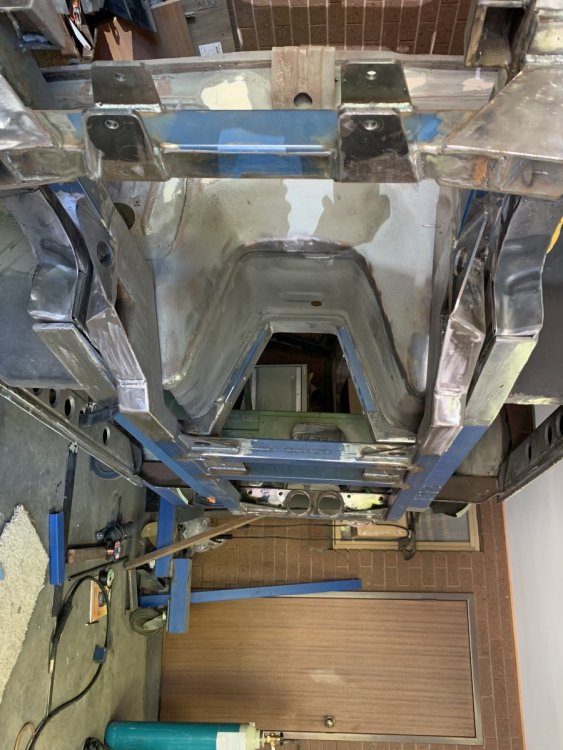

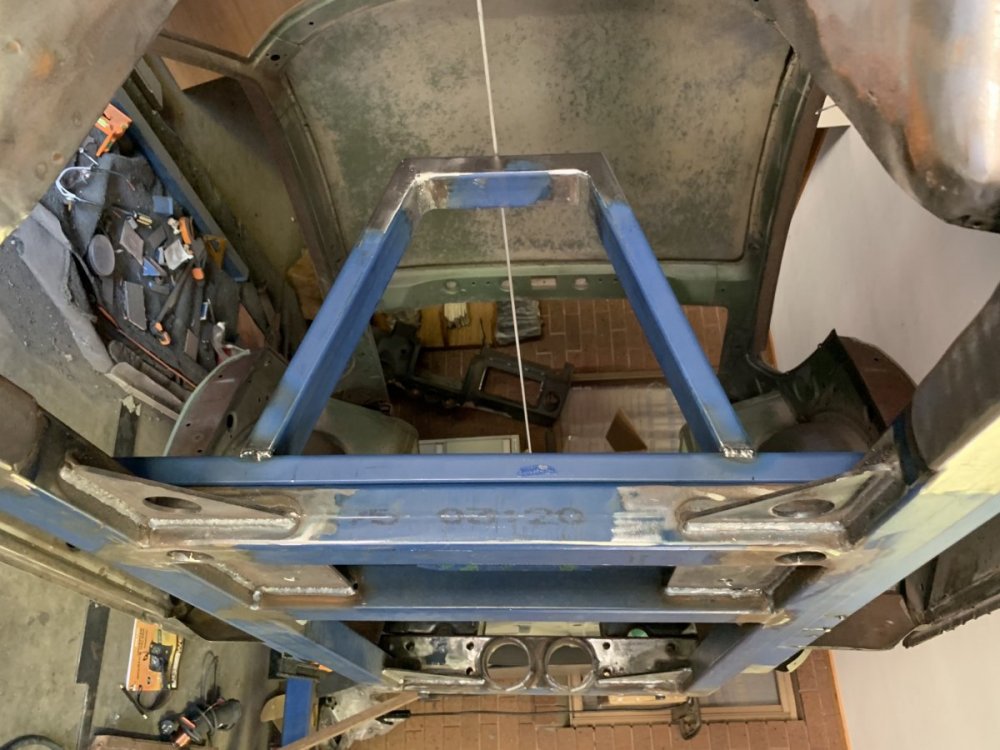

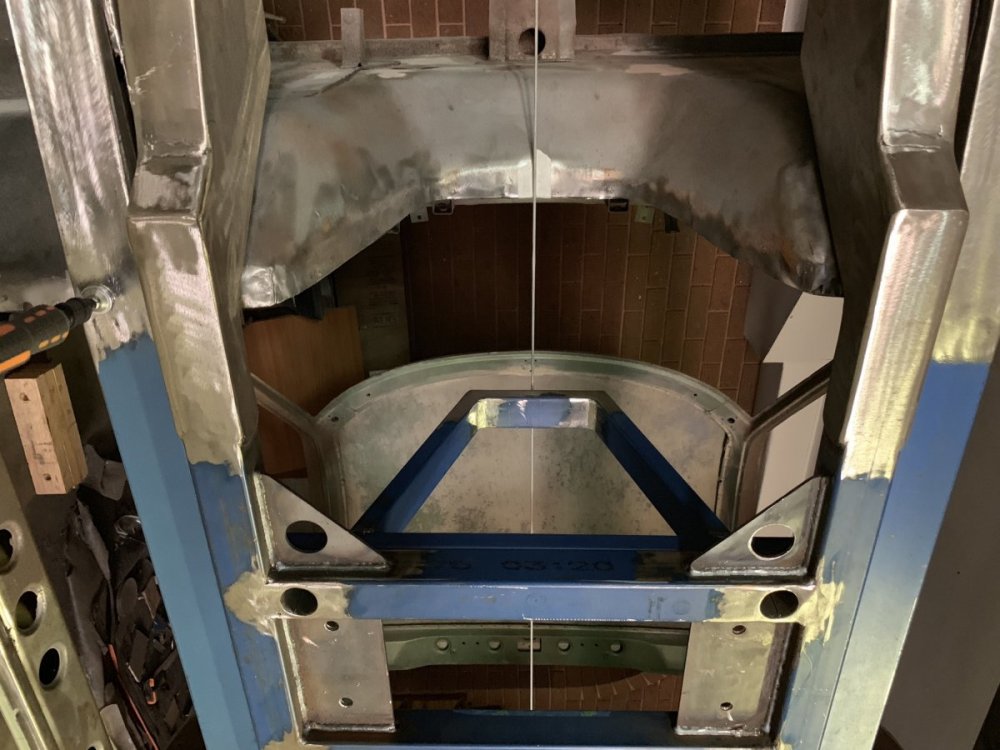

Well that’s the second rail in and blended front and rear into the body along with the (What I’m calling) the tunnel horse show with ladder chassis bolt points

Now for the pans which are almost ready to pick up along with some additional weld clean ups

cheers

John







Link to comment
Share on other sites

Well that’s the second rail in and blended front and rear into the body along with the (What I’m calling) tunnel horse shoe with ladder chassis bolt points

Now for the pans which are almost ready to pick up along with some additional weld clean ups

cheers

John

Link to comment
Share on other sites

That’s all she wrote for this long weekend

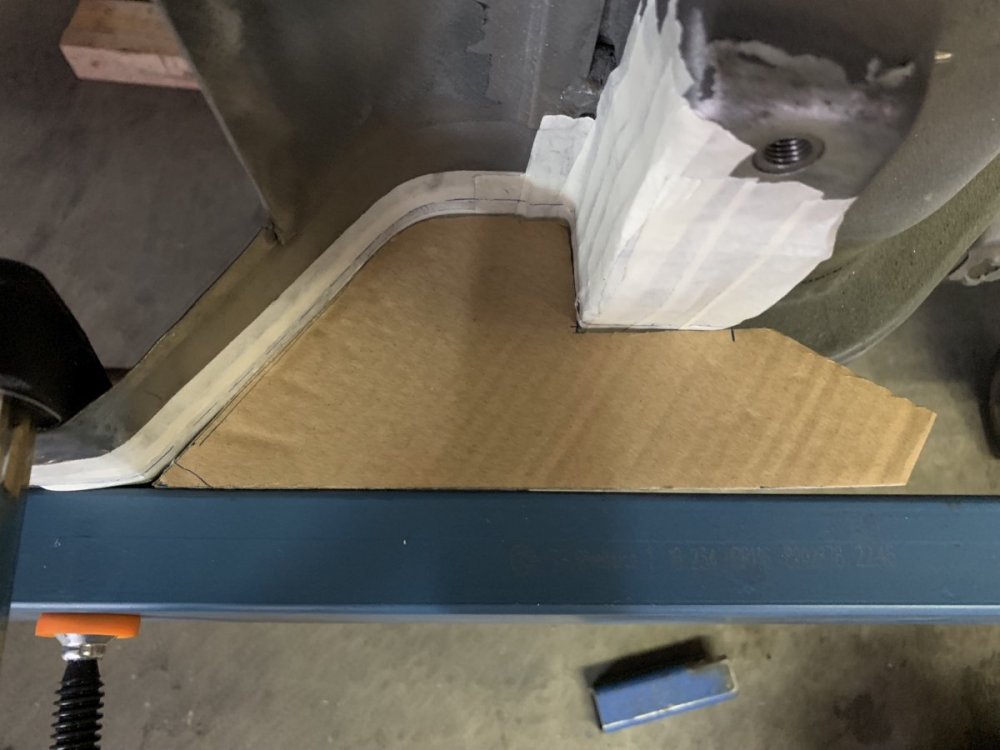

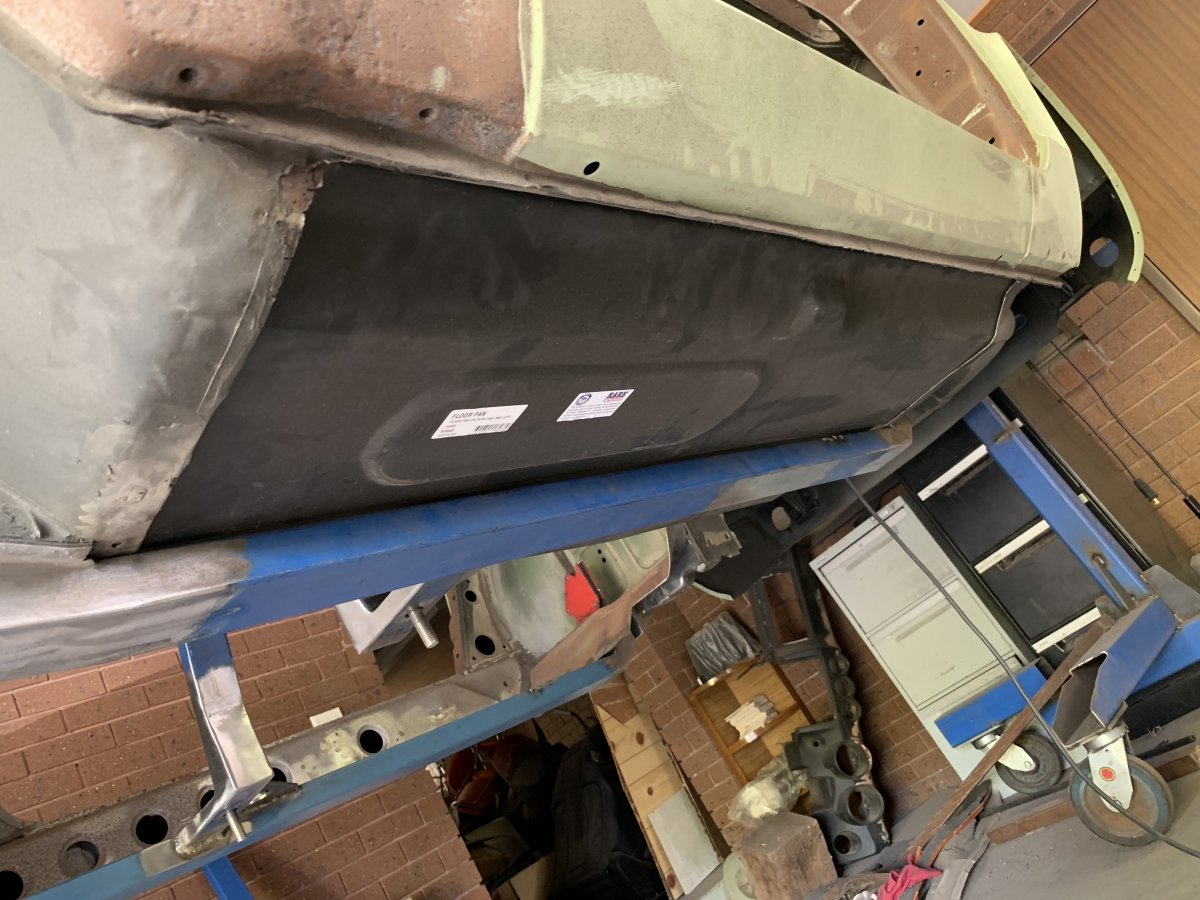

Added some additional gussets at the horse shoe and sat the rare spares pan in just to get an idea how all will sit with the new pans on order and am satisfied all will line up exceptionally well






Link to comment
