RedRBZed minor rust repair...


Recommended Posts

So, after 32 years of countless track days and upgrades to every other part of the Zed, it was time to address the minor rust problem.

This will be sorted by Lachlan of C.A.R. fame.

Along with the rust repair there will be a new 5 piece G-nose, reproduction headlight covers, fiberglass rear bumper and factory copy rear spoiler.

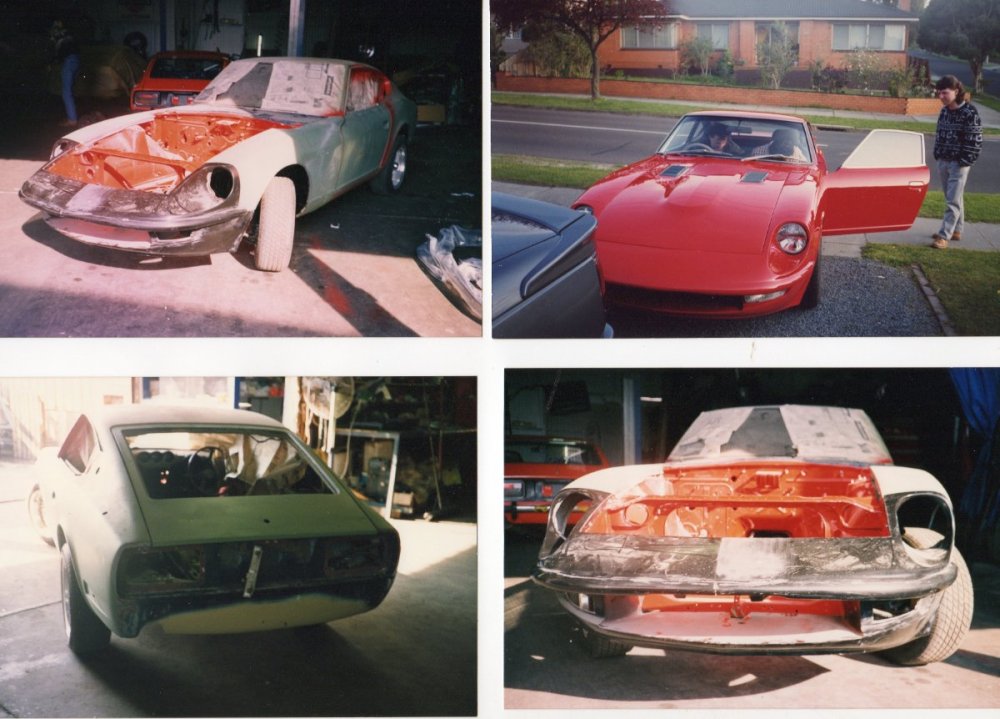

The Zed had a back to metal respray originally in 1990 (the only time mullets were fashionable), see pic of me in the car and mate with genuine mullets.

I'll hand you over to Lachlan to continue the minor rust repair journey...

Zed1990 (2).jpg

Link to comment
Share on other sites

A few years ago, Mr. S asked me about repainting his monster of a Z in the future, and I said I'd 'definitely be interested, so let me know when you are ready'.
Last year, the talks got more serious with Mr S wanting to add a new G-Nose plus other parts to the refurbishment.
After waiting an eon for the new G-Nose to arrive from Japan, Mr. S fitted the new parts and dropped the Z off at my little shop once I had room.

The brief is: Minor rust repairs and a full open door respray in Red. Plus some other bits an pieces.
This is how it arrived, so on with the show!

BfWG2s6RecK9KflJ34JYhZoqc0Y8zDC1Czd06Bhh

od2B8AK88NdX9FxdGv7wZxp35MiBqC3ZX3QGh8YI

That large rear Wang is going...

Link to comment
Share on other sites

According to Mr. S, the previous owner was an 'interesting' individual and had some strange ideas about the Z - which included drilling holes in random places...
These had been welded up when it was repainted originally, but unfortunately that wasn't done quit well enough so rust had started to appear...

LH rear wheel arch:

a1KQSXsnFLsaSucQrGZYImUK08gPPlDNi9vAy51-

nUmQvtBZIedbP0CA3-HJNFoV6KWxdX2jo07wE29U

3i61YbVJaBe3C_3JS3MhZwHJclt24XhvrMI3I28T

FF8K7Nsb_c-1BpBTXYUdAIucTbZhVxW4cXL9ZPzh

RH rear wheel arch:

M_moY1fHhJq19LCZY8jmutWjFf3o_0DkOUAcKPYG

1Y0uAJbomlKEtVzD1ZOc3KWLxWDQhsT1Mao8QGPJ

All cleaned up inside, treated and painted:

dEtaQpvFTMIQfb0Cf7DF0tbhOHNvkDLLDHl1HH-L

Link to comment
Share on other sites

Doors were next - typical rust in the bottom corners, but they weren't bad enough to replace the shells with new ones.
Sections were cut out, inside media blasted and painted, then new outer skin sections were fabricated and then welded in.

xVtmzE0mzUgu1TjtmXerIbcpvsePb2aqUBdFv6JJ

8YyzOkRrdOmqTrCLOPM3TfF_8kSlGdQy6SRUo_Ee

crUlH7kTSb84itkvvASVb3pc5Xlg9l58PuDOKagL

DMQiv8vcnxaMhACDbVtyEUsQ_NLvtsmrEZmWWaZ9

LwmOltO3-6VHYyYBeBwIlyfTe5k6labWG46VAKxo

gIt9Llq_ctZKGoSdMEMt5ni7JmlI7ewEfslTrPOk

0KvHlBuC7Lkwohb383E1vMMmhac6HJiNC3MoxxRi

A9rQyQNoyPidihvcMQPSigTsHPTKufHUNMXhs2pN

Edited by C.A.R.
Link to comment
Share on other sites

Mr S wanted his big Wang removed and the smaller sports option style Wang fitted instead.
We removed the big Wang only to discover many, many holes, filler and rust:

SVZri4tLIixTZunXJR-bdiW2FPWvr6aqZVvoqdJC

fCIF-6BX-F2eawE7TJ7rmUKLMleVTdsNjvwXHh2qe

So we decided to strip the paint and filler off outside:

HVXIqAEDGxlGjIRZhJHVg7jlcUpCrMRJT3uMnkrU

Oh dear...
Rather than try and weld up the holes in the very thin (0.7mm) deck panel then spend hours panel beating it straight,
we decided to make a new deck panel from some new 1mm sheet steel:

Q_oWpoE0iiXL4pPQ44SnaqUHtD-ZUL9zoWykJ3f5

z9rCMTs8hwfERYiAvyiTb53xy5jTcm0cOX5YhtJ8

_7QKSe_1DfNyopEpdwW4f_-Ea1b7ndkBEYpm9ep2

vNYc30gHPOjnaZjZVnWJwd3YCeBUy-rclHwSl4ZD

Link to comment
Share on other sites

Onto the fibreglass repairs. I little bit was needed to all the FG parts - mostly reinforcement.

The bonnet was an issue - it's a FG item that Mr S glassed the vents into and had someone paint.
The paint job was average and it had to be colour changed to Red, so the only option was to sand all the paint & filler off and start again:

pxcsbYZfgzIys7AimmckGT_mvjui0pwNljrE5vlE

M81qf6_IA0HscmxNBUEm4C6is1KT_Q8a0XINXAu8

keFKocT4T6gfQz6lJBWJnDBBA7UZxU3aTSR2sNL7

1HktkwbZJHKUoOXsTAKTRKJ0xFxaPwFvuQbF1VNr

It's now ready for paint prep to begin.

Edited by C.A.R.
Link to comment
Share on other sites

  • 3 weeks later...
  • 4 weeks later...

Lots of fettling, farnarkling, slapping & spooning, the body now has 4 coats of primer on it.
Unfortunately due to circumstances outside my control, we had to paint it in the workshop - not ideal but it worked out OK.

8eqexnkWuTp1OqKhFnl2cA7wQxKDxzSVHYi6wyST

Y-QLY3uW7sy4Vl9u3s5YFBI1i5mJ7YqK69PdcB7s

Now to 400g the door jams in preparation for colour...

Panels are being primed shortly, then the doors & guards will go back on.
Then we have the fun job of 240g then 400g sanding the primer back in preparation for topcoat in COB...

Edited by C.A.R.
Link to comment
Share on other sites

On 11/18/2022 at 6:26 AM, C.A.R. said:

One other job Mr S asked us to do was weld in this Apex Engineering fender braces to stiffen up the front end a bit:

would be keen to hear whether these reinforcement pieces make much difference to driving feel.

Link to comment
Share on other sites

We have colour! Ferrari Rosso Corsa Red.
My camera makes it look washed out & more white then it actually is - I can assure everyone it is very, very RED!

5ixjQdQIzdF1MClP14zYnFQyoGF4PlHrPJA88Md_

jjD4BgNBhioInbciSG6C1kzAfXR9mTOA-CboG1yy

Next the doors & guard jambs will be painted, then they well get bolted on, we'll sand the primer to 400g dry.
After that it goes into the booth for top colour :)
I'm hoping to have paint on it in 2 weeks...
